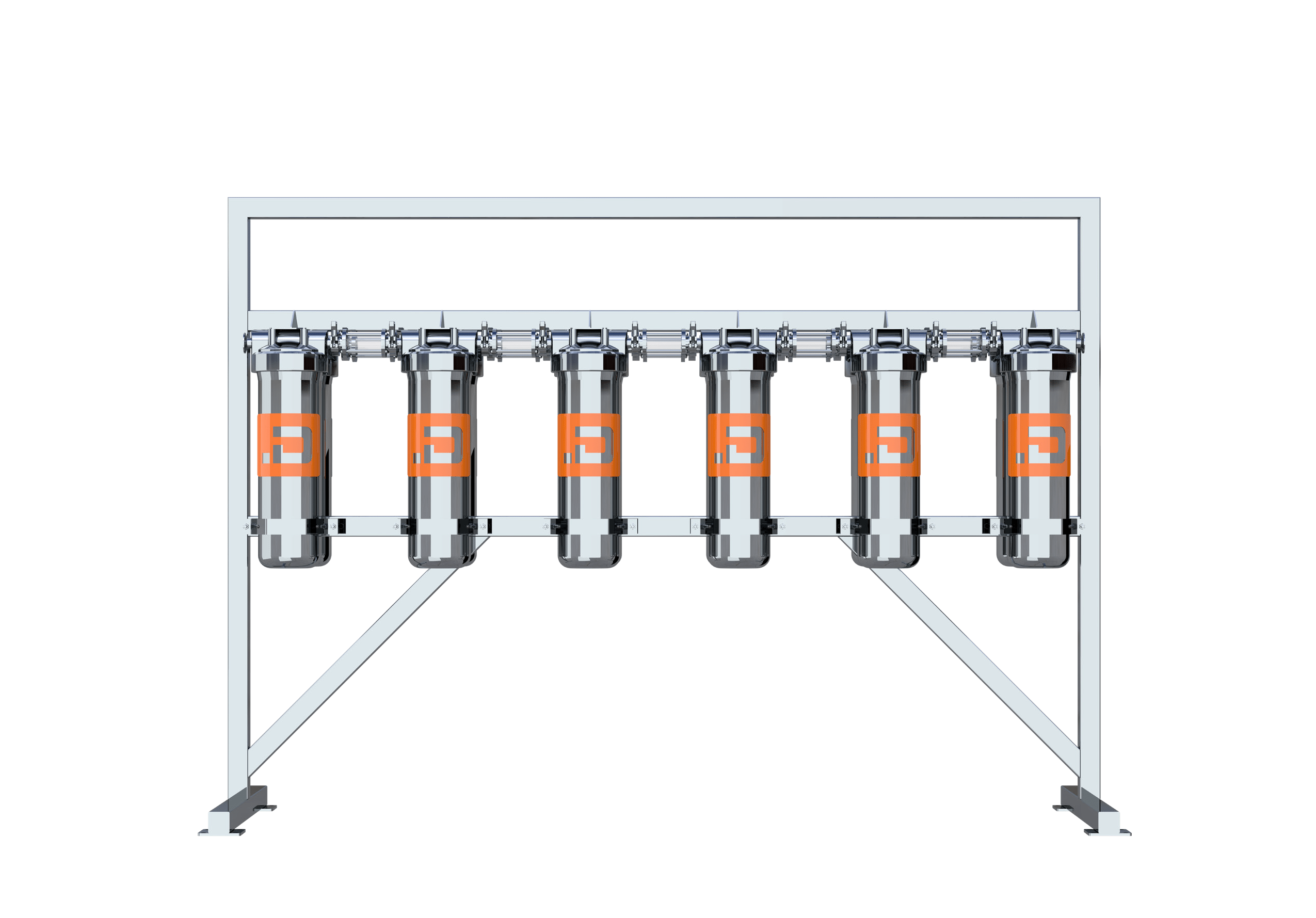

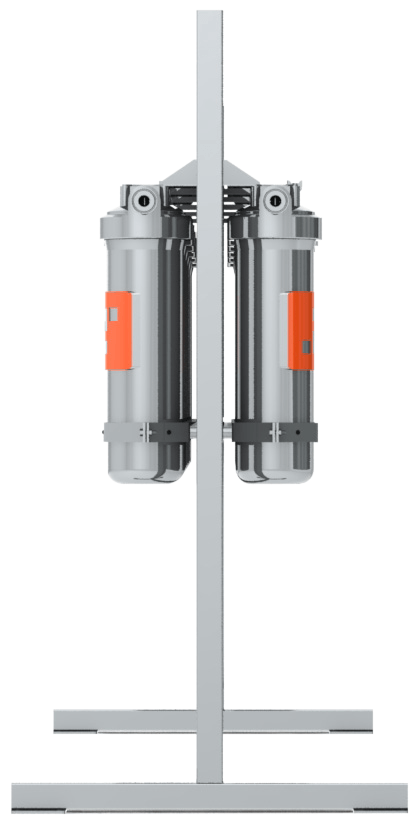

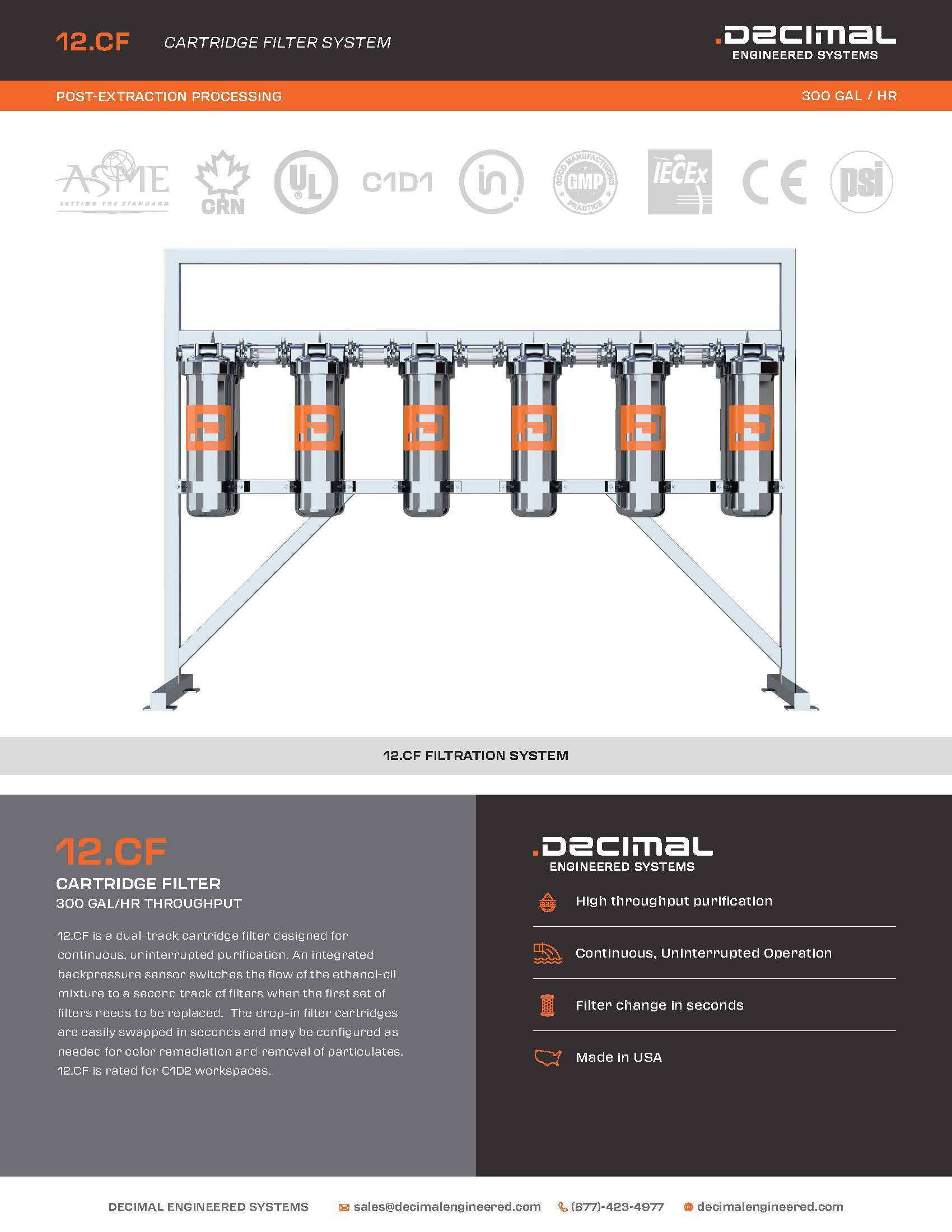

12.CF Cartridge Filter System

12.CF is a dual-track cartridge filter designed for continuous, uninterrupted purification. An integrated backpressure sensor switches the flow of the ethanol-oil mixture to a second track of filters when the first set of filters needs to be replaced. The drop-in filter cartridges are easily swapped in seconds and may be configured as needed for color remediation and removal of particulates. 12.CF is rated for C1D2 workspaces.

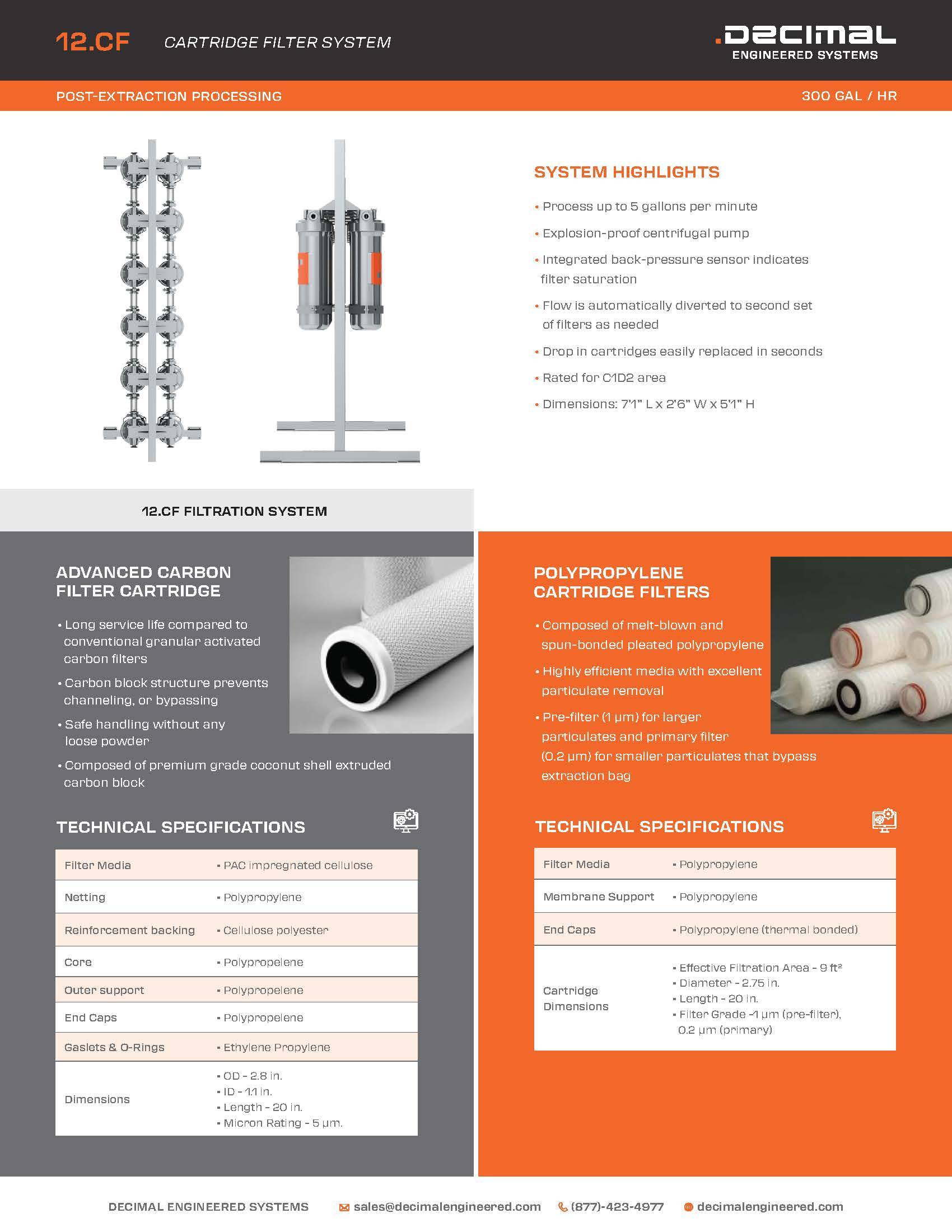

System Highlights

• Process up to 5 gallons per minute
• Explosion-proof centrifugal pump
• Integrated back-pressure sensor indicates filter saturation
• Flow is automatically diverted to second set of filters as needed
• Drop in cartridges easily replaced in seconds
• Rated for C1D2 area
• Dimensions: 7’1” L x 2’6” W x 5’1” H

ADVANCED CARBON FILTER CARTRIDGE

• Long service life compared to conventional granular activated carbon filters
• Carbon block structure prevents channeling, or bypassing
• Safe handling without any loose powder
• Composed of premium grade coconut shell extruded carbon block

TECHNICAL SPECIFICATIONS

• • Filter Media • PAC impregnated cellulose
  • Netting • Polypropylene
  • Reinforcement backing • Cellulose polyester
  • Core • Polypropylene
  • Outer support • Polypropylene
  • End Caps • Polypropylene
  • Gaskets & O-Rings • Ethylene Propylene
  • Dimensions • OD – 2.8 in, ID – 1.1 in, Length – 20 in, Micron Rating – 5 μm.

POLYPROPYLENE CARTRIDGE FILTERS

• Composed of melt-blown and spun-bonded pleated polypropylene
• Highly efficient media with excellent particulate removal
• Pre-filter (1 μm) for larger particulates and primary filter (0.2 μm) for smaller particulates that bypass extraction bag

TECHNICAL SPECIFICATIONS

• • Filter Media • Polypropylene
  • Membrane Support • Polypropylene
  • End Caps • Polypropylene (thermal bonded)
  • Cartridge Dimensions • Effective Filtration Area – 9 ft², Diameter – 2.75 in, Length – 20 in, Filter Grade -1 μm (pre-filter), 0.2 μm (primary)
