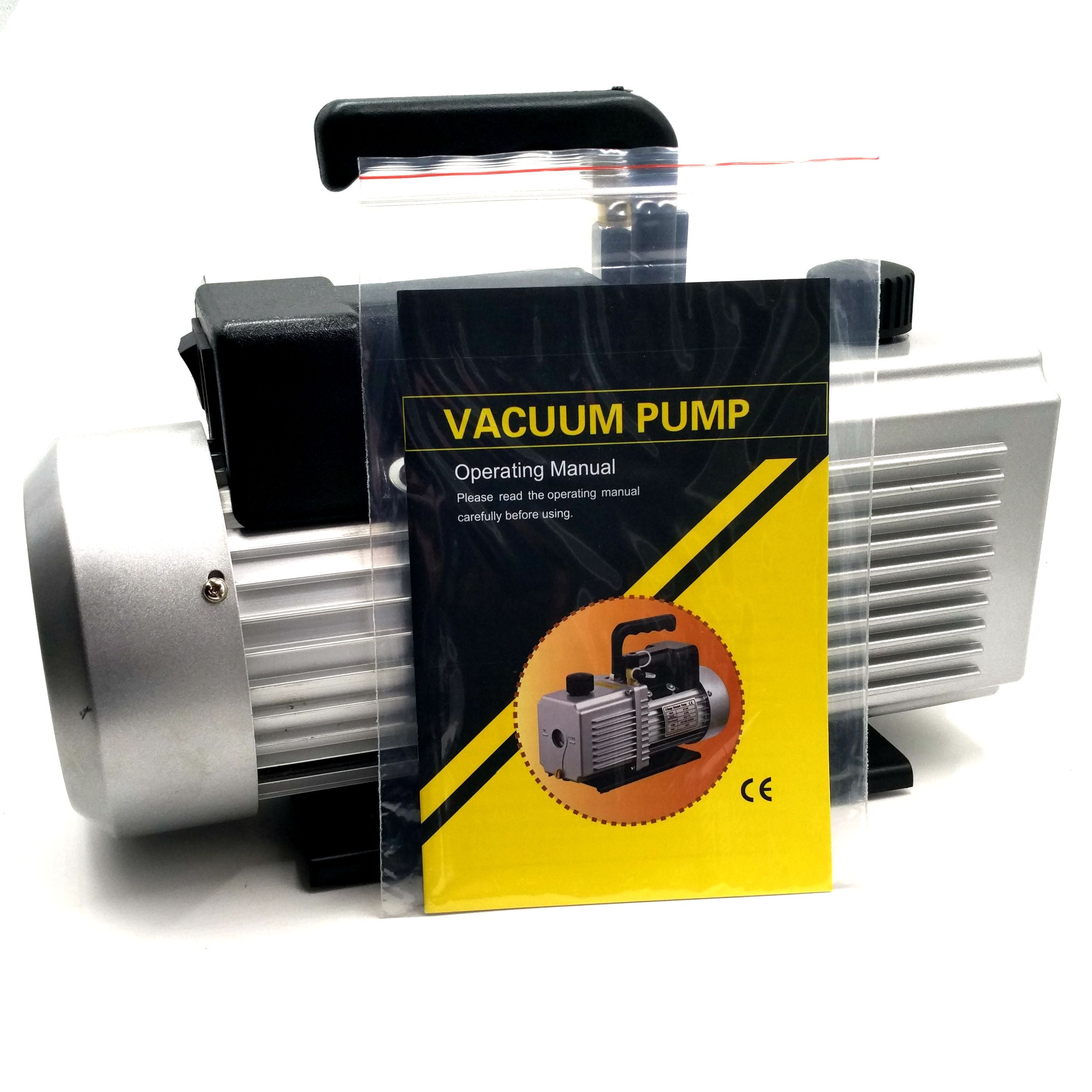

12CFM Single Stage Vacuum Pump VP1200
$249.99
The VP-One series of single-stage rotary vane vacuum pumps are used to obtain a vacuum by pumping gas from a sealed container.
They are extremely useful in refrigeration repair, medical apliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.
Manual & Datasheet for HFS Vacuum Pump
Parameter:
- Flow Rate: 12CFM 340L/min, 110V, 60Hz
- Ultimate Vacuum: 2Pa 150 Microns, 1 Stage
- Power: 1HP
- Inlet: 1/4″ & 3/8″ SAE
- Oil Capacity: 600ml
- Dimensions: 13.3″ X 5.2″ X 9.6″(340mmx132mmx245mm/)
- Weight: 12kgs
Features:
[Working Temp.]: The 12CFM 1 Stage Vacuum Pump operates in ambient temperature: 5℃~40℃. It is equipped with thermal protection function. If the room temperature is too or the voltage is too high, the product may stop working.
[Oil Anti Flow-Back Design & Environmental Design]: The gas inlet is specially designed to prevent oil form flowing back, preventing the container and hoses from being polluted;
The tank has separating devices at the exhaust port to prevent oil spraying and to reduce pollution.
[Easy start design With Alloy Aluminum Casing]: Motor is made from allow casing which has good heat dissipation to keep the pump running efficiently and for a longer life;
It starts easily even in cold temperatures; Anti-Vibration – An electrometric coupling insert between the motor and module results in an extremely quiet and low vibration running condition.
[Application]: Vacuum Pumps are extremely useful in refrigeration repair, medical appliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.
