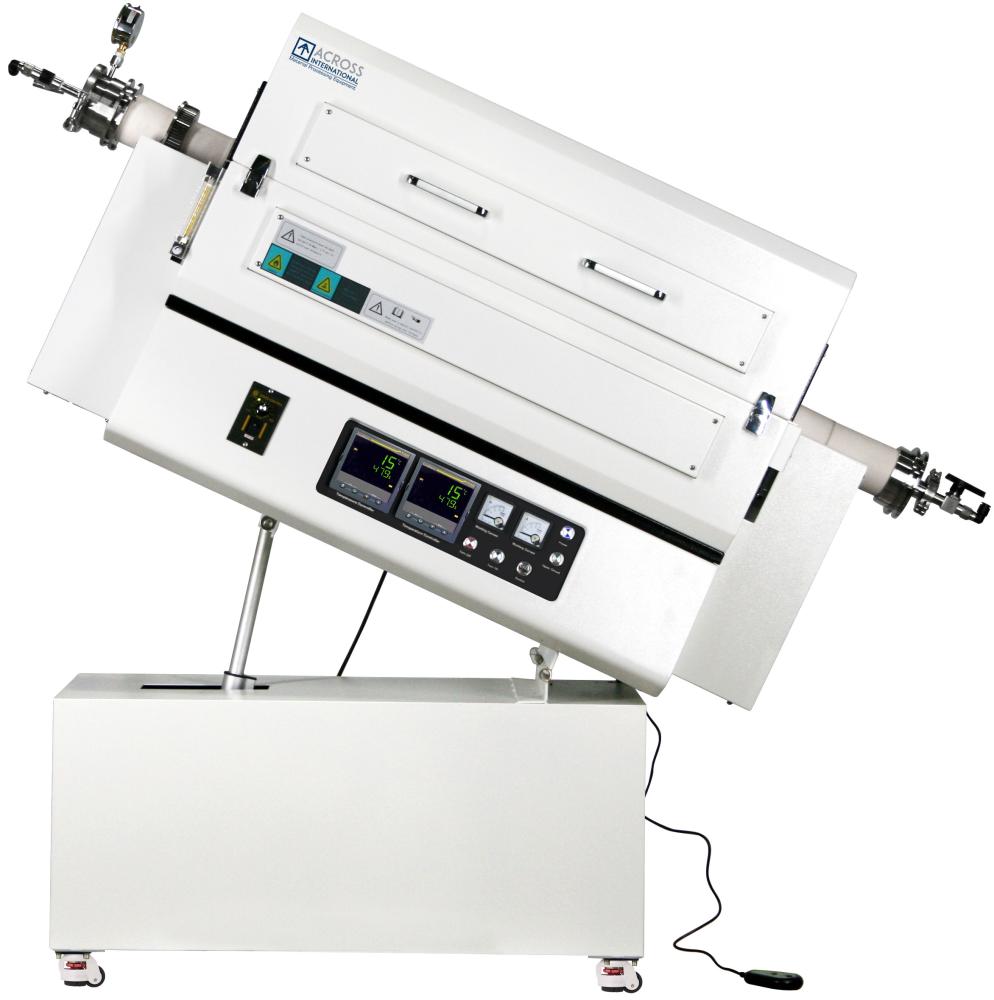

1500C 60-80mm OD 1-3 Zone Rotary & Tilting Top-Open Tube Furnace

RTF1500 series rotary and tilting top-open tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.

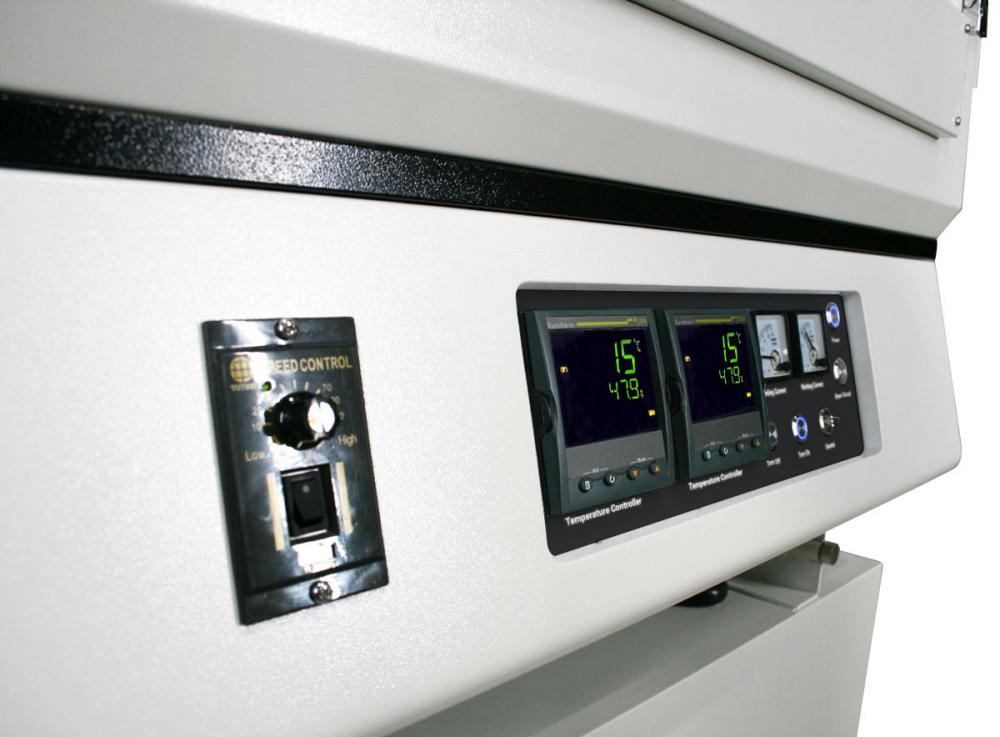

Furnace operation is controlled by Eurotherm multi-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

Features

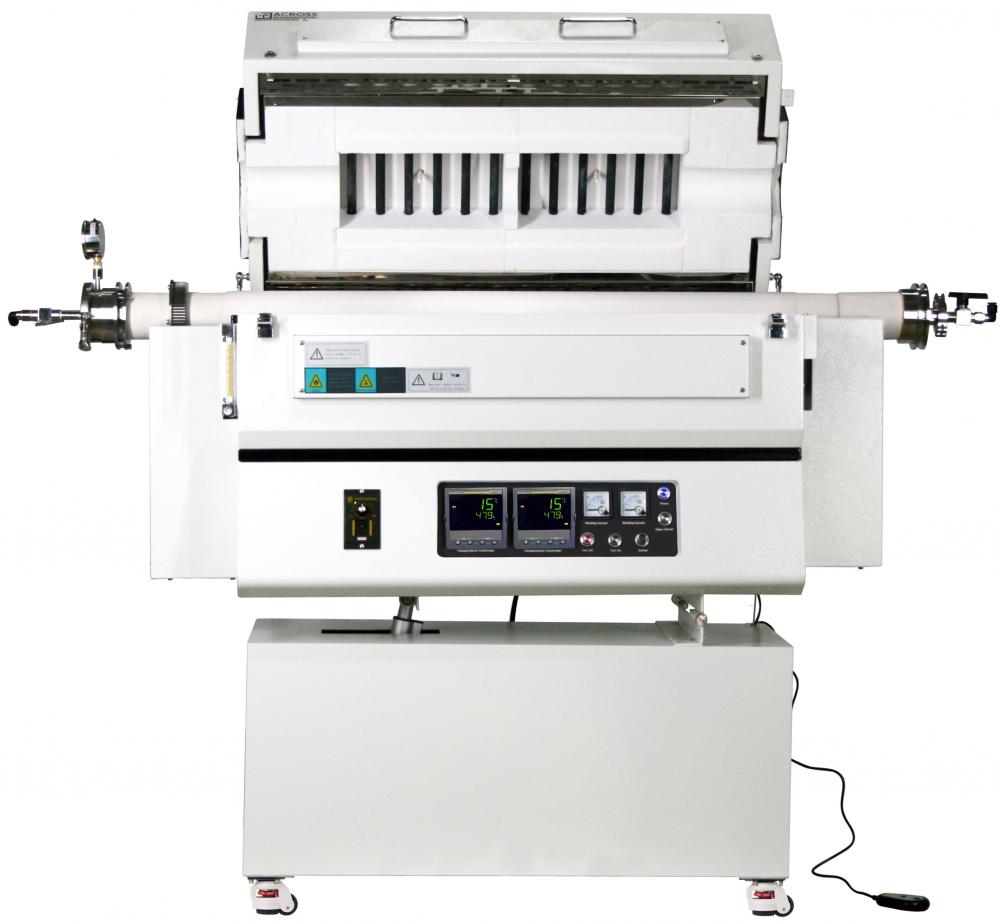

• Top-open furnace chamber for fast and easy tube access.

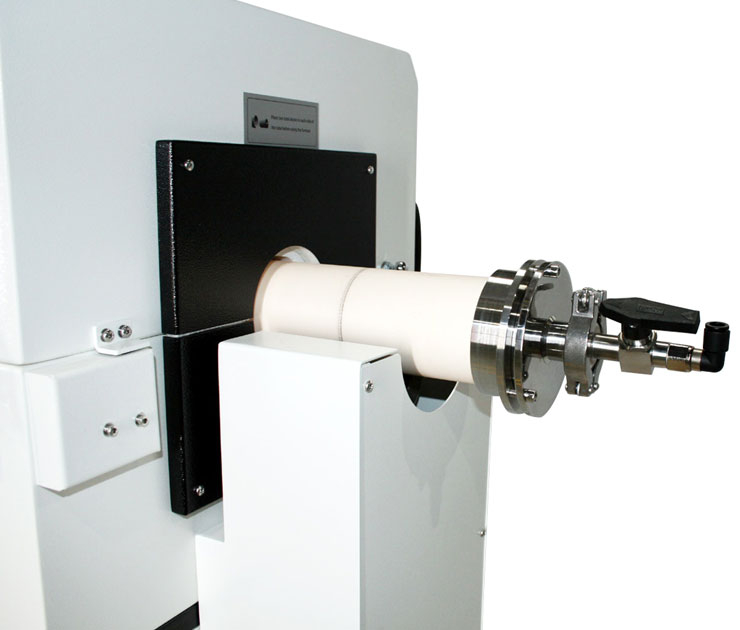

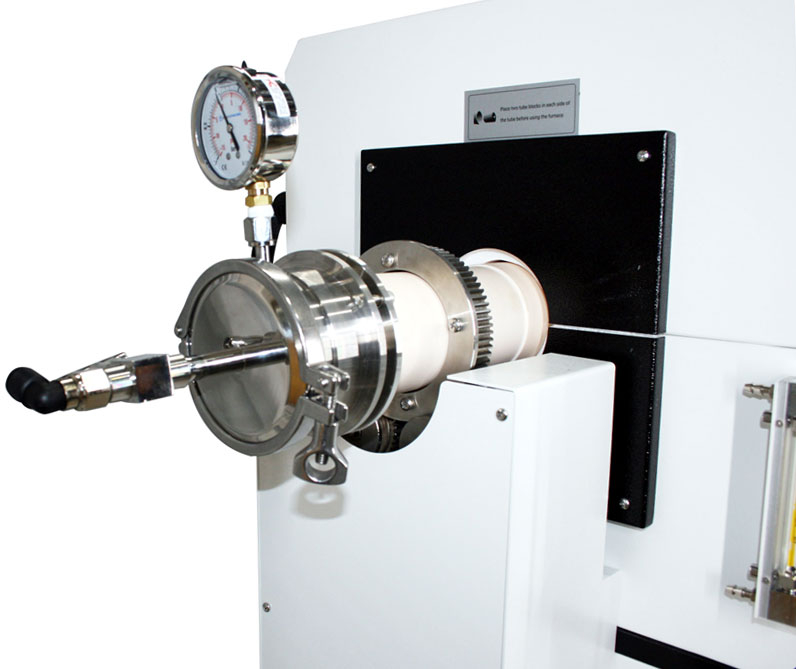

• Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface.
• Long life type S thermocouple.

Safety

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
• Limit switch turns off furnace once top is open.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
