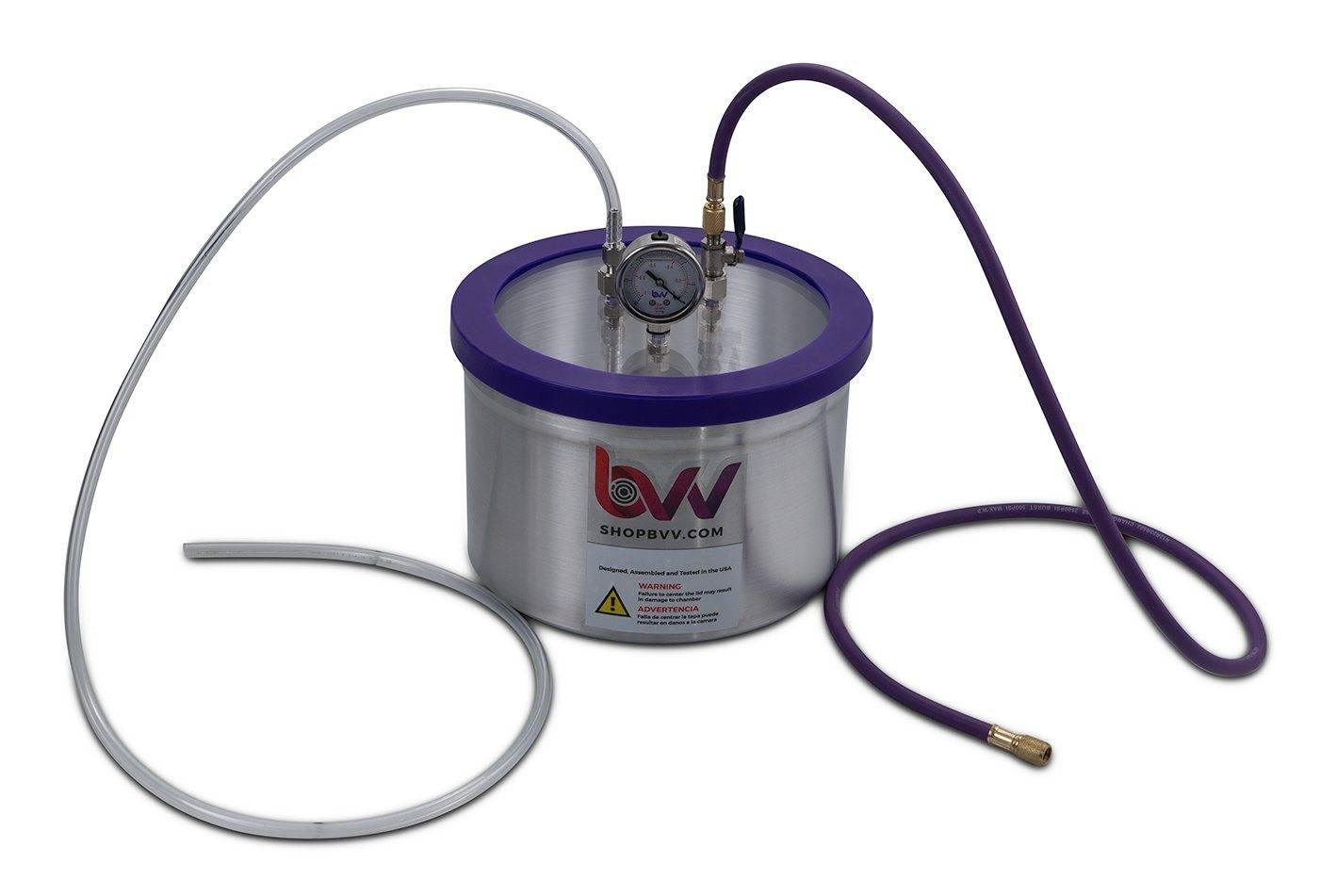

2 Gallon Resin Trap Vacuum Chamber

(Comes with 2 Year Limited warranty)

Designed, built, and 100% tested in Chicago, Illinois, the Resin Trap Vacuum Chamber is the perfect application for a successful, high-quality end product. With its unique, patent pending gasket design (Utility Patent #14/533,548), this shatter chamber can easily withstand 10,000 uses with proper care and maintenance. The gasket itself is reversible, doubling the system’s  life by allowing customers to instantly take it off and flip it over. No adhesives necessary. The maximum allowed temperature of this chamber is 160f. The individual components of this chamber are rated at higher temperatures, however, as a vacuum vessel,  we limit maximum operational temperature to 160f. Every chamber is tested prior to shipping to lose no more than 2.5inHg/24hrs.

Compatibility Explanation:

• BestValueVac® Chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™ etc.), alcohol, ethanol, acetone and acrylic based monomers or polymers.The lid may only be cleaned with soapy water.
• ShatterVac® chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™ etc.), acetone, acrylic based monomers or polymers. The lid may be cleaned with soapy water and low strength cleaning agents.
• GlassVac® chambers are compatible with all solvents and stabilization resins. We only recommend and warranty GlassVac® chambers for resin infusion and wood stabilization. The lid may be cleaned with any solvent or cleaning agent.

Pump Facts:

• We recommend the oil is changed every 50-75 of operating hours.
• CFM is a measure of cubic feet per minute.
• Single stage pumps reach a max vacuum of 50-75 microns (0=complete vacuum).
• Dual/Two stage pumps reach a max vacuum of 10-15 microns (0=complete vacuum).

See FAQ at the top for product safety warnings.

For shipping info including Import/Export details visit our Shipping link at the bottom of the page.
