25L ASME Single Jacket Solvent Tank 350psi Max – Bare
$4,000.00
25L ASME Single Jacket Solvent Tank 350psi Max – Bare

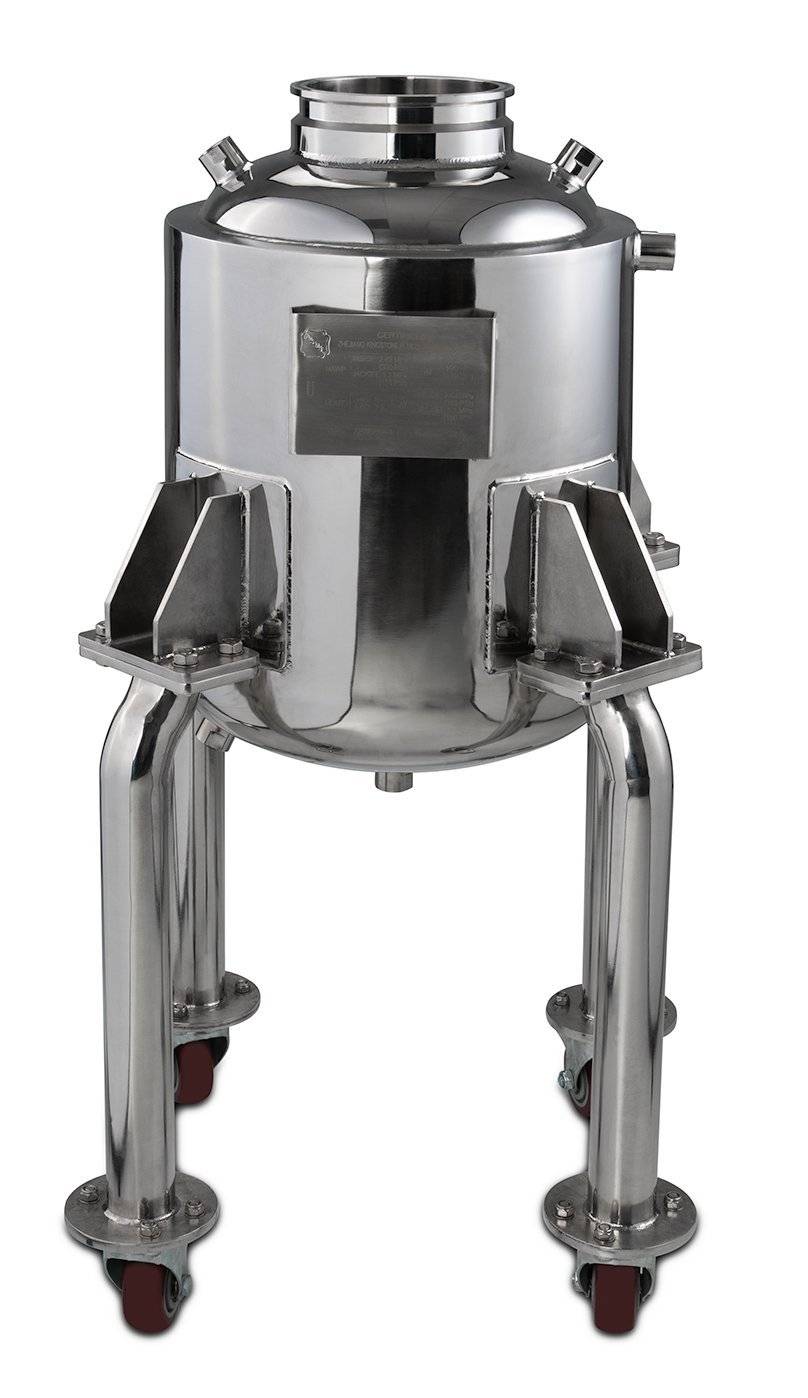

This is a custom manufactured made ASME Certified 25L Jacketed Solvent Tank with ASME Stamp and made out of 304 Stainless Steel. This base is designed to be configured to any application and can even be used as a solvent tank. This tank comes bare with no fittings and will hold 25LBS of liquid butane and is able to have fluid circulated around the outer jacket to increase recovery speeds in the extraction system.
**This Item will ship Via FREIGHT ONLY.
| Specifications | |
| Material | 304 Stainless Steel |

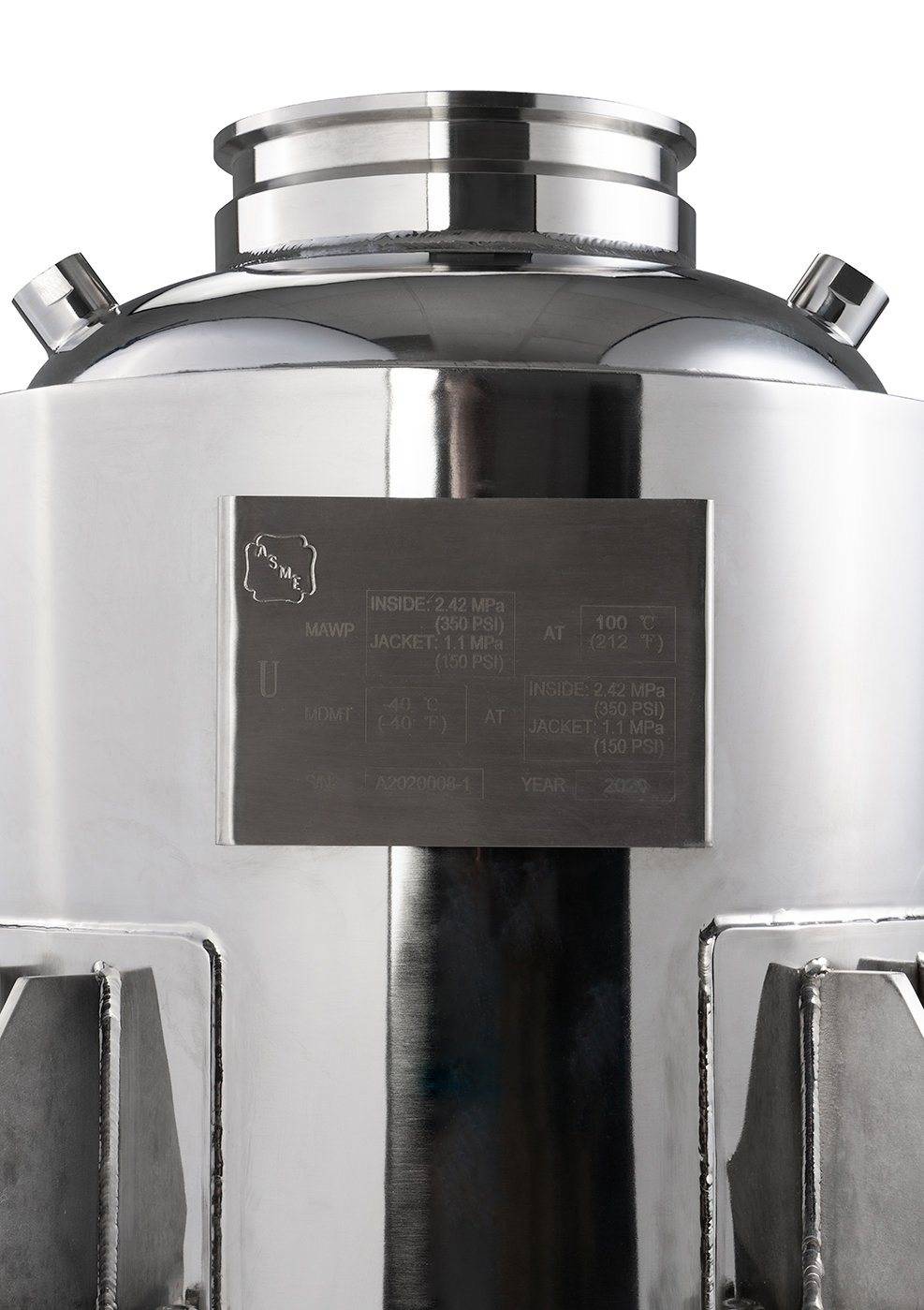

| Certification: | ASME |
| MAWP @ 100°C / 212°F: | |
| Inside | 350 PSI / 2.42 MPa |
| Jacket | 150 PSI / 1.1 MPa |
| MDMT | -40°C / -40°F |
| MIN TEMP | -20°F at 350PSI |
| Butane Capacity | 25LBS |

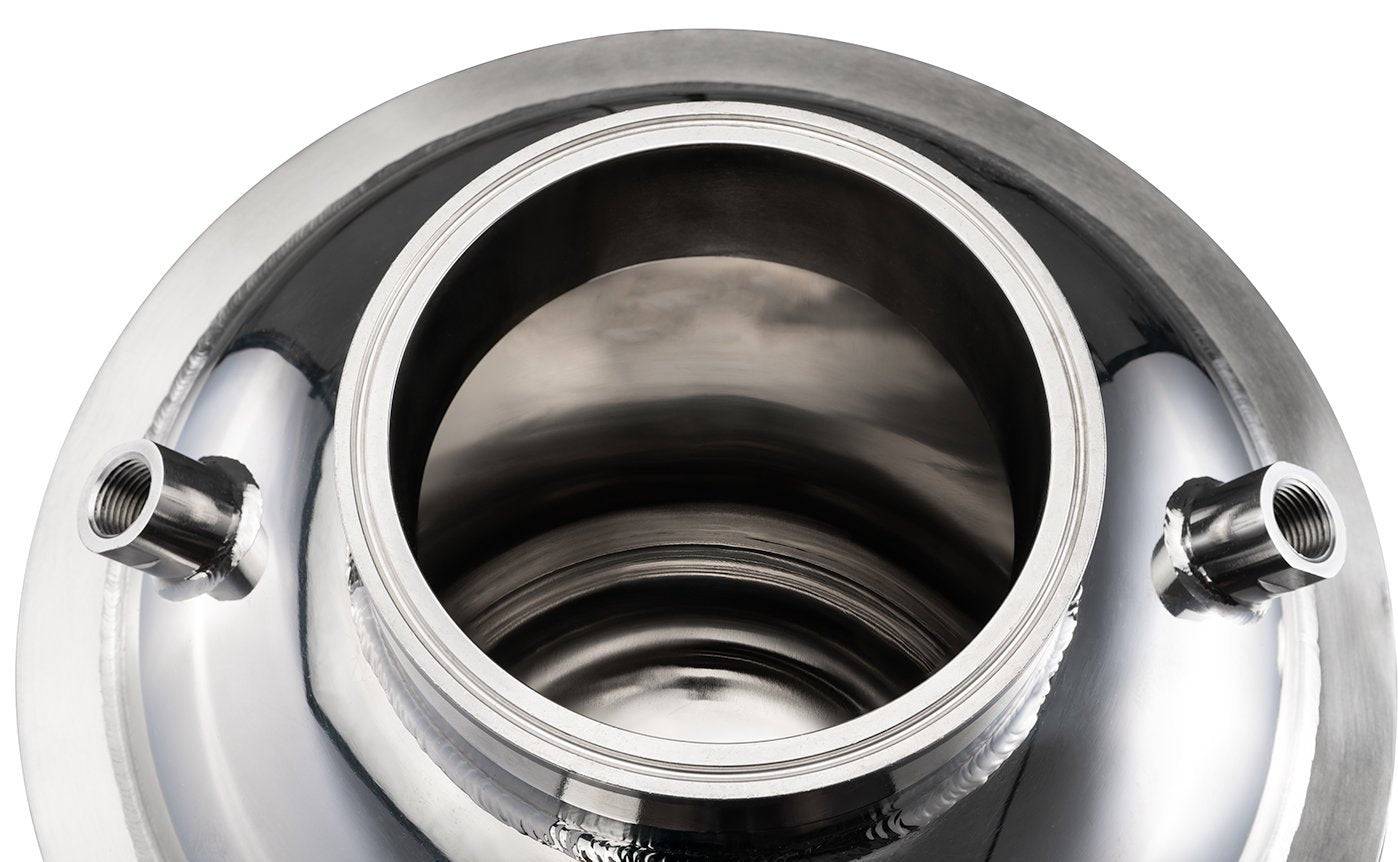

| Connection Sizes: | 6″ Tri-Clamp |
| (5) 1/2″ FNPT | |
| Weight | 118LBS |
| Outer Dimensions: | 37″ Tall |
| 25″Â W x 25″ L | |
