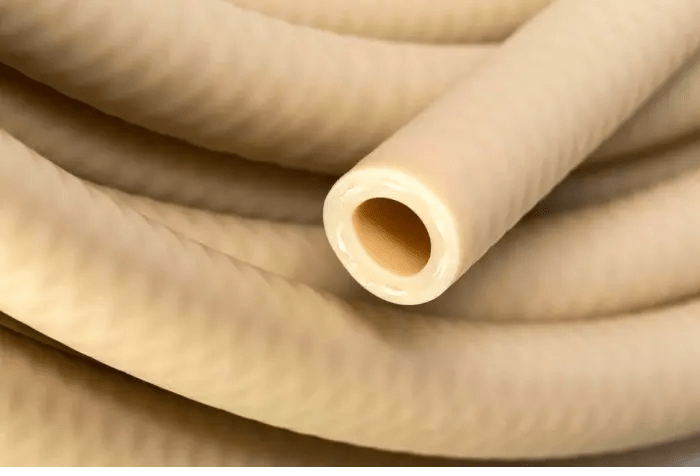

3/8″ Reinforced Santoprene Food Grade Chilling and Heating Tubing -75F to 275F
$30.00 – $780.00
Material: Santoprene
Tubing Dimension: 3/8″ ID X 5/8″ OD X 1/8″Wall
Uses: This tubing is for use with all Ai Heating units and for C30 Recirculating Units.
Shore Hardness:Â
| Hardness | Typical Value (English) | Typical Value (SI) | Test-Based On |
| Shore A, 15 sec, 73℉ (23℃) | 78 | 78 | ISO 868 |
Physical Characteristics
| Physical | Typical Value (English) | Typical Value (SI) | Test-Based On |
| Density / Specific Gravity | 0.960 | 0.960 | ASTM D792 |
| Desity | 0.960 g/cm^3 | 0.960 g/cm^3 | ISO 1183 |
Temperature and Pressure
| Extrusion | Typical Value (English) | Typical Value (SI) |
| Drying Temperature | 180 ℉ | 82 ℃ |
| Drying Time | 3.0 hr | 3.0 hr |
| Melt Temperature | 395 ℉ | 202 ℃ |
| Die Temperature | 400 ℉ | 204 ℃ |
| Back Pressure | 725 to 2900 psi | 5.00 to 20.0 MPa |
Tubing Operating Pressure: Not to exceed 50 psi
Operating Temperature: -75F to 275F
Compliance
- FDA Food contact, Unspecified rating
- NSF STD-51
- UL QMFZ2
- UL QMFZ8
