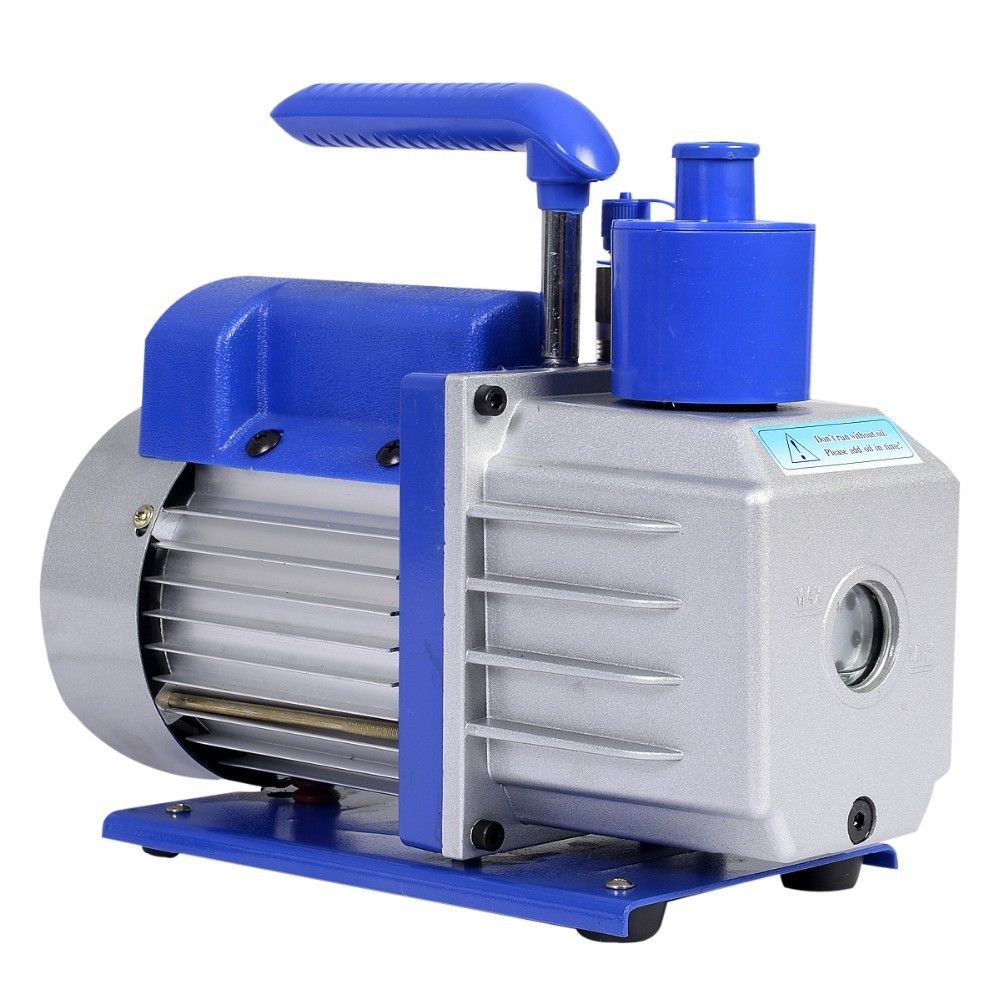

3CFM Dual Stage Vacuum Pump

The HFS VP series of dual-stage rotary vane vacuum pumps are used to obtain a vacuum by pumping gas from a sealed container.
They are extremely useful in refrigeration repair, medical apliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.
See product photos for full specs.

Manual & Datasheet for HFS Vacuum Pump

Parameter:

• Flow Rate: 3CFM 85L/min, 110V, 60HZ
• Ultimate Vacuum: 2×10^-1 Pa/15Microns, 2 stage
• Power: 1/3HP
• Inlet: 1/4″ & 3/8″ SAE
• Oil Capacity: 300ml
• Dimensions: 11.4″ X 4.5″ X 8.7″ (290mmx115mmx220mm)
• Weight: 7.8kgs

Features:

[Working Temp.]: The 3CFM 2 Stage Vacuum Pump operates in ambient temperature: 5℃~40℃. It is equipped with thermal protection function. If the room temperature is too or the voltage is too high, the product may stop working.

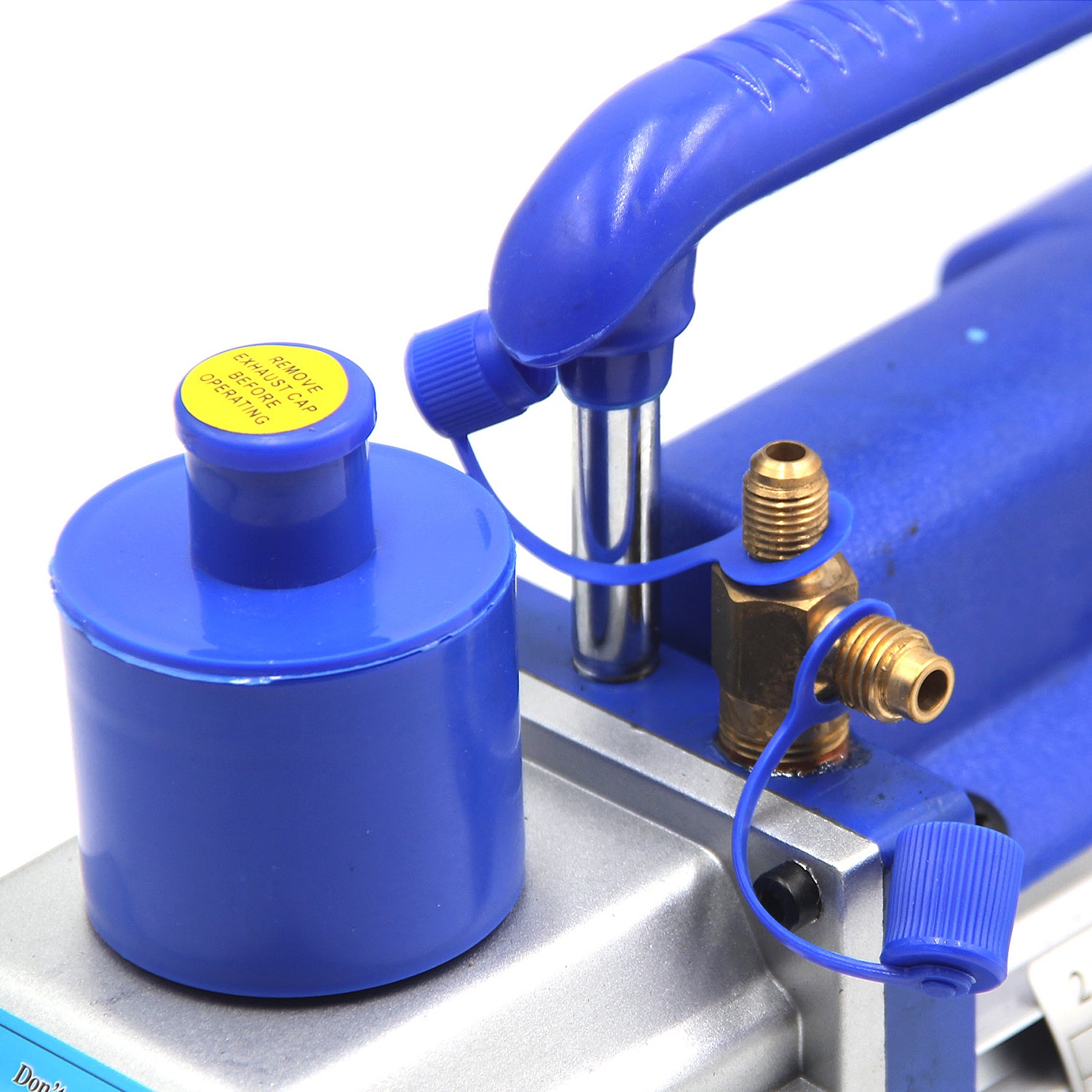

[Oil Anti Flow-Back Design & Environmental Design]: The gas inlet is specially designed to prevent oil form flowing back, preventing the container and hoses from being polluted;
The tank has separating devices at the exhaust port to prevent oil spraying and to reduce pollution.

[Easy start design With Alloy Aluminum Casing]: Motor is made from allow casing which has good heat dissipation to keep the pump running efficiently and for a longer life;
It starts easily even in cold temperatures; Anti-Vibration – An electrometric coupling insert between the motor and module results in an extremely quiet and low vibration running condition.

[Application]: Vacuum Pumps are extremely useful in refrigeration repair, medical appliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.
