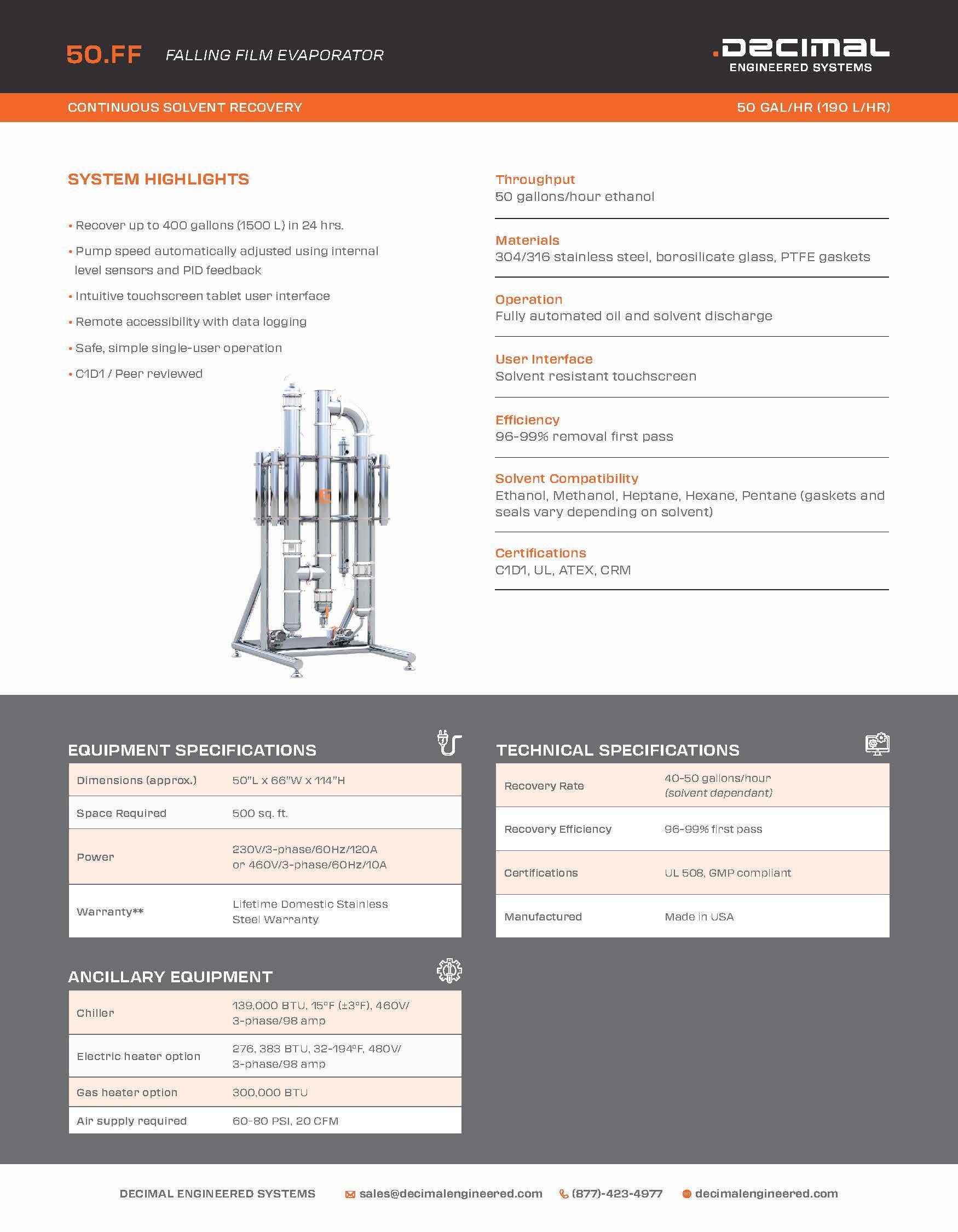

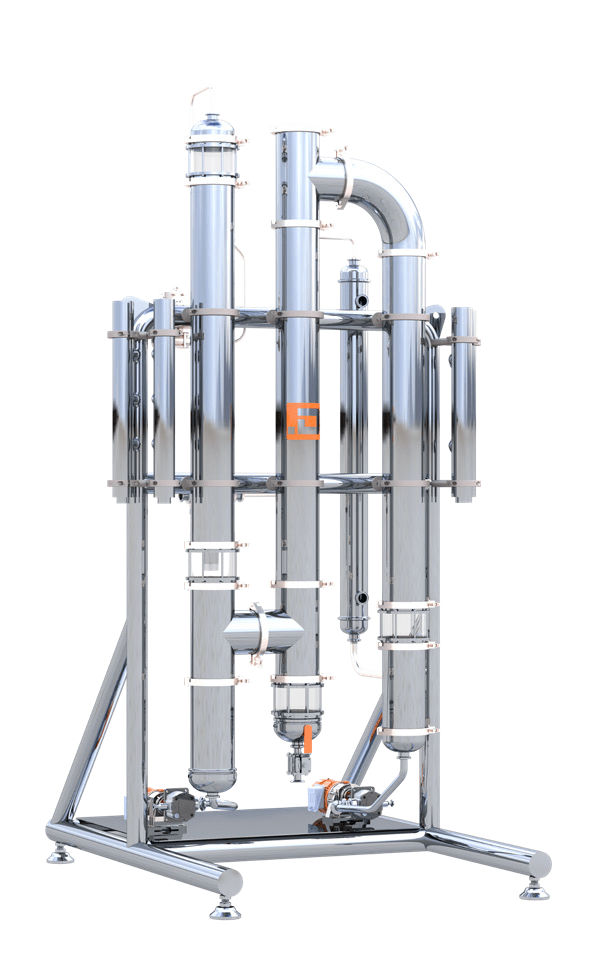

50.FF is a Falling Film Evaporator capable of recovering up to 50 gallons of ethanol per hour with 99% efficiency on the first pass. The system is fully automated with touchscreen tablet control and remote accessibility. Processed oil and collected solvent are continuously discharged with VFD controlled pumps. Vacuum pressure, temperature and heater/chiller power consumption are logged and displayed on the intuitive user interface. 50.FF is approved for use in C1D1 workspaces.
Throughput
50 gallons/hour ethanol Materials
304/316 stainless steel, borosilicate glass, PTFE gaskets Operation
Fully automated oil and solvent discharge User Interface
Solvent resistant touchscreen Efficiency
96-99% removal first pass Solvent Compatibility
Ethanol, Methanol, Heptane, Hexane, Pentane (gaskets and seals vary depending on solvent) Certifications
C1D1, UL, ATEX, CRM
Equipment Specifications
Dimensions: (approx.) 50″L x 66″W x 114″H Space Required: 500 sq. ft. Power: 230V/3-phase/60Hz/120A or 460V/3-phase/60Hz/10A Warranty** : Lifetime Domestic Stainless Steel Warranty
Recovery Rate: 40–50 gallons/hour (solvent dependent) Recovery Efficiency: 96–99% first pass Certifications: UL 508, GMP compliant Manufactured: Made in USA
ANCILLARY EQUIPMENT
Chiller: 139,000 BTU, 15°F (±3°F), 460V/3-phase/98 amp Electric heater option: 276, 383 BTU, 32-194°F, 480V/3-phase/98 amp Gas heater option: 300,000 BTU Air supply required: 60–80 PSI, 20 CFM
