6” Tri Clamp Dewaxing Spools

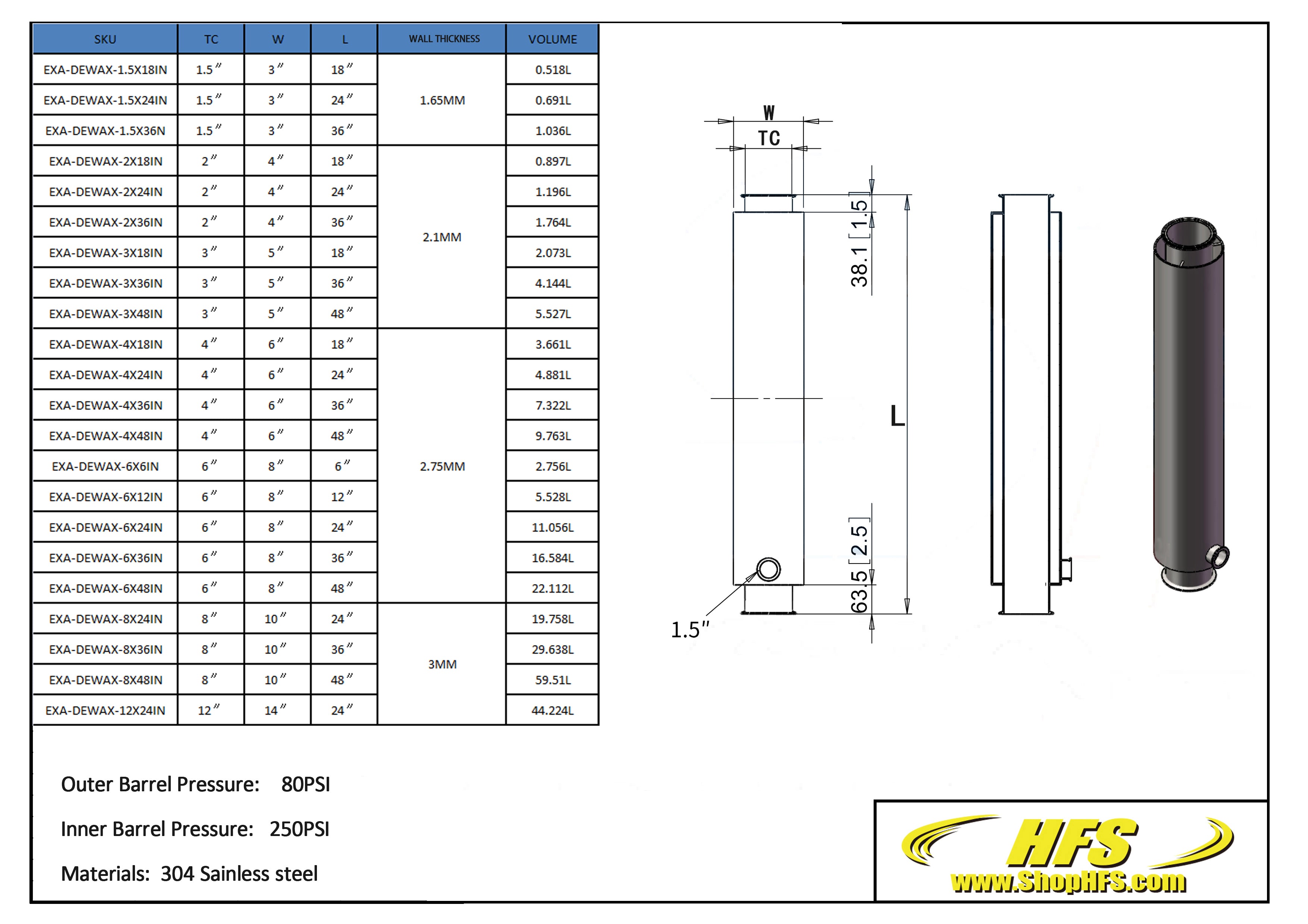

CLICK HERE TO VIEW THE SIZECHART

Our 6″ Dewaxing Spools are made from 304 stainless steel and come with a high-polish finish.

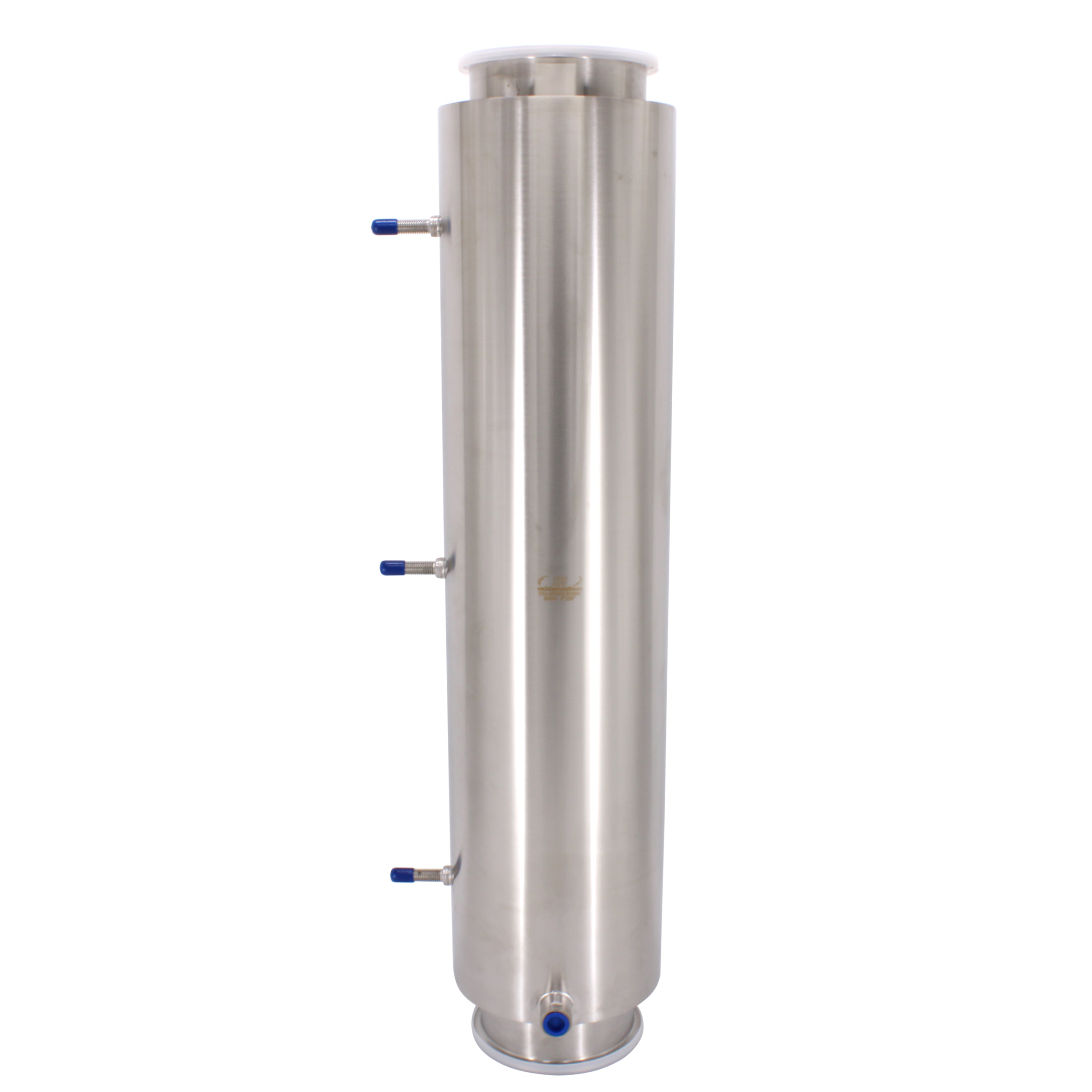

These spools feature welded-on mounting bolts for use with a rack system.

Dewaxing spools have a outer sleeve around the main spool, the sleeve is open at the top which allows filling with a dry-ice and alcohol mixture to reduce the temperature of the spool. At the bottom of the sleeve it a female NPT fitting which will be plugged when operating, then can be opened to allow the contents of the sleeve to come out.

Stainless Steel: 304

Sanitary Size (in): 6

Flange OD (in): 6.562

Tube ID (in): 5.782

Tube OD (in): 6

Sleeve OD (in): 8
