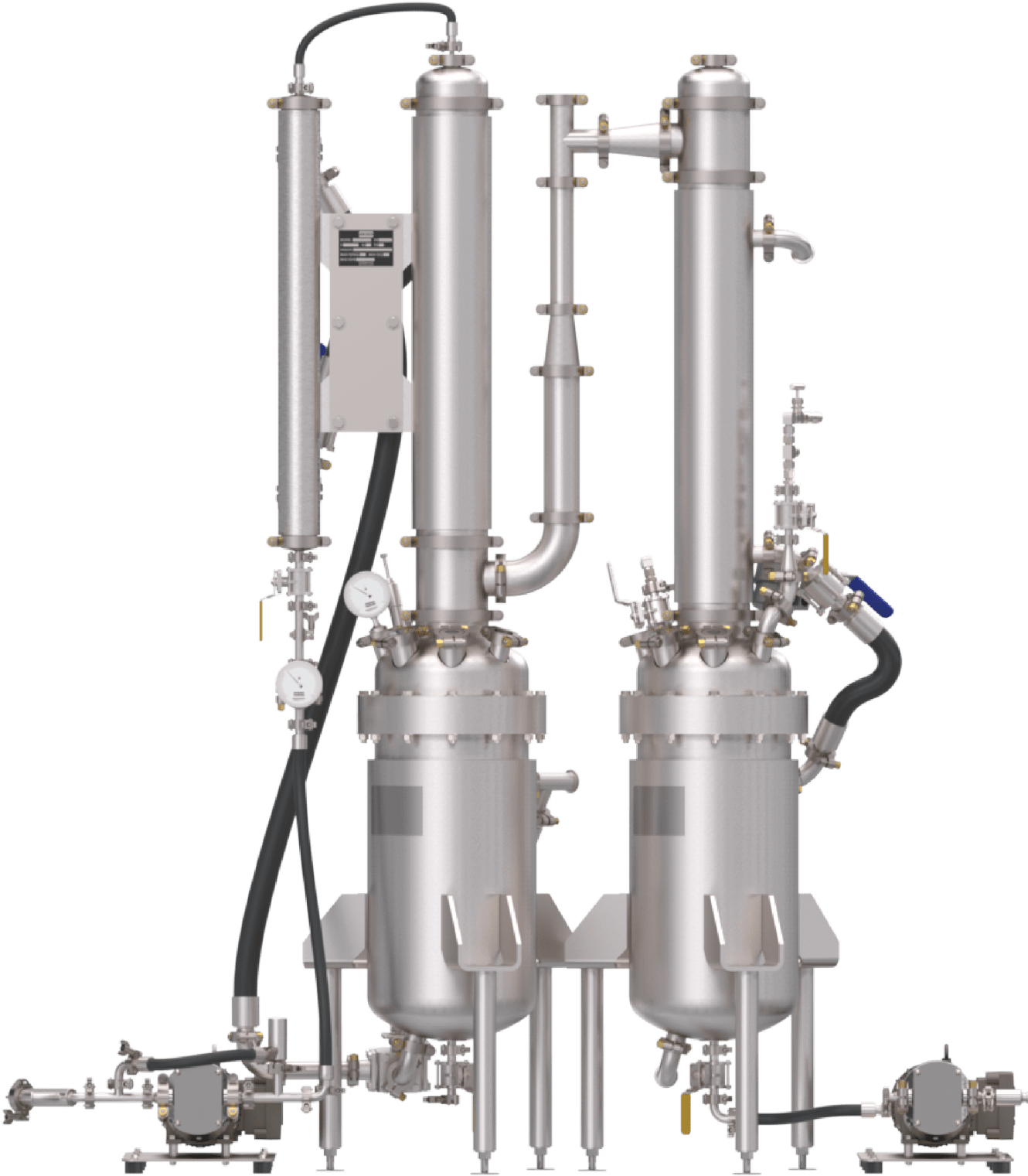

For entry-level, pharmaceutical-grade solvent recovery equipment, the AV40GMP is the best solution. It is easily configurable and will recover a wide range of solvents from many processes and industries.
The AutoVap GMP offers the best of the original AutoVap design, along with several additional benefits never before available. cGMP Compliance
cGMP Compliance
Material Certification on Wetted Components
Welding Certification and Supporting Documents
Installation and Operation Qualification
21 CFR11 Standards within PLC/Data Validation
Pharmaceutical Grade Standards
25 RA or better Surface Finish
316L Stainless Steel
Domestically Sourced
Increased Capability in a Smaller Footprint
Up to 40 Gal/Hr Solvent Recovery
8′ in Height
Completely Continuous with discharge of solvent and residue
Multi-Solvent Capability

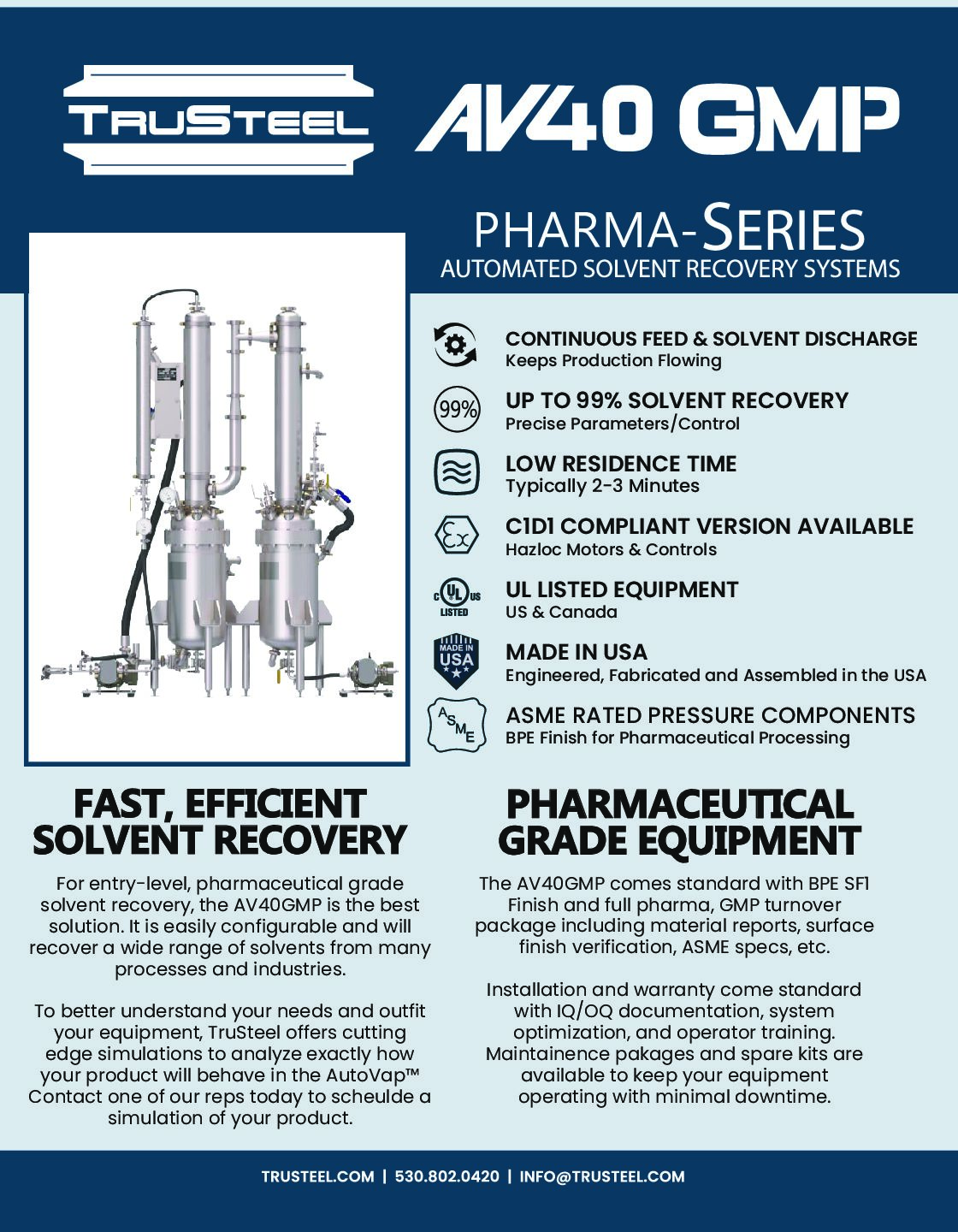

PHARMACEUTICAL GRADE EQUIPMENT
The AV40GMP comes standard with BPE SF1 Finish and full pharma, GMP turnover package including material reports, surface finish verification, ASME specs, etc.
Installation and warranty come standard with IQ/OQ documentation, system optimization, and operator training. Maintenance packages and spare kits are available to keep your equipment operating with minimal downtime.
Standard Features:
• NIST calibrated instruments
• ASME Rated from:
– 20C to 100C
Full Vacuum to 100 PSIG Extended Ranges Available
• Semi Automated Operation
• Wetted Materials: 316L, PTFE, Borosilicate, Hastalloy, and Tungsten Carbide
• Compatible With: Ethanol, Methanol, Heptane, Hexane, Acetone, Acetonitrile, etc.
• UL Listed Ancillary Equipment Included: Heating System, Cooling System, Vacuum and pumps
• Engineer Reviewed For Safe Operation in Hazardous Locations
• IQ/OQ, FAT, SAT Included
Specifications:
CHILLER (12 TON COOLING POWER) 230V/3Ø/65A OR 460V/3Ø/43A 80.3 x 35 x 65.6 (LxWxH inches)
884 lbs. (Empty weight)
VACUUM PUMP
110V/1Ø/3A
7 x 15 x 9 (LxWxH inches)
40.3 lbs.
WATER HEATER
OPTION 1: ELECTRIC
208V/3Ø/99.9A
240V/3Ø/79.4A
480V/3Ø/43.3A
10 x 24 x 15.75 (LxWxH inches)
OPTION 2: GAS
120V/1Ø/12A; 300K BTU
1/2” GAS CONNECTION
VARIABLE FREQUENCY DRIVE [FEED PUMP]
208-240V 1 or 3Ø Input (3Ø Output) 1A @ 208V
.72 x 2.2 x 3.4 (LxWxH inches)
VARIABLE FREQUENCY DRIVE [DISCHARGE PUMP]
208-240V 1 or 3Ø Input (3Ø Output) 1A @ 208V
.72 x 2.2 x 3.4 (LxWxH inches)
AV40 FOOTPRINT
84 x 36 x 96 (LxWxH inches)
*Different solvents may result in varied recovery rates.
