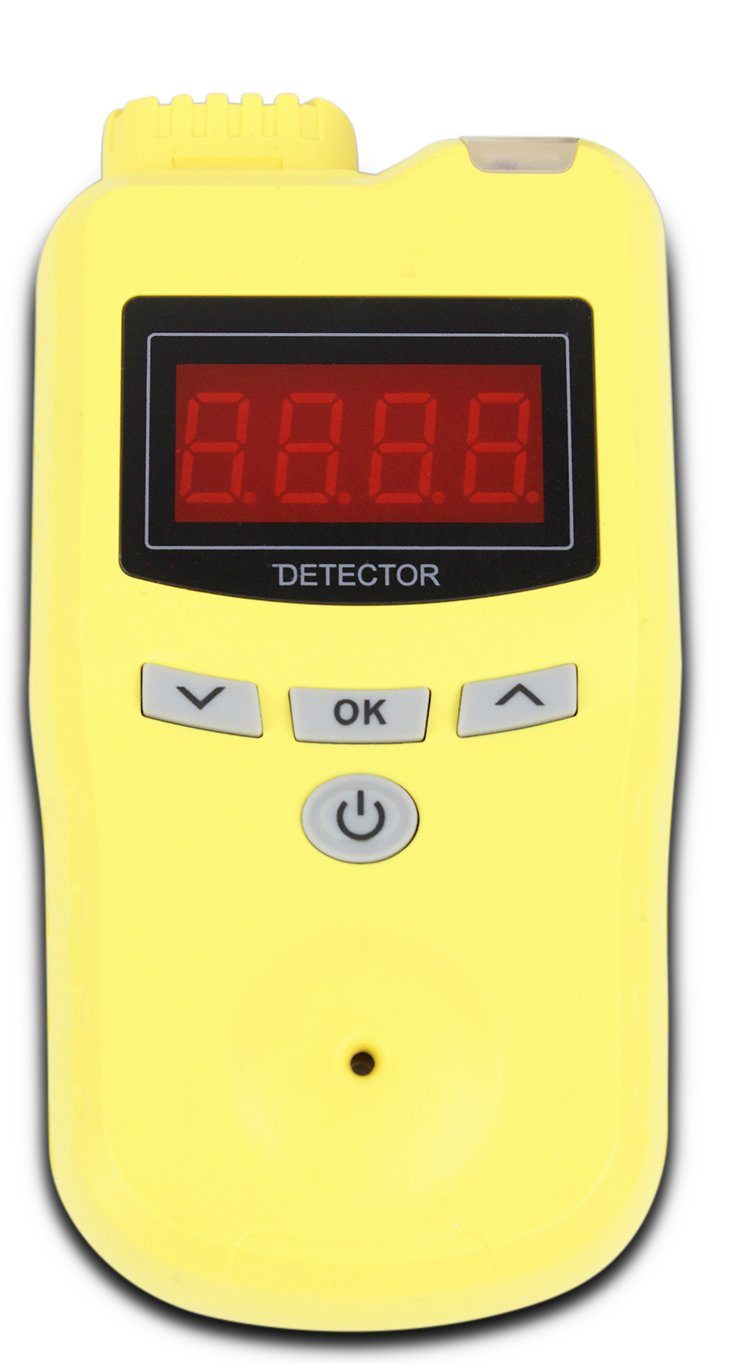

Portable Butane Leak Detector C4H10

(Comes with 30 Day Limited warranty)

Product Features:

1. Handheld, industry use, high sensitivity and accuracy
2. Intrinsically safe, Ex sign is Exhibit
3. Rugged ABS+PC case, heavy duty, crash resistant
4. High-capacity chip, 4 layers PCB board
5. Visual & audible alarm
6. Low battery alarm

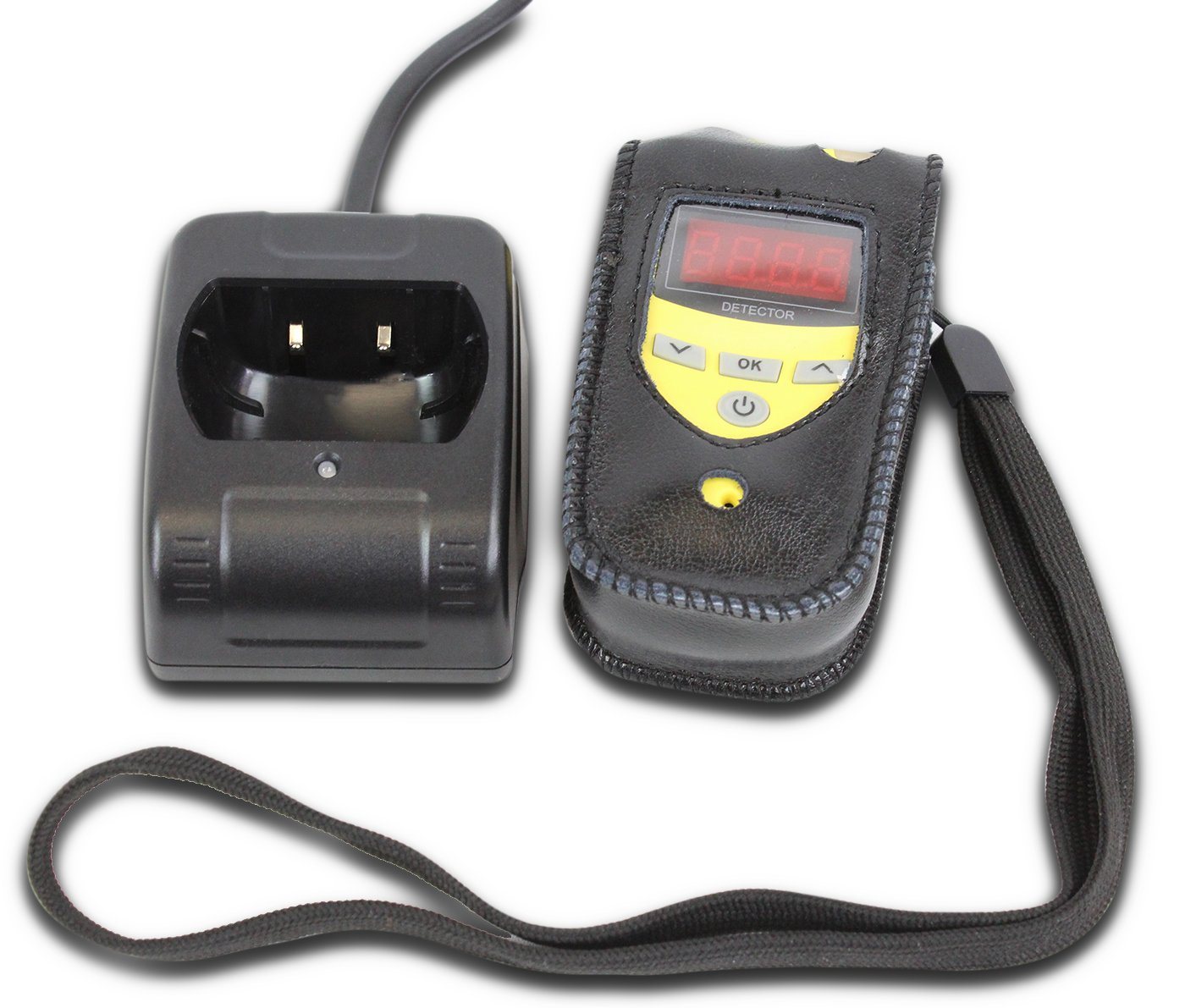

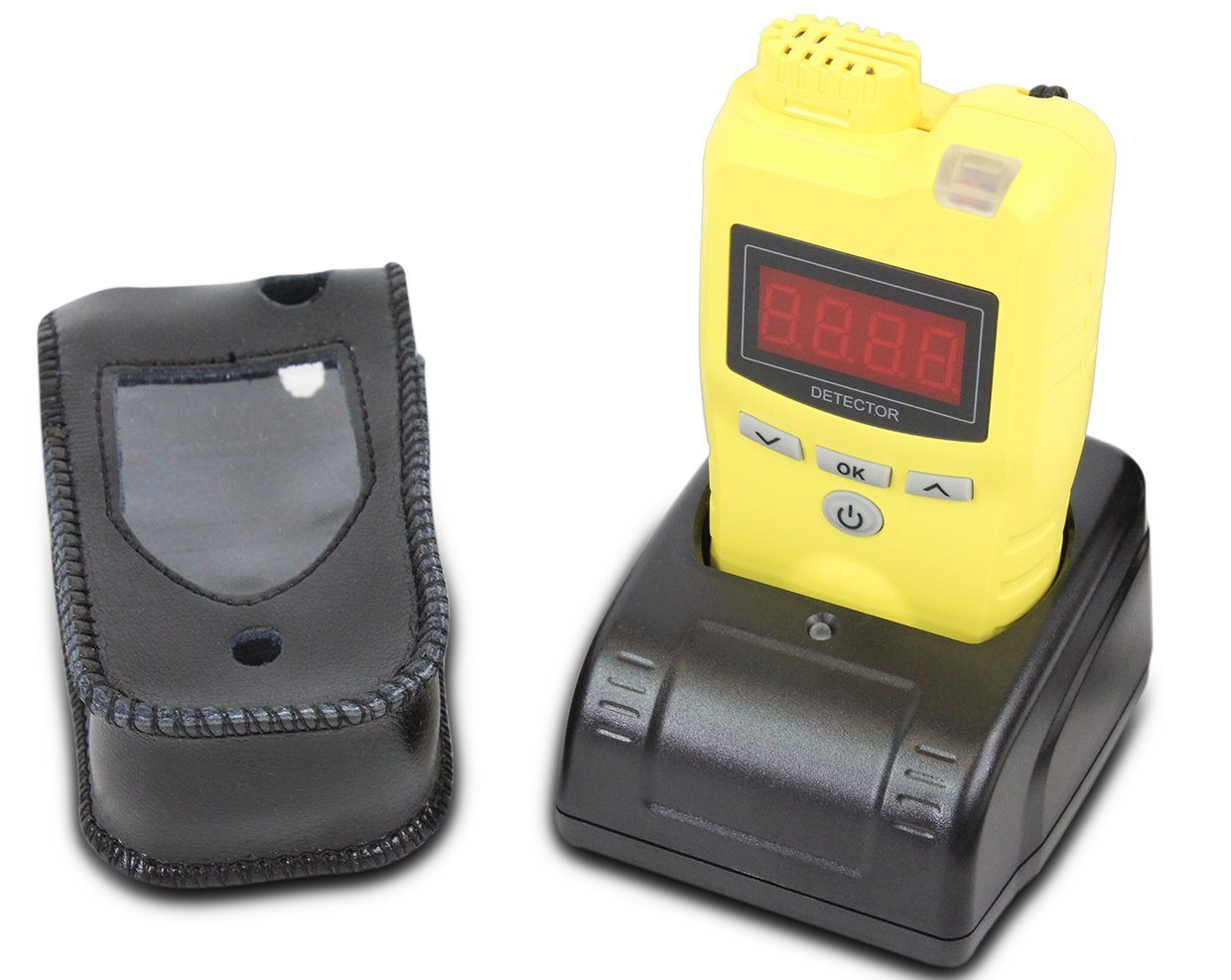

7. Charging dock, easier access to recharging
8. Energy saving LED screen shows real time concentration
9. External air sampling pump is available for gas leak detection
10. Leather case is provided

Usage:

The gas detection instruments we designed are widely used in petrochemical, municipal environmental protection, coal mine, residential places, and other natural and wide ranges of industrial environments.

Technical Parameter:

• Gas detected – Butane (Infrared Sensor C4H10 IR
• Measuring range – (0.00~5.00)%vol, (0~100)%vol
• Resolution ratio – 0.01%vol
• Sensor – Infrared Sensor, Made in UK
• Sensor lifetime – ≥5 year
• Response time – ≤45s(T90)
• Alarms – Audible–buzzer with ≥75dB audible
• Visible–flashing red LED, ≥20m visible
• Alarm point – Fully adjustable
• Continuous working time – >16h
• Working current – < 1mA ( without backlight)
• Working temperature – -25℃~+55℃, short time: -40℃~+55℃
• Display – Liquid crystal display (LCD)
• Battery model – PL123450, 3.7V/1500mA
• Charging time – 4-5 hours
• Dust and water resistance – IP65
• Size & Weight – 105*54*32mm/450g

Included in the box:

• Charging adapter
• calibration cap
• calibration gas hose
• hanging cord
• leather case
• manual
