Cascade CVO-10 PRO Package with MAXTRAP50, Pre-Owned – SOLD

* Pictures & Spec for Similar Reference ONLY – Please Call For Details on PRE-OWNED Cascade CVO-10 PRO Package with MAXTRAP50

A complete vacuum drying system designed for temperature sensitive, high-thru-put for vacuum purging large production quantities.  Cascade’s MAXTRAP50, a -50C cold traps integrated to keep the Agilent IDP15 vacuum pump operating with minimum downtime and maximum efficiency.

Vacuum oven and pump are connected via our MAXEVAP connection kit – giving water, solvents, any outgassing material the largest exit path off the product and out of the oven.

The entire system is set on an industrial grade mobile racks for easy of mobility and to help keep the lab clean.

• NRTL Certified
• Cascade’s CVO-10 oven and cold trap are MADE IN USA

Cascade’s Model CVO-10 vacuum oven offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries – especially temperature sensitive material. This vacuum oven will liberate solvents, water or other unwanted compounds in large batch production environments.  The MAXTRAP50 cold trap will keep the vacuum pump running optimal and allow for capture of outgassed material in the steel trap.

CVO-10 PRO Package with MAXTRAP50 Includes

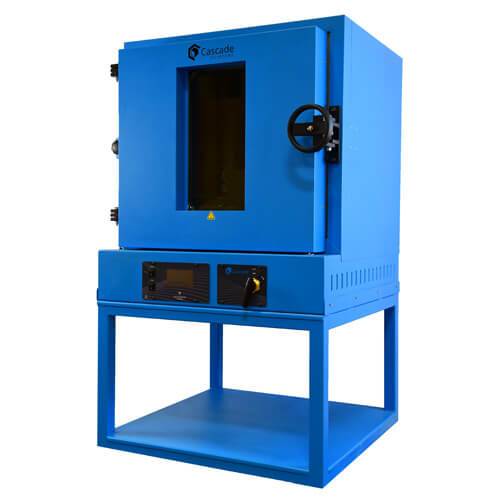

• Cascade Sciences CVO-10 Vacuum Oven
• Heavy-Duty Industrial Mobile Cart for CVO-10 and MAXTRAP50 Cold Trap
• 9 Shelves, Aluminum, full extension with copper sheaths for optimal temperature performance
• MAXEVAP Connection Kit
• MAXTRAP50 Vacuum Cold Trap to -50°C
• Agilent IDP15 Oil-Free Vacuum Pump, 9cfm

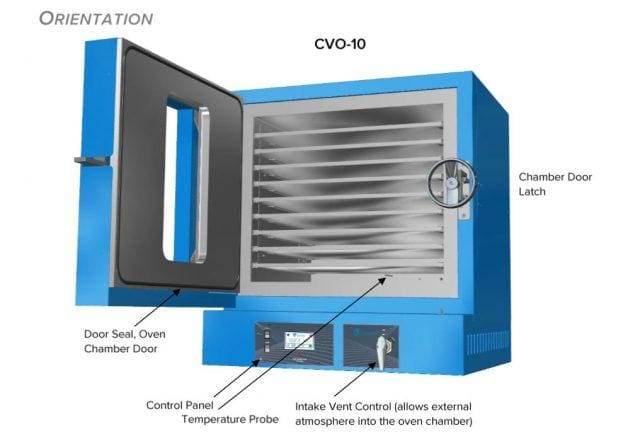

CVO-10 Vacuum Oven Features

• NRTL Certified by TUV
• 9 sliding, removable shelves that pull out and stay in place for easy load/unload
• Stable temperature control. Digital temperature readout with temp sensor INSIDE the oven
• Easy mobility as oven sits on heavy duty industrial cart.  Pump sits underneath at base of cart.
• VITON door gasket
• Bright LED lights in window for visibility of sensitive material
• Digital vacuum gauge reads in inches of mercury or torr
• Smooth, quarter-turn vent valve
• Rear KF-25 port includes MAX EVAP Connection Kit for rapid vacuum drying or running feedthroughs inside oven for monitoring
• 220V / 1ph  / 10AMPS
• Quality Tempered Rated Glass NGI-US to ANSI Z97.1.2007 156CFR/201 11  SGCC -2577 ½ UA
• Ergonomic.  Turn vacuum pump on/off from oven control panel
• Fast Venting with larger ½” diameter vent line
• Rear vent barb allows for nitrogen or other inert gas connection
• Touch Panel LED control screen with user settable features

Agilent IDP15 Oil-Free Scroll Pump Features

• Quiet.  Less noisy that diaphragm or oil-rotary vane pumps
• Oil- Free.  Eliminates contamination risk. No inlet / exhaust filters required
• Hour meter for tracking service
• 1 Year Warranty
• NRTL Certified
• Maintenance is the replacement of a single interior tip seal.  IDP15 Tip Seal Replacement Kit
• Pull Deeper Vacuum / Better Vapor Tolerance With Gas Ballast Positions. The IDP15 has two gas ballast ports that assist the pump in handling condensing gases such as water vapor, or other gaseous products that become liquids or solvents when reaching atmospheric pressure.

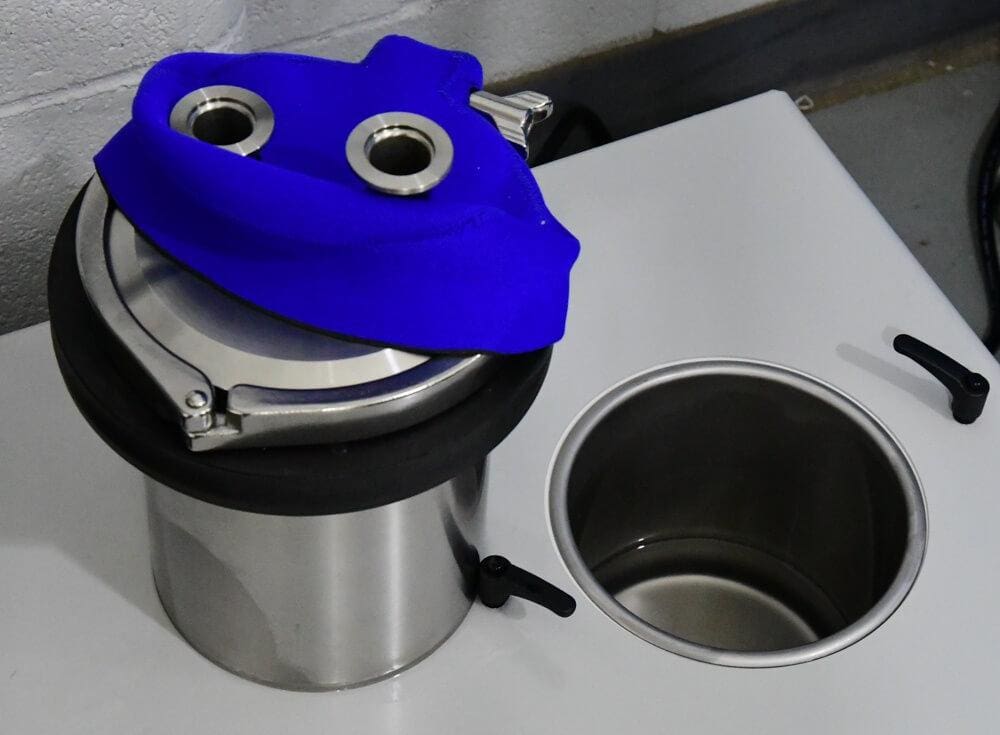

MAXTRAP50 -50°C Cold Trap Includes:

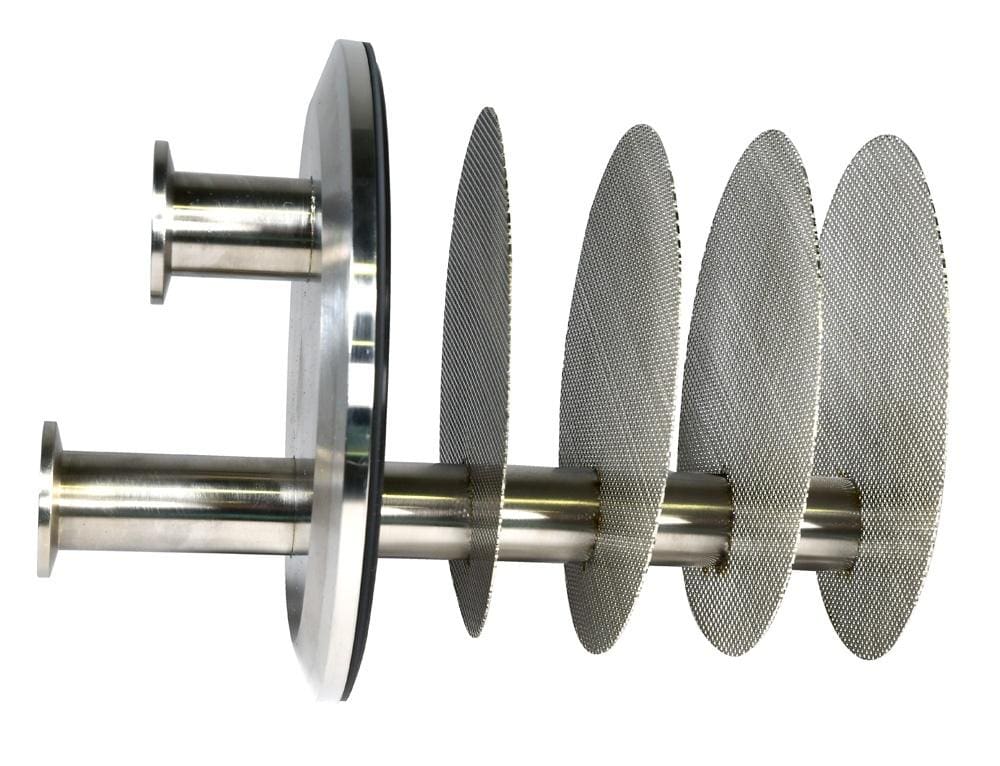

• Cascade’s COLDWELL 304 Stainless Steel Trap
• 3 Quart Capacity (2839ml)
• Viton Gasket

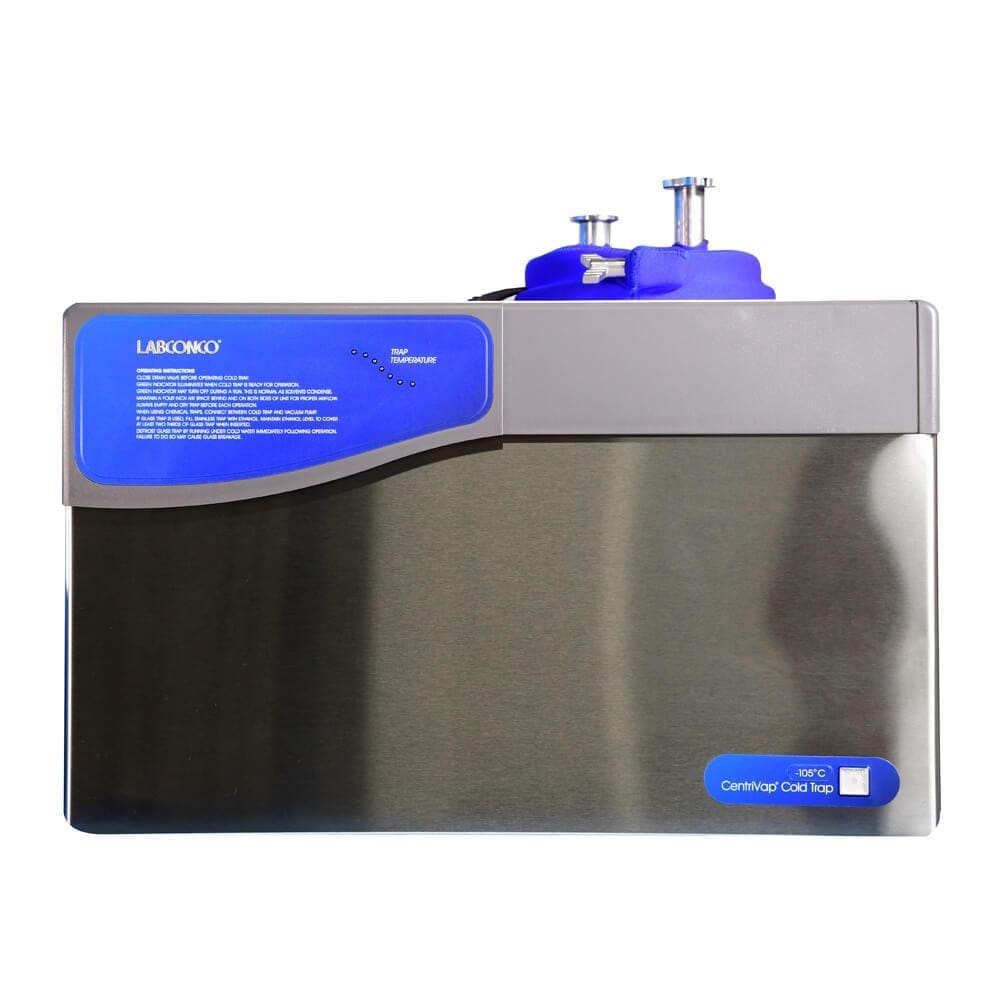

• Labconco -50°C Refrigerated Base
• Green CFC / HFC Free Refrigerants
• KF-25 Inlet/Outlet, Connection Line & Hardware
• Power Cord
• 3mm Neoprene Insulator Cap

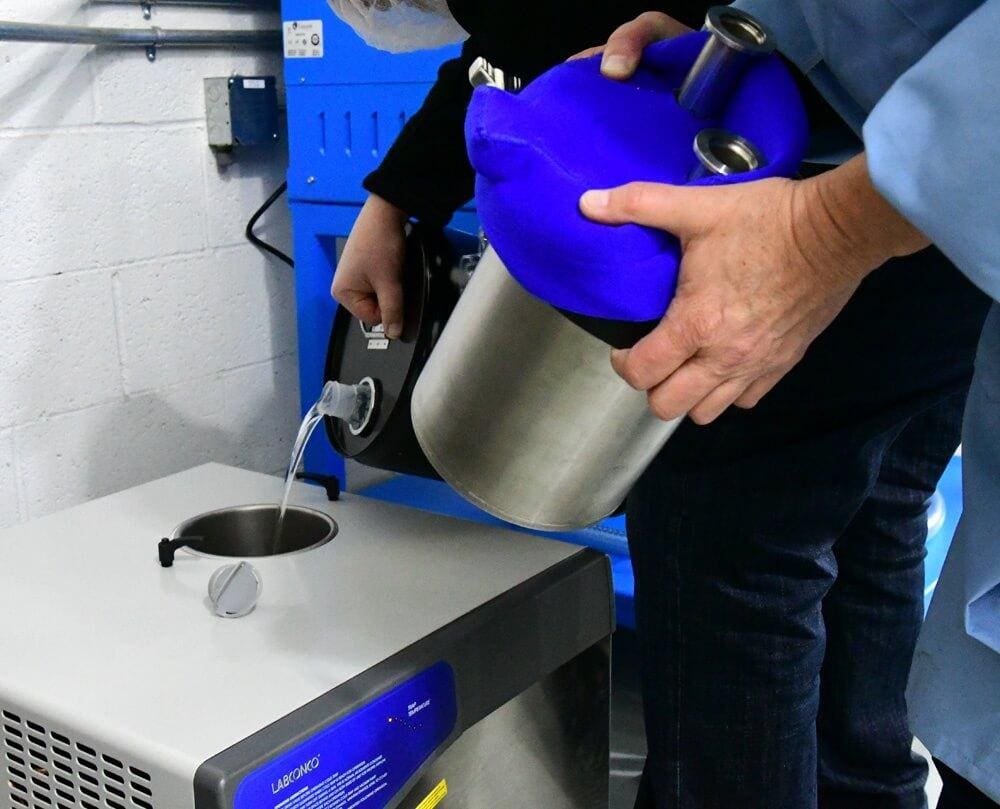

• Requires 800ml (~ 3.5 cups) of a transfer fluid such as ethanol. Not Included. Cascade recommends: ethanol, glycol, cryo-cool fluids
• Quality Made in USA
• NRTL Certified

Model CVO-10 Vacuum Oven

VOLUME

9.3 Cubic Ft. (263 Liters)

SHELVES

9 total (max), removable
Full-extension, stay in place
Integrated copper strips optimize temp transfer
Surface area: 28″W x 24″D
Weight Capacity Per Shelf: 50 lb / 22.7 kg
Approx 930 cubic inches of volume

OVEN INTERIOR

28”W x 24”D x 24”H
711mm x 609mm x 609mm

OVEN EXTERIOR

(not including rack)
42” W x 40” D x 67.4”H
1067mm x 1021mm x 1712mm

WEIGHT

Shipping: 775 lb/ 352 kg
Net Weight: 663.0 lb/ 301 kg

TEMPERATURE RANGE

Ambient +26° to 302°F / Ambient +15° to 150°C

TEMPERATURE UNIFORMITY

@ 105°F  +/- 0.2°F – ±2.0°F
@ 200°F +/-0.4°F – ±5.5°F
@ 300°F +/- 0.2°F – ±8.0°F

@40°C +/- 2°C – ±1.0°C
@90°C +/- 3°C – ±3.0°C
@150°C +/- 4.5°C – ±4.5°C

TEMPERATURE STABILITY

@ 105°F  +/- 0.2°F – ±0.2°F
@ 200°F +/-0.4°F – ±0.4°F
@ 302°F +/- 0.2°F – ±0.2°F

@40°C +/- 0.1°C – ±0.1°C
@93.3°C +/- 0.2°C – ±0.2°C
@150°C +/- 0.1°C – ±0.1°C

HEAT UP TIME FROM AMBIENT

@ 105°F / 40.5°C – 42 min
@ 200°F / 93.3°C – 94 min
@ 302°F / 150°C – 175 min

COOL DOWN TIMES

@ 105°F / 40.5°C – 330 min
@ 200°F / 93.3°C – 94 min
@ 302°F / 150°C – 420 min

*Temperature performance specifications are preformed in empty ovens. Performance can vary in ovens containing product.

VACUUM VALVE

Side Mounted Round

VENT VALVE

¼ Turn Lever
½” diameter line

GLASS WINDOW

Tempered NGI-US to ANSI Z97.1.2007
Interior lighting

VACUUM GAUGE

Reads in inches mercury or torr
(Selectable)

CONTROLLER

Touch Screen
Accurate Within 1°F
Independent Overtemp Failsafe

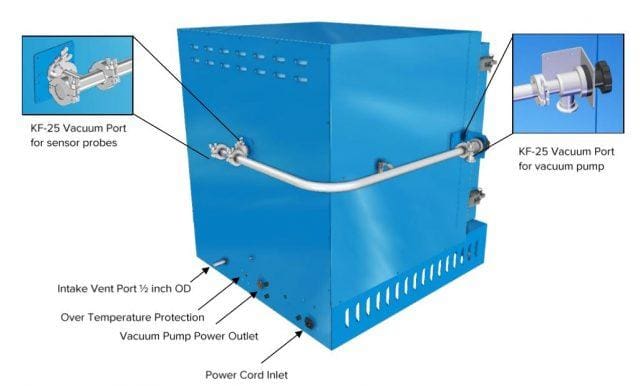

PORTS (REAR)

Vacuum = KF-25 Port
Vent = 1/2” Barb

INERT GAS INTRODUCTION

Yes. Via 1/2” Vent Barb
15 psi max inlet pressure

POWER

220V – 240V / 1ph / 10A 50/60Hz
Cord Included
NEMA 6-15R Power Outlet
(System will run on 208V)
Oven BTU Rating at 250ºF: 6980 BTUs/hr at full capacity

AGILENT IDP15

AGILENT PART NUMBER

X3815-64000

Pump Type Oil-Free, Scroll

PUMPING SPEED

9 CFM

ULTIMATE PRESSURE

10 x 10^-3 Torr

POWER

120V / 1ph (220V available)

INTAKE CONNECTION

KF-25

DIMENSIONS

L 19.08” x W 9.22” x H 14.3”

WEIGHT

75 lbs

MAXTRAP50

COLDWELL STAINLESS TRAP

KF25 Inlet & Outlet
3 Quart Capacity (2839 mliters)
Viton Gasket
Neoprene Insulator Cap
Labconco -50°C MECHANICAL BASE

POWER

115V / 1ph / 3 AMP (60Hz)
Cord Included
CFC / HCFC Free Refrigerants

MAXTRAP 105 DIMENSIONS

inches 13.5 W x 23.5 D x 12.0 H
cm 34.3 x 59.7 x 30.5

*Requires 800ml (~ 3.5 cups) of transfer fluid
(ethanol, glycol, cryo-cool fluids)

INCLUDED CONNECTIONS

1 each 4′ KF-25 flanged vacuum rated line
1 each KF-25 Centering Ring
1 each KF-25 Clamp

WEIGHT:

COLDWELL Stainless Trap 14 lbs
Thermo Mechanical Base 60 lbs
Shipping Weight 95 lbs

BTU Rating at 250ºF 6980 BTUs/hr at full capacity

*Temperature performance specifications are preformed in empty ovens. Performance can vary in ovens containing product.
