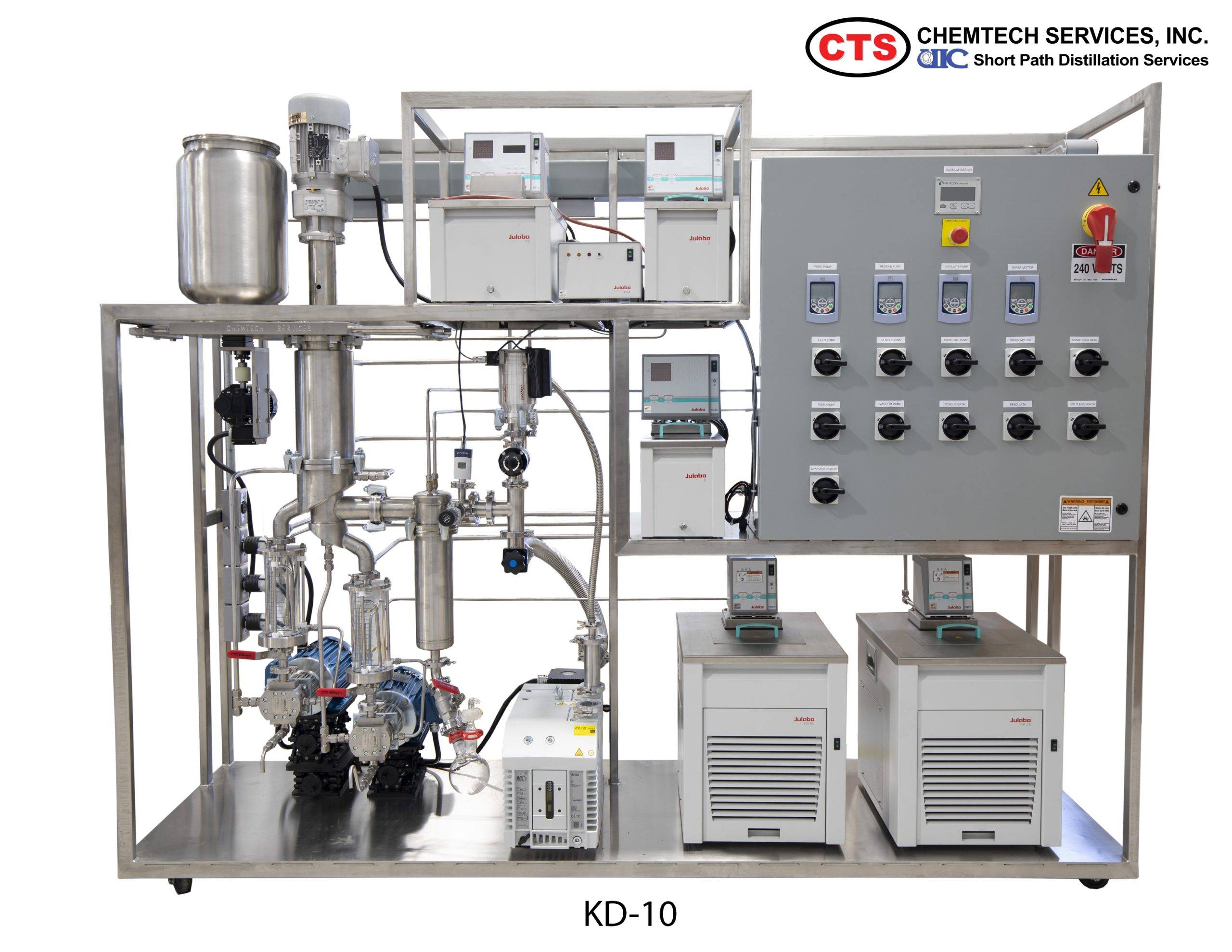

Chemtech Single Stage KD-10 Short Path Distillation Unit

Description

SUPPORT FRAME SYSTEM

• 304ss Frame
• Dimensions: 100″L 32″W 83″H

FEED SYSTEM

• 25 Liter Hot Oil Heated Feed Tank
• Gear Pump Feed Metering System
• Heated Evaporator Support Plate

EVAPORATOR

• 316 Stainless Steel
• 0.100 Sq. Meter Surface Area
• Estimated Process Rate 7 Liter/hour*

CIRCULATORS

• Feed Circulator 3kw; 0-250°c
• Evaporator Circulator 9kw; 20-300°c
• Residue Circulator 3kw; 0-250°c
• Condenser Circulator 2kw Heat/500w Cool; -50-200°c
• Cold Trap Circulator 2kw Heat/500w Cool; -50-200°c

SAMPLE COLLECTION

• Hot Oil Heated Gear Pumps
• 1L Cold Trap Receiving Flask

VACUUM SYSTEM

• Backing Rotary Vane Pump 40 M3/hour
• Turbomolecular Pump 90 L/sec​

CONTROL SYSTEM

• UL 508 Rated Electrical Control Cabinet
• PLC System Optional

MISCELLANEOUS

• Installation and Training Included
• GMP Compliance Documentation Available
