Delta Separations RFD-27 Rolled Film Short Path Distillation
$184,741.00
Delta Separations RFD-27 Rolled Film Short Path Distillation
Our Rolled Film Short Path Distillation technology is the final step in the processing of high-quality distillate. The RFD-27 is engineered to refine targeted compounds from crude botanical extracts and deliver clear distillate at fast speeds. Featuring durable stainless-steel construction to enhance heat transfer capacity, the RFD-27 is a must-have for your ethanol extraction suite if you’re wanting to produce the highest quality and purity of Category A distillate.
Efficient
The RFD-27 removes undesirable compounds to create beautifully clear finished oil by utilizing rollers to increase the evaporative surface area and the use of agitation which facilitates an efficient process with superb heat transfer capacity.
Versatile
RFD-27 is highly configurable allowing the operator to manually dial in settings and parameters based on SOP
Technical Specs
Production CapacityÂ
- Surface area: 0.27m²
- System feed rate: 4-5 liters per hour*
- Jacketed feed tank: 5 liters
- Collection tanks: 7.5 liters
Standard Features
- 316L Stainless steel construction
- Ultra-high vacuum liquid nitrogen
- Dry pumps included
| Specifications | ||
|---|---|---|
| Dimension | 67″L x 24″W x 77.54″H 170 cm L x 61 cm W x 197 cm H |
|
| Weight | 600 lbs 272 kg |
|
| Electrical Requirements | 110V & 230V Single-Phase, Ful-Load-Amperage (FLA): 60 |
|
| Vacuum System |
|
|

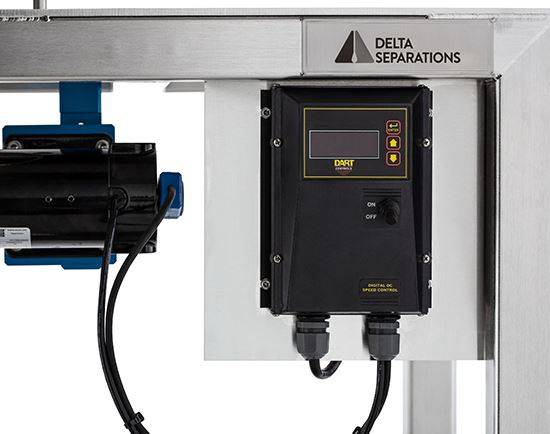

| Roller Controller | 100-240V, 1 amp, single-phase 1x NEMA 5-15 plug |
|
| Feed Pump | 110V, 5 amps,single-phase, 50/60 Hz 1x NEMA 5-15 plug |
|
| Integrated Components | ||
| Vacuum System (Gauge controls) |
100V-240V, 6 amps, single-phase 50/60 Hz 1 x NEMA 5-15 |
|
| Vacuum Pump | 100V-240V, 10/6 amps, single-phase 50/60 Hz 1 x NEMA 5-15 |
|
| Heating and Cooling System Heater 1 |
230V, 13 amps,single-phase, 50/60 Hz 1 x NEMA 6-20 plug |
|
| Heating and Cooling System Heater 2 |
1kW, 230V, 9 amps,single-phase 1 x NEMA 6-20 plug |
|
| Heating and Cooling System Chiller – Condenser |
230V, 16 amps,single-phase 1 x NEMA 6-20 plug |
|
Clarity
Target desired botanical compounds to create beautifully clear distillate—the highest quality and purity Category A distillate.
Learn More About Rolled Film Distillation with the RFD-27
We chose to incorporate rollers in lieu of wipers in the RFD-27 taking advantage of the additional evaporative surface area created while the rollers are not in contact with the evaporator cage increasing efficiency and throughput.
Additionally, a liquid nitrogen cold trap has been incorporated to provide extensive protection to the delicate rotors of the turbo molecular pump from what terpenes may have made it past the terpene strip.
Finally, the use of steel as the base material for the machine infrastructure avoids incidences of breakage due to negligence or wear and tear. Glass construction is useful for learning purposes, but accounting for the price of redundant glassware can be cumbersome.
For an affordable price, the RFD-27 provides a consistent, high quality distillate at a feed rate of 4-5L/hr. With a service team that’s ready and able, Delta Separations’ platform is designed with the operator in mind.
