ENTEXS CWE-200
SKU: VJQ-099-3d
Categories: Cold Water Extraction, TurnKey Systems
Tags: Automated, Closed Loop, Cold Water Extraction
Brand: Entexs

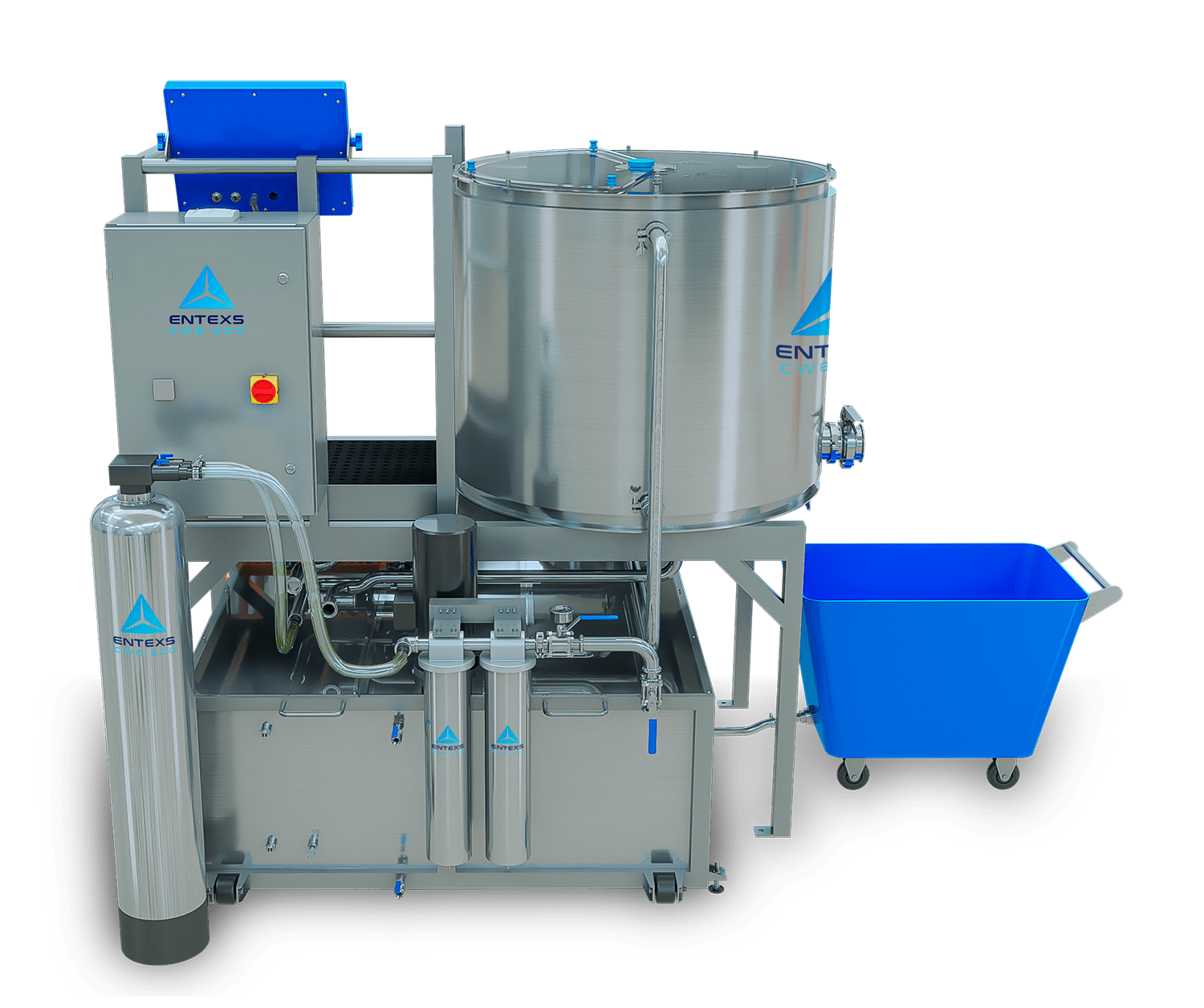

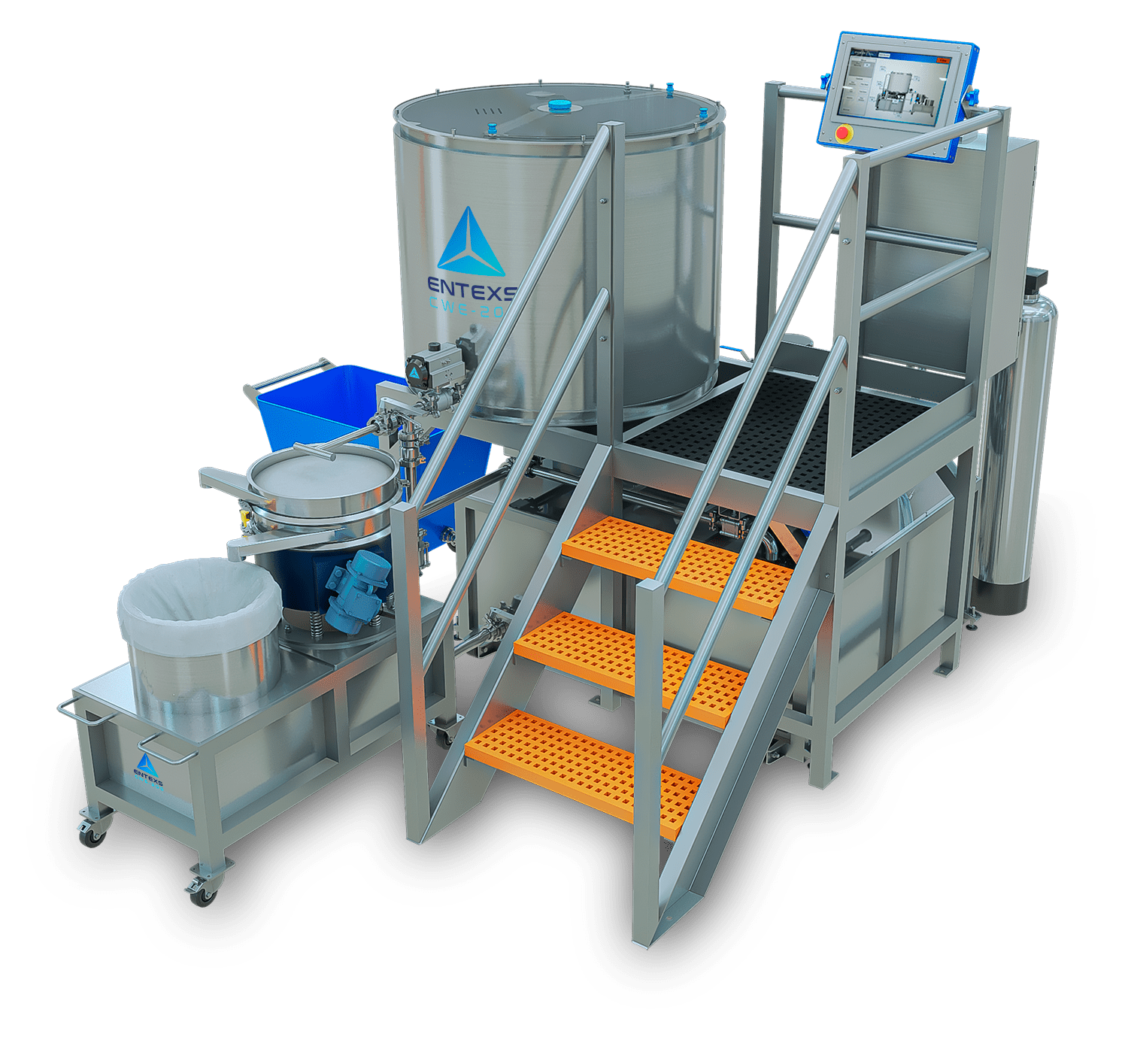

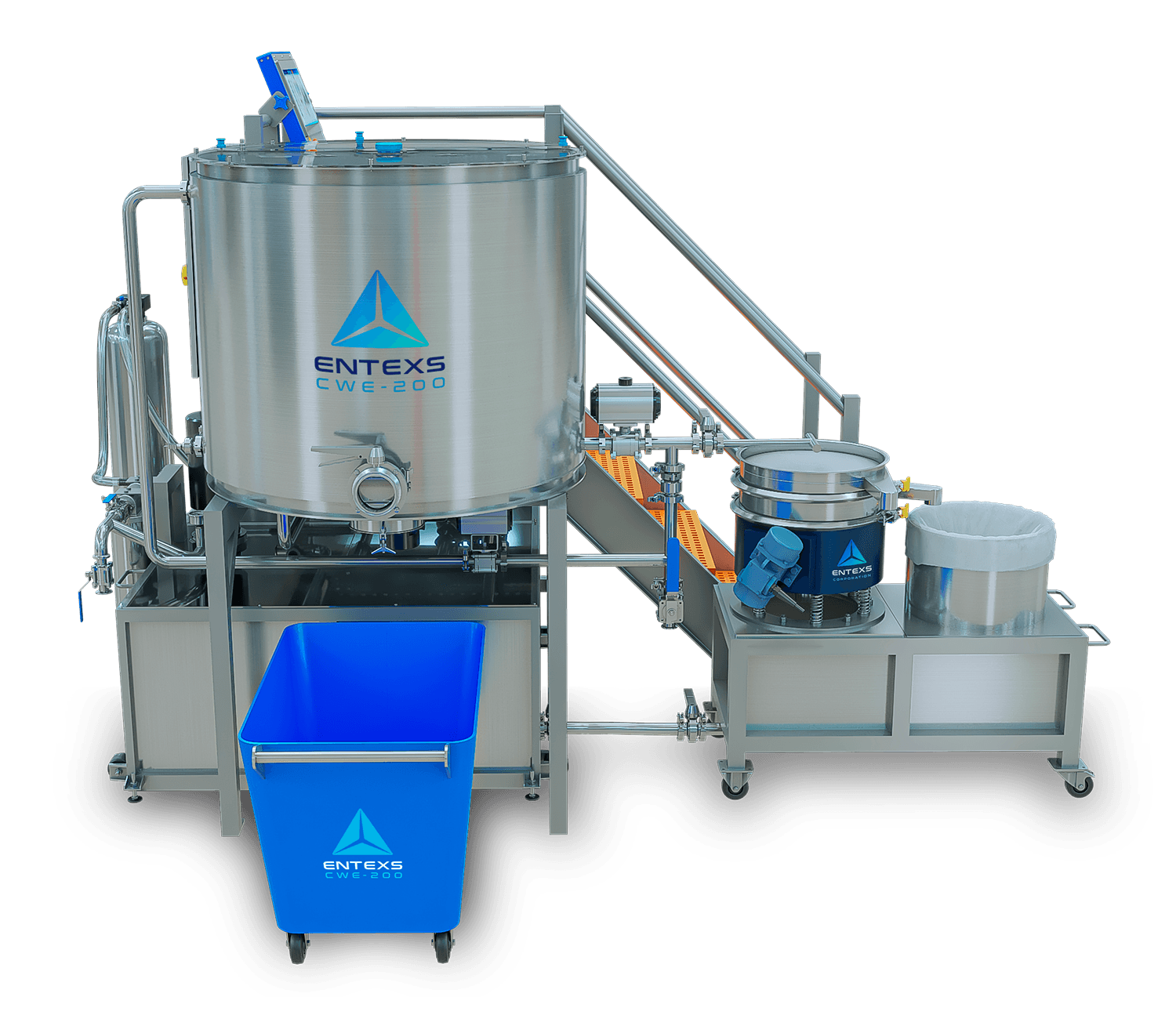

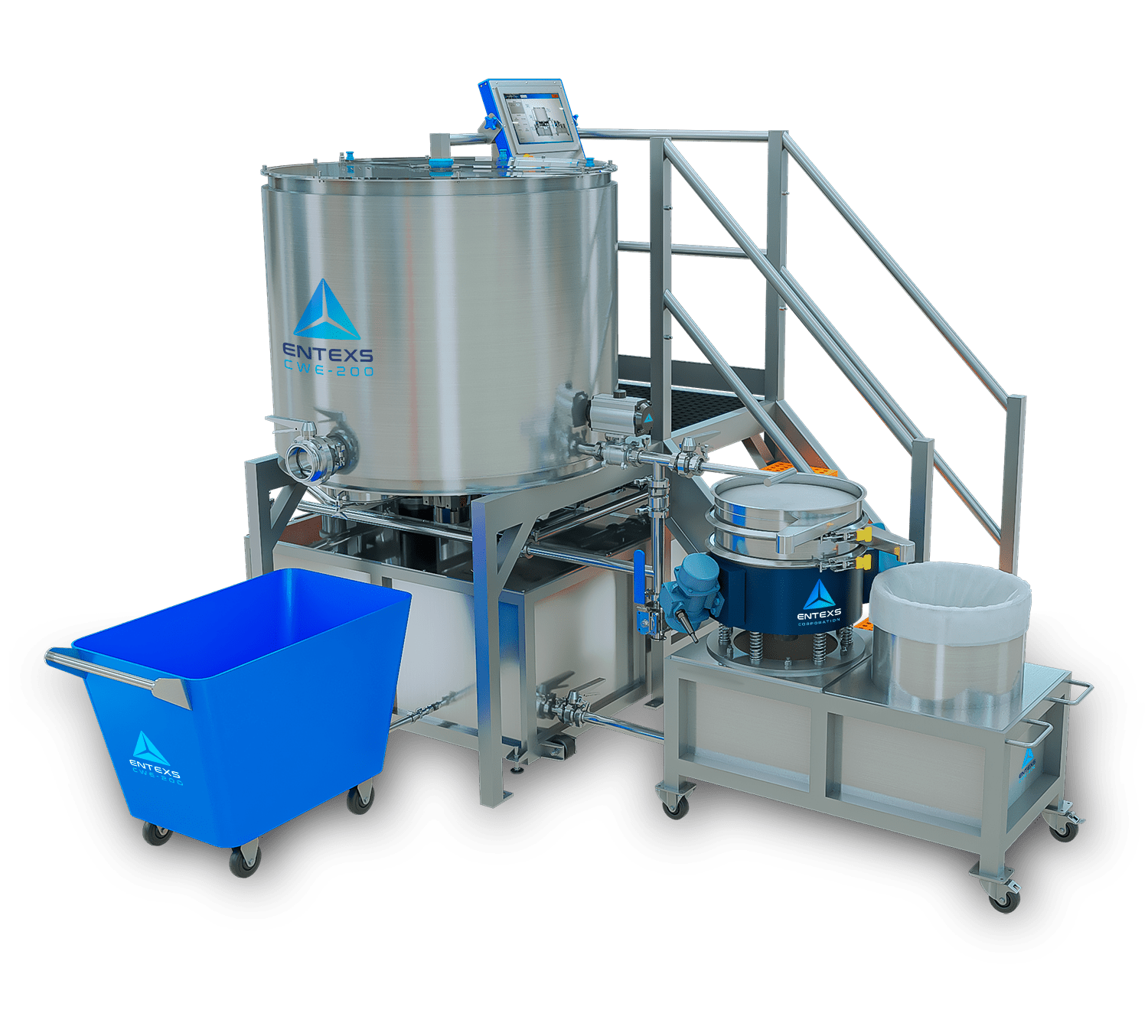

The ENTEXS CWE-200 provides a high-quality, automated cold water extraction solution with simple temperature control via ice or chiller. Utilizing a large insulated extraction vessel capable of processing up to 200 lbs of fresh frozen biomass, the CWE-200 features bottom entry mixer agitation with flow control baffles to optimize trichome separation, multi-stage vibratory collection filters with continuous product collection, and a bottom discharge hatch for spent biomass. The CWE series of extractors feature ergonomic platforms for access and service, and parameter access for extraction routines with in-place, and remote HMI access. Engineered and built in the USA.
Hands-free Technology
No-touch process throughout the extraction process eliminates potentially reduced efficiencies,
compromised quality, increased labor, and safety risks.
Fully Automated
User configured routines and flow control from biomass to full-spectrum crude, distillate, and/or isolate
Cloud Network
From your phone or computer, real-time and trend monitoring of the extraction process
can be leveraged to optimize efficiency.
Closed Loop System
Solvent temperature control maintains precise extraction temperature.
Combined with our automation, complete control over final product states can be configured and run.
No Ice Needed
MECHANICAL SPECIFICATIONS:
FOOTPRINT: 96”(W)X48”(D)X78”(H) *CAN FIT THROUGH 40” FACILITY DOORWAY
VOLTAGE: 208/240/400/480 50/60HZ (CONFIGURABLE)
MATERIALS OF CONSTRUCTION: 304 / 316SS TYP
TEMPERATURE: -10 C CHILLER SETPOINT
POWER: 6 KW (W/O CHILLER)
SYSTEM MODULES:
EXTRACTION VESSEL (JACKETED/INSULATED W AGITATION)
200-GALLON JACKETED/INSULATED AGITATION
COLD WATER SUMP (255GAL CAPACITY)
RECIRC PUMP
HEAT EXCHANGERS
TRIPLE STAGE RECIRC FILTERS
SKID/PLATFORM
SANITARY PROCESS PIPING
VALVES (PNEUMATIC/MANUAL)
CONTROL CABINET
SYSTEM SENSORS (TEMP, PRESSURE, LEVEL)
HMI / PLC AUTOMATION PACKAGE
PROCESSING SPECIFICATIONS:
