Our Micro Chill Series offers compact chillers available in 3 HP, 5 HP and 7 HP to cover the range of needs in smaller process cooling applications. With an oversized stainless steel reservoir and heavy-duty process pump with a built-in fluid dynamic bypass valve, these compact chillers provide precise cooling with the same quality components as their larger siblings, but in a more compact design with an equally compact price.
KEY SPECS

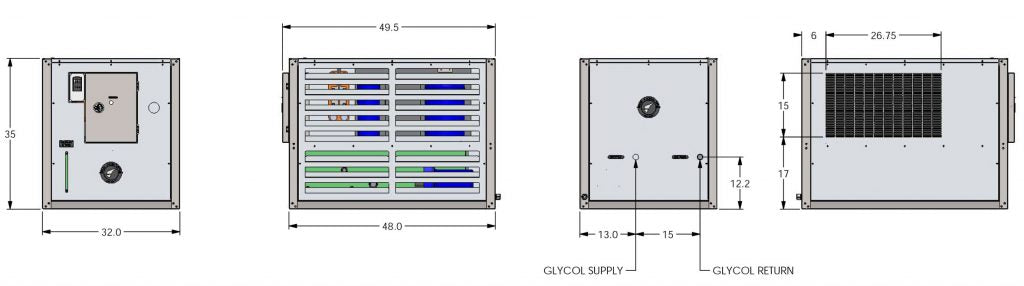

(WxLxH):34” X 61” X 50”
Tank Volume:60 GALLONS
Process Pump:1.5 HP
GPM @ 25PSI:40 GPM
Operating Weight:1450 LBS.
Connection Size:1″
FEATURES
Complete refrigeration circuit
Engineered high-efficiency heat exchanger for maximum energy savings
Glycol pump
Dynamic fluid bypass valve
Insulated stainless steel glycol reservoir with level indicator
All insulated copper piping
High and low-pressure controls
Freeze stat safety switch
High temp alarm
Low ambient control
Anti-cycle timer to prevent short cycling of the compressor
On/pump down/off switch
Single-stage digital temperature controller for simple operation
Supply and return ball valves
Fully powder-coated steel frame
Powder-coated aluminum housing
ETL 508A listed complete control panel with single point electrical connection, breakers, starters & safety switches
Louvered access panels for easy service and maintenance
Factory run tested and fully charged with refrigerant
