Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculation fluid temperature and gives you best control over your work. It also helps prevent frost to form on the outside of the vessel, allowing you to see clearly into your material.
Feature
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
All glassware is hand-made from food grade high borosilicate 3.3 glass that is heat/cold/corrosion-resistant.

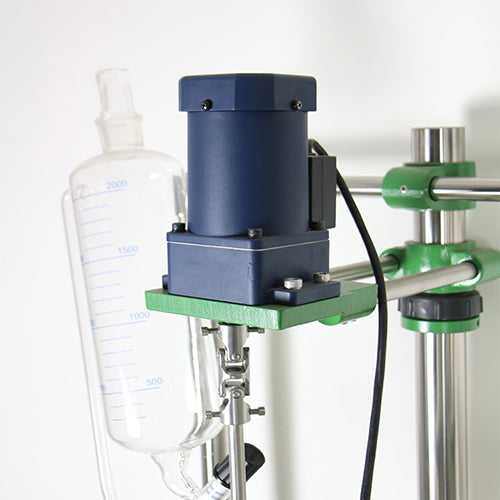

Adjustable stirring rate provides great torque or high speed.
Patented PTFE stirring rod bearing for reliable and quiet operation.
Optional multi-layer stirring blades for optimal reaction results.
Wide range of temperature operations, from-60°C to 200°C.

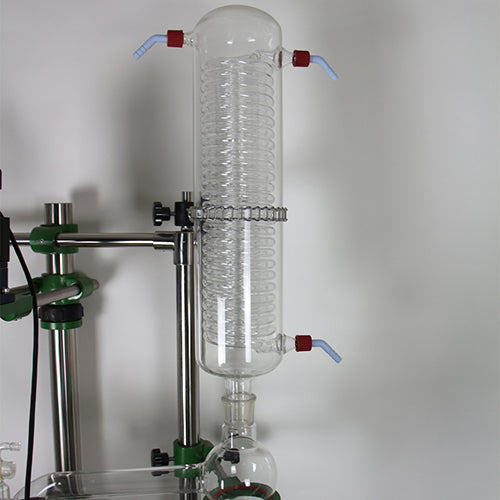

Large condenser cooling surface for exceptional condensation performance.
Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
Easily visual operation with digital speed and temperature displays.
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
Easy-to-install modular design for exceptional ease and low cost of maintenance
Zero dead space bottom valve design
Specification
Model
JGR20L
Power supply
220V/50-60HZ
Reaction glass vessel capacity(L)
20
Cooling/heating jacket capacity(L)
6
Discharge
PTFE(Teflon) bottom discharge valve
Overall dimension(mm)
800*550*2100
Condenser cooling area
0.2Â m2
Working temperature
-6~200℃
Stirring speed(rpm)
0~600
Stirring power
120W
Agitator
Anchor design, 304 stainless steel coated with reinforced PTFE
Agitator material can be customized as clients’ requirement
Funnel
Pressure equalizing
Condenser
Dual-cooling coil design
Max Jacket pressure
0.5 bar
Bottom Drain Valve
Zero dead space detachable PTFE drain valve
Number of Necks (can be customized as clients’ requirement)
