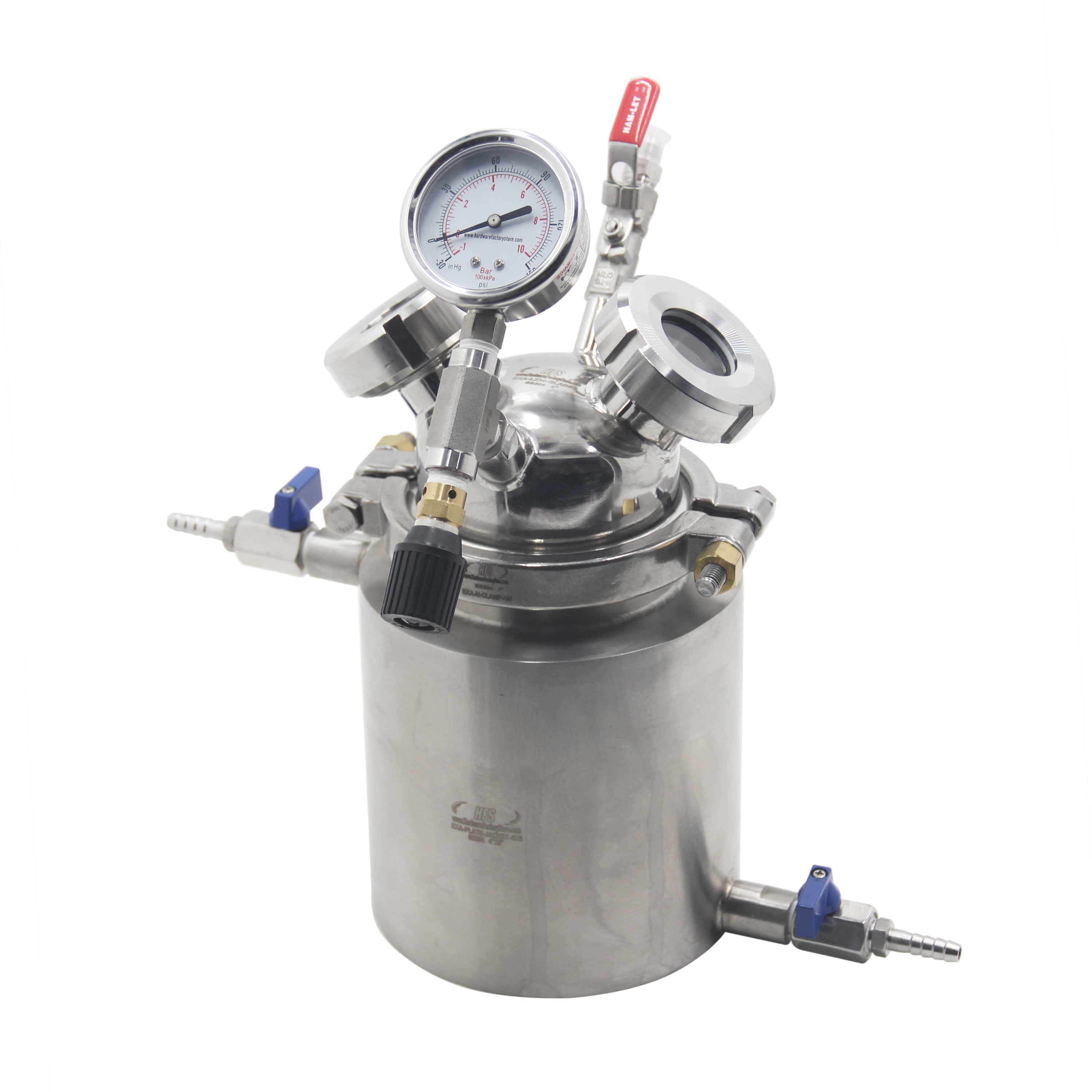

Jacketed Diamond Miner 4″ x 6″, 1.5 LBS, Ready to Use

This system was designed with durability, control, and reliability in mind. The adjustable pressure release valve assures for consistency in every batch, while the intelligently placed top view, shatter resistant sight glasses allow for easy viewing. This ultimate mining tool is ready to be used to achieve maximum diamond yields.

Features:

• Stainless Steel Body
• Jacketed Tank with Barbed Adapters
• Top View Sight Glasses
• Adjustable Relief Valve
• Stainless Steel Pressure Gauge
• 1/4″ SAE Inlet/Outlet
• 1.5 LBS Capacity
• Ready to use; Assembled and Pressure Tested

Components:

• Lid: 4″ Tri Clamp Hemispherical Lid, (2) Sight Glass
• Gauge: Utility Stainless Steel Vacuum Pressure Gauge, 2.5″, -30 HG-150 PSI
• Valve: Single Piece Stainless Steel Valve, 1/4″ FNPT x 1/4″ FNPT
• Adapter: Stainless Steel Adapter, 1/4″ MNPT x 1/4″ MSAE
• Relief Valve: 0-100 PSI Adjustable Air Pressure Relief Valve
• Collection Plate: Stainless Steel Tri Clamp Jacketed Collection Plate, 4″ x 6″
• Gasket: Tri Clamp Viton Gasket, 4″
• Clamp: High Pressure Clamp, 4″

Specifications:

• Diameter(in) : 4.00
• Height(in) : 6.00
• Radius(in) : 2.00
• Volume : 75.36
• Volume(Liters) : 1.08
• Volume(Gallon) : 0.29
• Sleeve/Jacket Volume(Liters) : 1.75
• Sleeve/Jacket Volume(Gallon) : 0.46
• Butane Capacity(LB) : 1.33 – 1.67
• Propane Capacity(LB) : 1.06 – 1.32
• Material Capacity(LB) : 0.39 – 0.56
• Nugget Ice Capacity(LB) : 1.78
