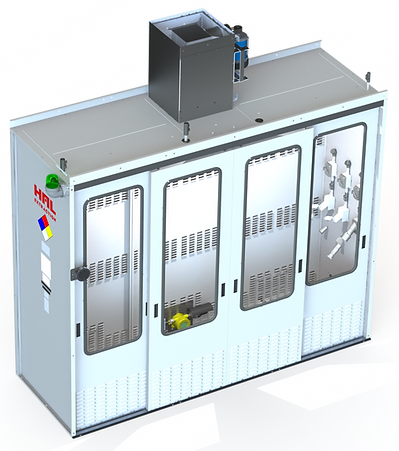

Hood Series Standard Package

• 8’5″ Interior Height

• 10’0″ Exterior Width

• Minimum Base Air Flow Rate: 500 CFM

• Minimum Purge Air Flow Rate: 1500 CFM

• Explosion-proof, Class I, Division 1, 2-tube interior light fixtures

• Extra-long life, flammable gas infrared sensor

• Make-up air and exhaust ventilation system

• Sliding doors with ventilation slots and windows

• Cross-capture ventilation

• Professional engineer peer-reviewed design

• Peer-reviewed by Pressure Safety Inspectors (PSI)

• Explosion-proof exhaust and supply fans

• Light and sound alarm set to go off at 10% and 25% of LEL, respectively

Specifications:

Electrical Supply | (1) 15-amp 208-240VAC, 1-PH circuit

Door Dimensions | 9’9″ W x 8’0″‘ 1-1

(Max opening during operations: 47.5″ W x 8’0″ H)

Air Flow Rate
Base Rate | Minimum Required 1000 CFM
Purge Rate | Minimum Required 2000 CFM

Sensor Set Points
0-10%LEL | Green Light Beacon + Purge Flow
10-25% LEL | Amber Light Beacon + Purge Flow
25%+ LEL | Red Light Beacon + Purge Flow + Sound Alarm

Fully compliant with OSHA, NFPA, NEC regulations

Compliance

PEER-REVIEWED

HAL Extraction Product Lines Achieves PSI Technical Report Certification in 50 States

HAL Extraction Booths and Hoods have been Peer-reviewed by Pressure Safety Inspectors (PSI)
