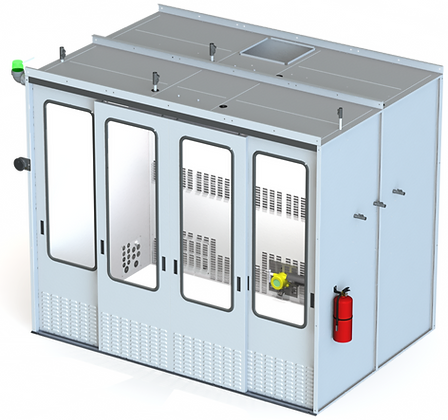

Hood Series: Model 55
- Interior Square Feet: 55 Square Feet
- Interior Dimensions: 9′ 9″ W x 5′ 7.5” D x 8′ 2″ H
- Exterior Dimensions: 10′ W x 6′ 10.5″ D x 8′ 5″ H
- Configurations: CID2
Hood Series Standard Package
-
8’5″ Interior Height
-
10’0″ Exterior Width
-
Minimum Base Air Flow Rate: 500 CFM
-
Minimum Purge Air Flow Rate: 1500 CFM
-
Explosion-proof, Class I, Division 1, 2-tube interior light fixtures
-
Extra-long life, flammable gas infrared sensor
-
Make-up air and exhaust ventilation system
-
Sliding doors with ventilation slots and windows
-
Cross-capture ventilation
-
Professional engineer peer-reviewed design
-
Peer-reviewed by Pressure Safety Inspectors (PSI)
-
Explosion-proof exhaust and supply fans
-
Light and sound alarm set to go off at 10% and 25% of LEL, respectively
Specifications:
Electrical Supply: Â (1) 15-amp 208VAC, 1-PH circuit
Door Dimensions: 9’9″ W x 8’0″‘ 1-1
(Max opening during operations: 47.5″ W x 8’0″ H)
Air Flow Rate
Base Rate | Minimum Required 1000 CFM
Purge Rate | Minimum Required 2000 CFM
Sensor Set Points
0-10%LEL | Green Light Beacon + Purge Flow
10-25% LEL | Amber Light Beacon + Purge Flow
25%+ LEL | Red Light Beacon + Purge Flow + Sound Alarm
HAL Hoods have been evaluated by a third-party professional engineering firm, Pressure Safety Inspectors (PSI),licensed in all 50 states. The HAL Booth has be reviewed and approved using the following codes and standards
Fully compliant with OSHA, NFPA, NEC regulations
Compliance
PEER-REVIEWED
HAL Extraction Product Lines Achieves PSI Technical Report Certification in 50 States
HAL Extraction Booths and Hoods have been Peer-reviewed by Pressure Safety Inspectors (PSI)
