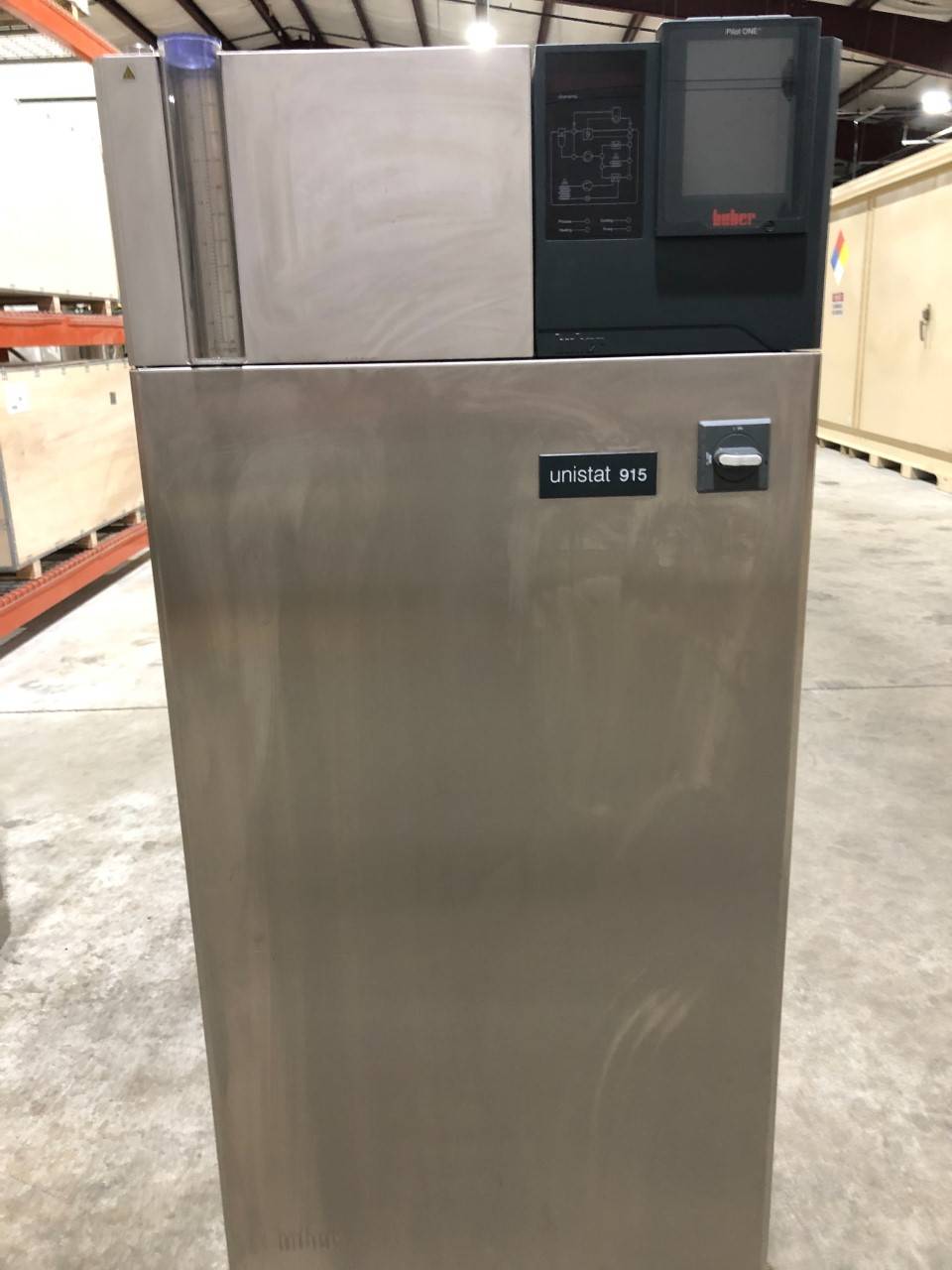

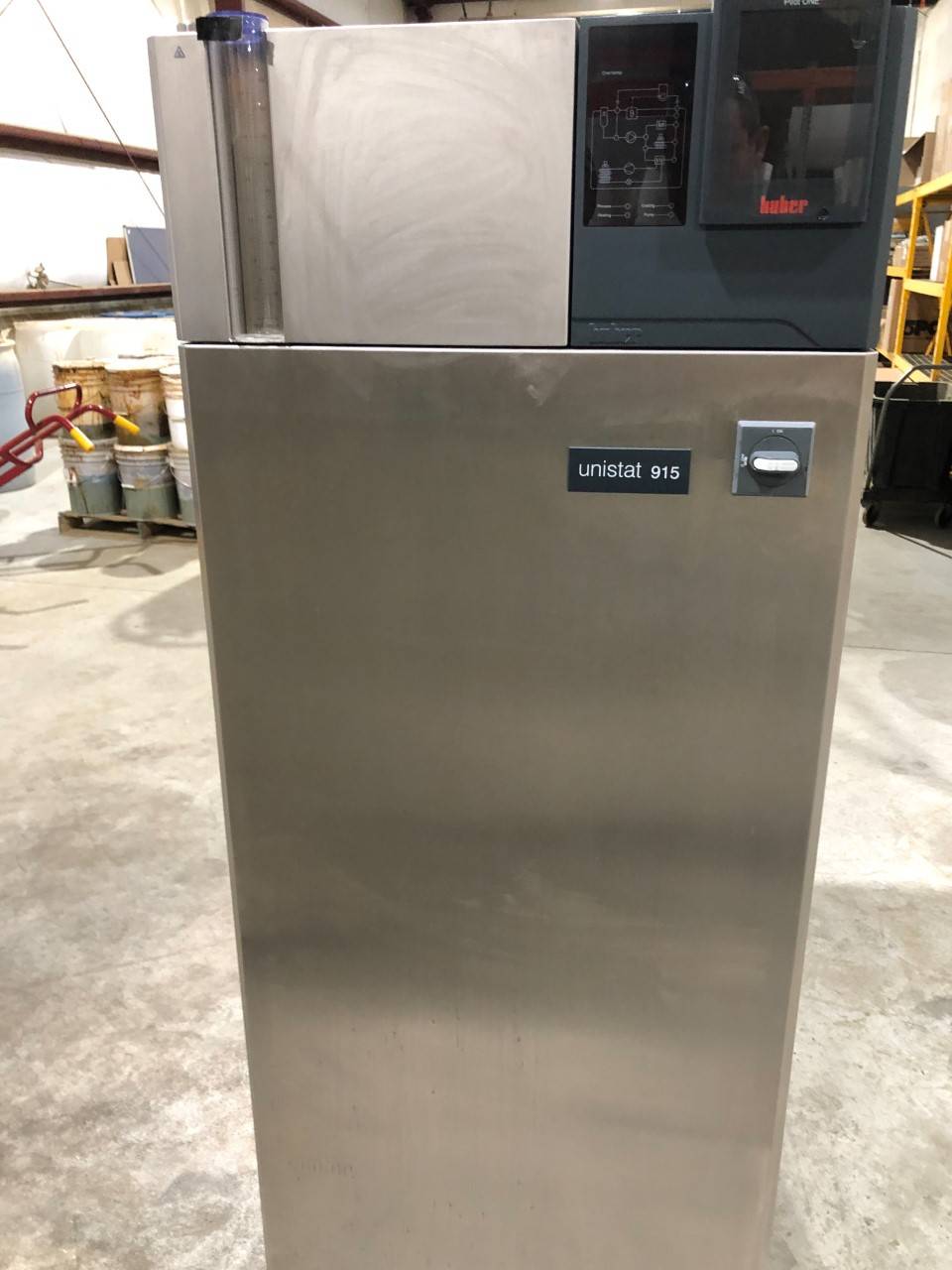

HUBER Unistat 915w -90°C To 250°C With Pilot ONE (Pre-Owned)

The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7 touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time. Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

Huber Unistat 915w features

• Precise and reproducible temperature control results
• Fastest heating and cooling rates
• Wide temperature ranges with no fluid change
• Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
• Adaptive temperature control, self-optimising
• Efficient circulation pump
• 2 x USB (Host and Device), Ethernet and RS232 interfaces
• Efficient operation saves working time and operating costs
• Proven functionality for the process industry


  General information & temperature controller
  Temperature range	-90…250C
  Temperature stability	0,01C
  Temperature control	TAC, self-optimizing (True Adaptive Control)
  Display resolution	0,01C
  Alarm message	optical, acoustical
  Controller	Pilot ONE (E-grade”Professional”)
  Safety class	III / FL
  Protection class	IP20
  Dimensions(W x D x H)	630 x 704 x 1565mm
  Weight	362kg
  Heating / cooling capacity
  Heating capacity	6kW
  Cooling capacity	250 200 100 0 -20 -40 -60 -80 -90 C 11 11 11 11 11 8 4 1,1 0,4 kW
  Cooling machine	water-cooled
  Refrigerant1. stage	R452A (2,9 kg)
  Refrigerant2. stage	R23 (1,23 kg)
  Circulation pump
  Pressure pump max.	110 l/min;1,5 bar
  Pump connection	M30x1,5 AG male
  Permissibleviscosity	50mm/s
  Connections
  Pt100 connection	Pt100
  Analogueinput	via optional Com.G@te
  Analogueoutput	via optional Com.G@te
  Digital interface	RS232, Ethernet, USB Device, USB Host
  Operating data
  Permissible ambient temp.	5…40C
  Sound pressure level	64dB(A)
  Filling volume min.	3,9Litres
  Volume of expansion	6,5Litres
  Cooling water connection	G3/4 AG
  Cooling water differential pressure min.	1bar
  Cooling water pressure max.	6bar
  Power supply	460V 3~ 60Hz
