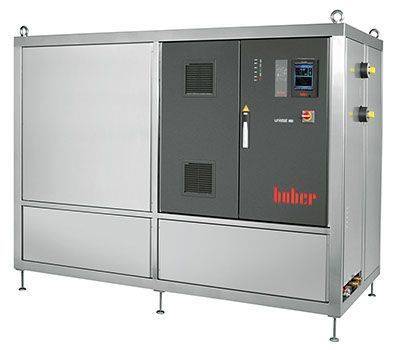

HUBER Unistat 950w -90°C to 200°C with Pilot ONE

The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7 touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time. Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

Huber Unistat 950w features

• Precise and reproducible temperature control results
• Fastest heating and cooling rates
• Wide temperature ranges with no fluid change
• Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
• Adaptive temperature control, self-optimising
• Efficient circulation pump
• Data communication via LAN, internet, USB, RS232 and RS485
• Efficient operation saves working time and operating costs
• Proven functionality for the process industry
• E-grade “Professional” included

Click here to download product brochure

Click here to visit Huber website for details

General information & temperature controller
Temperature range	-90…200C
Temperature stability	0.01C
Temperature control	TAC, self-optimizing (True Adaptive Control)
Display resolution	0.01C
Alarm message	optical, acoustical
Controller	Pilot ONE (E-grade”Professional”)
Safety class	III / FL
Protection class	IP20
Dimensions(W x D x H)	2630 x 1300 x 1980mm|103.54 x 51.18 x 77.95inches
Weight	–kg|pounds
Heating / cooling capacity
Heating capacity	36kW
Cooling capacity	200 100 20 0 -20 -40 -60 -80 C 36 36 36 36 36 36 25 10 kW
Cooling machine	water-cooled
Refrigerant1. stage	R452A
Refrigerant2. stage	R23 (7 kg)
Circulation pump
Pressure pump max.	240 lpm;4 bar|63.41gpm;58psi
Pump connection	Flansch DN40 PN10/40 EN1092-1
Permissibleviscosity	100mm/s
Connections
Pt100 connection	Pt100
Analogueinput	via optional Com.G@te
Analogueoutput	via optional Com.G@te
Digital interface	RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.	5…40C
Filling volume min.	30Liters|7.93gal
Volume of expansion	90Liters|23.78gal
Cooling water connection	G1 1/4 AG
Cooling water differential pressure min.	3bar|43.5psi
Cooling water pressure max.	6bar|87psi
Power supply	460V 3~ 60Hz
