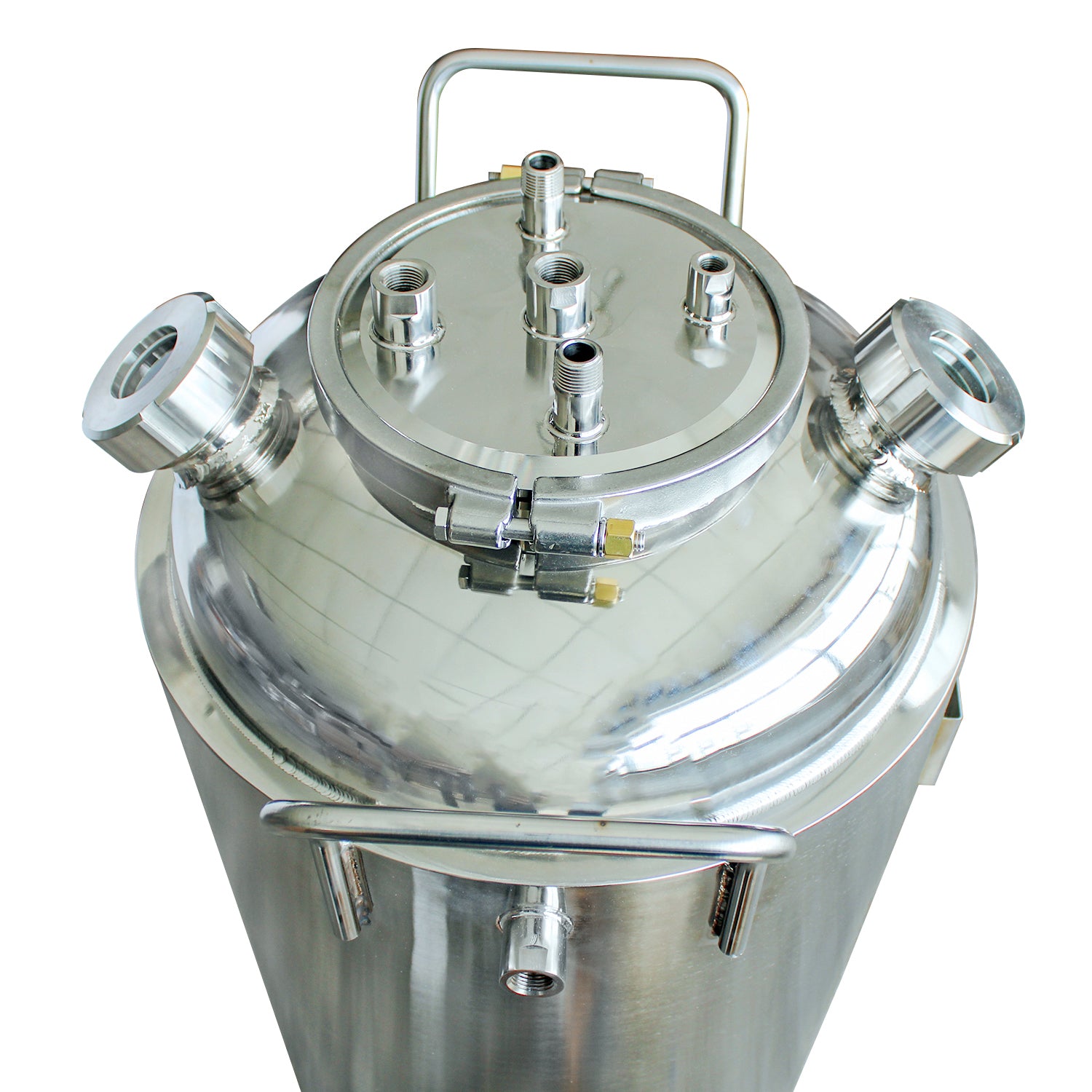

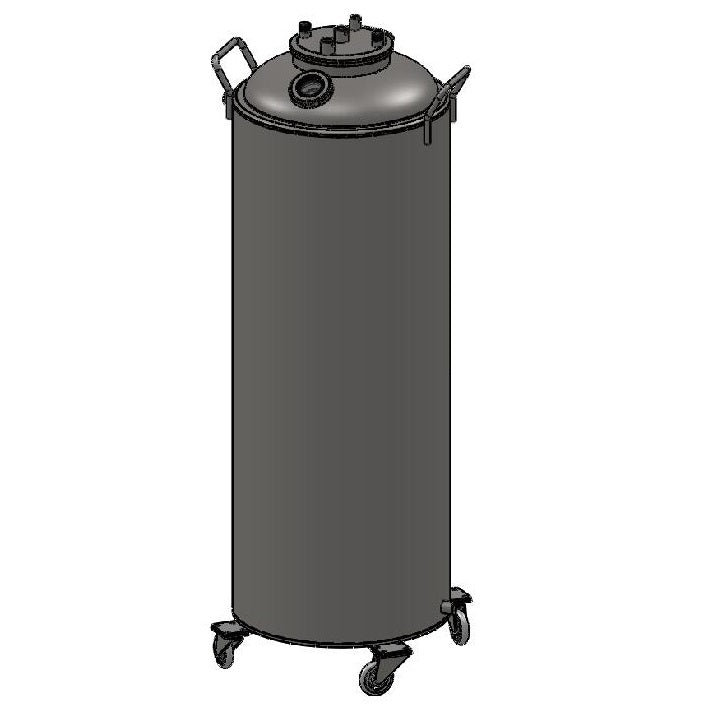

Jacketed Solvent Tank, 16×48”, Pressure Tested, Ready to Use

Features: Vessel
Material: Stainless Steel
Tri Clamp Lid Size (IN): 8
Liquid Line Connection (IN): MJIC 1/2
Vapor Line Connection (IN):  MJIC 1/2
Wall Density (MM): 5
Max Temp. (F): 250
Max Pressure (PSI): 150
Jacket Connection Type (IN): Barb 1/2
Jacket OD (IN): 18
Jacket Length (IN): 45.6

Features: Coil
Material: Stainless Steel
Connection (IN): MNPT 1/2
Footprint Height (IN): 45
Footprint Diameter (IN): 7
Coil Count: 40
Tube ID (IN): 0.375
Single Coil Length (IN): 21.98
Overall Coil Length (IN):  879.2
Max Temp. (F): 250
Max Pressure (PSI): 100

Specifications: Jacket
Fluid Capacity (L): 36.89
Fluid Capacity (Gal): 9.76

Specifications: Coil
Diameter (IN): 0.375
Height (IN): 879.2
Radius (IN): 0.1875
Volume (Cu In): 97.06
Fluid Capacity (L): 1.59
Fluid Capacity (Gal): 0.42
