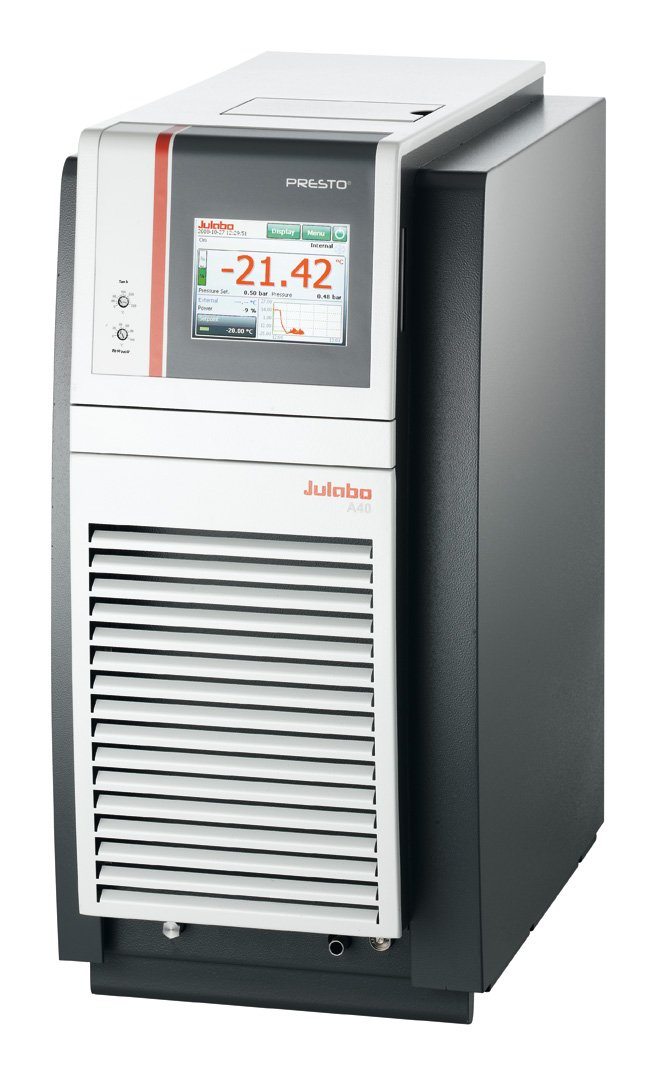

Julabo PRESTO A40
Reactor temperature control, tests for all kinds of substances or temperature simulation – Presto A30 are made for highly precise temperature control and rapid temperature changes, providing large heating and cooling capacities covering a working temperature range from -92 °C to +250 °C. Highly efficient components allow extremely fast compensation of exothermic and endothermic reactions. Lab users benefit from high flow rates, constant pressure and a controlled build-up of pump pressure. Changes in the temperature-control fluid viscosity are balanced dynamically. Permanent internal monitoring and self-lubricating pumps contribute to the new PRESTO’s long service life. A special feature of the PRESTO is the integrated 5.7’’ industrial color touch screen.
| Specifications | |
|---|---|
| Shipping Weight | 231 lbs |
| Shipping Dimensions | 40 x 24 x 40 in |
| Order No. | 9420401 |
| Model Series | PRESTO |
| Working Temperature Range (°C) | -40° to +250° |
| Temperature Stability (°C) | ±0.01 … ±0.05 |
| Temperature Control | ICC intelligent cascade control, TCF temperature controlfeatures, Absolute temperature calibration 1-point |
| Display Resolution | 0.01 °C |
| Integrated Programmer | 8 x 60 steps |
| Temperature Display | TFT Touchscreen |
| Heating Capacity (kW) | 2.3 |
| Cooling Capacity | °C 200 100 20 0 -20 -30 -40
kW 1.2 1.2 1.2 0.9 0.6 0.3 0.1 |
| Pump capacity Flow Rate (l/min) | 16 to 40 |
| Pump Capacity Flow Pressure (psi) | 1.45 to 18.85 |
| Pump Connections | M24x1.5 |
| Filling Volume Liters | 3.5 (1.7 Internal Expansion) |
| Refrigerant | R507 |
| External Pt100 | integrated |
| Digital Interface | RS232, Optional Profibus, SD memory card, USB, Ethernet, Modbus, Optional RS485 |
| Ambient Temperature | 5…40 °C |
| Noise Level (dBA) | 55 |
| Classification | Classification III (FL)according to DIN 12876-1 |
| Analog Connection Input / Output | Optional |
| Cooling of Compressor | 1-stage Air |
| Filling Volume Expansion Vessel Liters | 2.7 |
| Power requirement V / Hz / A | 208/60/15 |
| Alarm Signal | acoustically & optical |
| Temperature Selection / Display | °C / °F |
| Outer dimensions W x L x H inch | 12.7 x 22.9 x 26 |
| Other Characteristics | GB version with 1800 W heater |
| Characteristics / Display | State-of-the-art display technology: TFT Display for comfortable user guidance, colored display of |
