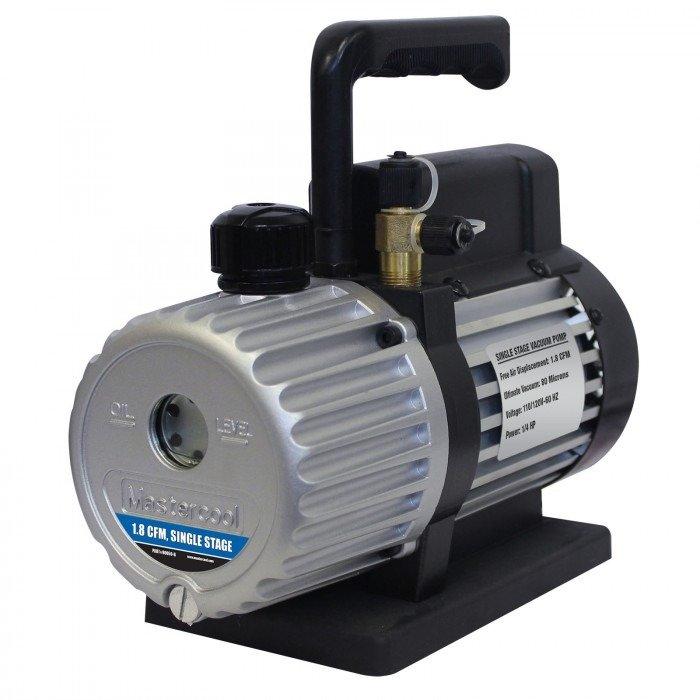

Product Description

• High volume fan provides cool air motor and pump
• Vapor discharge/oil fill port, easily removable, contains internal check valve to prevent escape of liquid oil
• Internal check valve to prevent oil back flow
• Cooling fins to keep temperature cooler during extended motor operation
• Thermally protected motor with on/off rocker switch
• Large, lightweight reinforced base for stable positioning
• Easily accessible oil drain valve
• Large oil level sight glass with max/min oil level indicator

SPECIFICATIONS:

• No. of Stages: 1
• Free Air Displacement: 1.8 CFM
• Ultimate Vacuum: 80 Microns
• Pump Motor: 1/4 HP
• Pump Speed: 1720 RPM
• Electrical Specs: 110/120 V/60 Hz

* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.

Also Available:
90059-220-B

• No. of Stages: 1
• Free Air Displacement: 51 LIT/MIN (60 hz) / 42 lit/min (50 hz)
• Ultimate Vacuum: 80 Microns
• Pump Motor 1/4 HP
• Pump Speed: 1440 RPM
• Electrical Specs: 220 V, 50/60 HZ

SERVICE INFORMATION:
Oil Capacity: 12 oz / 342 ml
