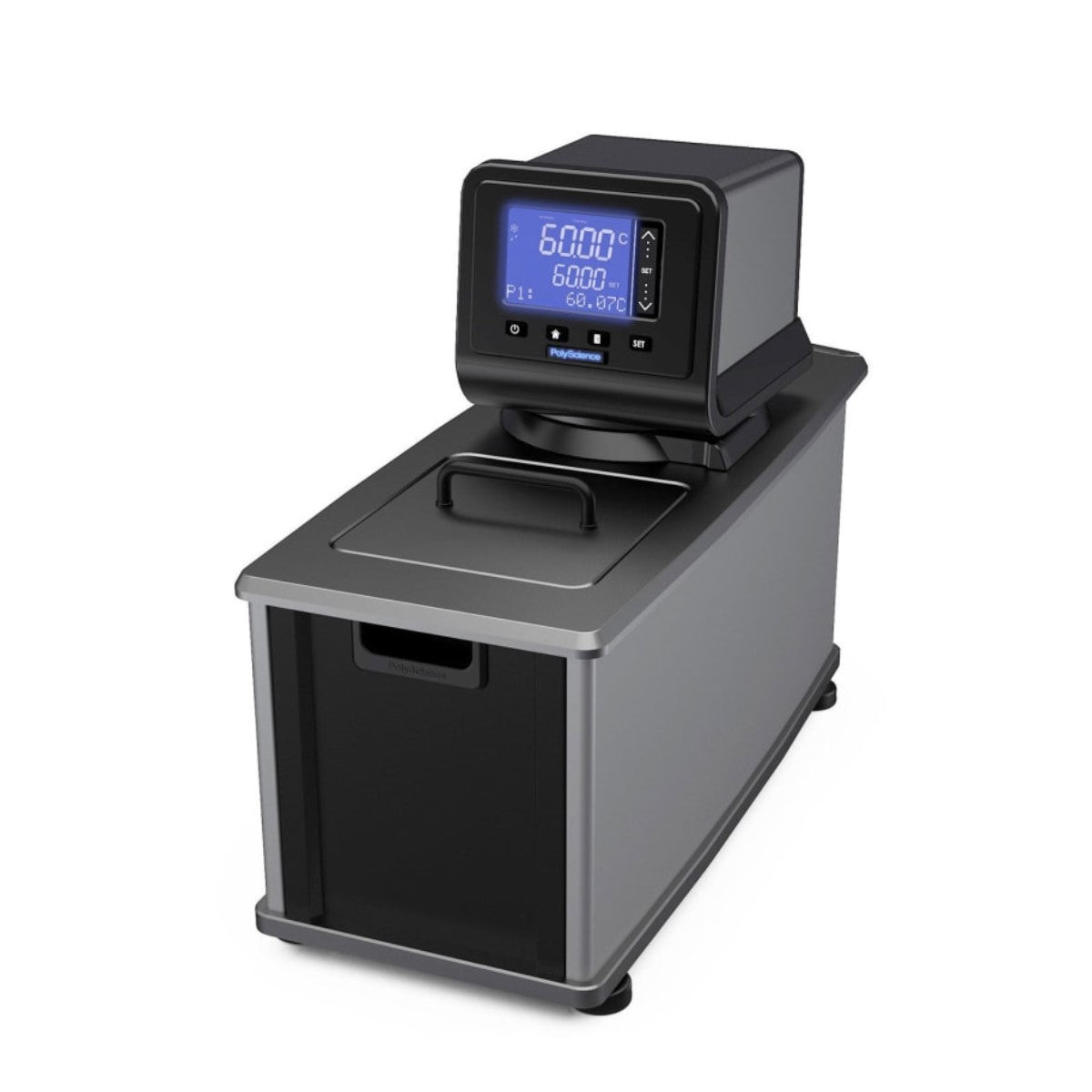

PolyScience AD07H200-A11B Advanced Digital Heated Circulator, 1.6 gal, 120 V/60 Hz
$2,700.00
PolyScience AD07H200-A11B Offers
The PolyScience AD07H200-A11B Advanced Digital Heated Circulator can work volumes up to 1.8 gal (7 L). The bath is easy to use with its intuitive LCD, touch-pad controls and on-screen prompts. It’s made with a stainless-steel reservoir complete with DuraTop and nylon hose adapters.
MANUAL for PolyScience AD07H200-A11B Advanced Digital Heated Circulator
DATASHEET for PolyScience AD07H200-A11B Advanced Digital Heated Circulator
Features
- Easy-to-use 3.75″ (9.5 cm) LCD with touch-pad controls
- 4 operating languages to choose from: French, German, Spanish and English
- Swivel 180™ rotating controller for added convenience
- Maximum pressure rating of 4.3 psi (0.3 bar)
- On-screen prompts to help guide you
- Offers automatic performance optimization and specific heat tuning
- 1-point temperature calibration capability
- Stainless-steel reservoir with DuraTop, LidDock, drain and cooling coil
- Powerful pressure/suction pump with variable speed control
- Provides over-temperature and low liquid level protection
Specifications
|
Temperature Control Type |
Advanced digital |
|
Power Source |
Plug in |
|
Product Weight |
42 lbs (19 kg) |
|
Approvals |
ETL, RoHS, WEEE; III (FL) DIN 12876-1 |
|
Product Length |
19.6″ (49.9 cm) |
|
Product Height |
16.1″ (40.9 cm) |
|
Bath Volume |
1.8 gal (7 L) |
|
Connector Type(s) |
0.25″ (0.64 cm) F NPT; USB-A and B, Ethernet, RS-232/RS-485 and external temperature probe |
|
Power Requirements |
120 VAC, 60 Hz, 1 Ph, 10 A |
|
Product Width |
8.7″ (22.1 cm) |
|
Product Type |
Open bath |
|
Application(s) |
Heating |
|
Working Temperature Range |
20 to 392°F (10 to 200°C) |
|
Temperature Stability |
±0.02°F (±0.01°C) |
|
Heating Capacity |
1,100 W |
|
Pump Flow Rate |
Pressure: 5.3 GPM (20.1 LPM); suction: 3.9 GPM (14.7 LPM) |
|
Bath Size |
6.18 x 5.59 x 5″ (15.7 x 14.2 x 12.7 cm) |
|
Software Compatibility |
PolyTemp Viewer, USB driver |
