The short path distillation system is designed for distillation of thermally sensitive products under vacuum. The system is used for organic products of thermic instability, high molecular weight and high viscosity at operating temperatures.
The evaporation surface consists of a vertical glass cylinder, double mantled and heated by circulating thermal oil. The product is being spread to a thin film on the inner surface of the evaporator by means of rotating PTFE wiper elements. These wipers are pressed to the inner wall of the surface where they produce a thin film with a continuous distribution of liquid to maximize evaporation. The condenser is vertically arranged in the center of the glass evaporator, tempered by liquid flow, to reduce the distance for the vapors to prevent any pressure drop by huge transfer space. This technology enables the operation at extreme high vacuum to reduce the boiling point of thermal sensitive products botanical extracts without decomposition.
The rotating wiper basket is made of stainless steel Aisi 316 Ti and equipped with PTFE (Teflon) roll wipers.

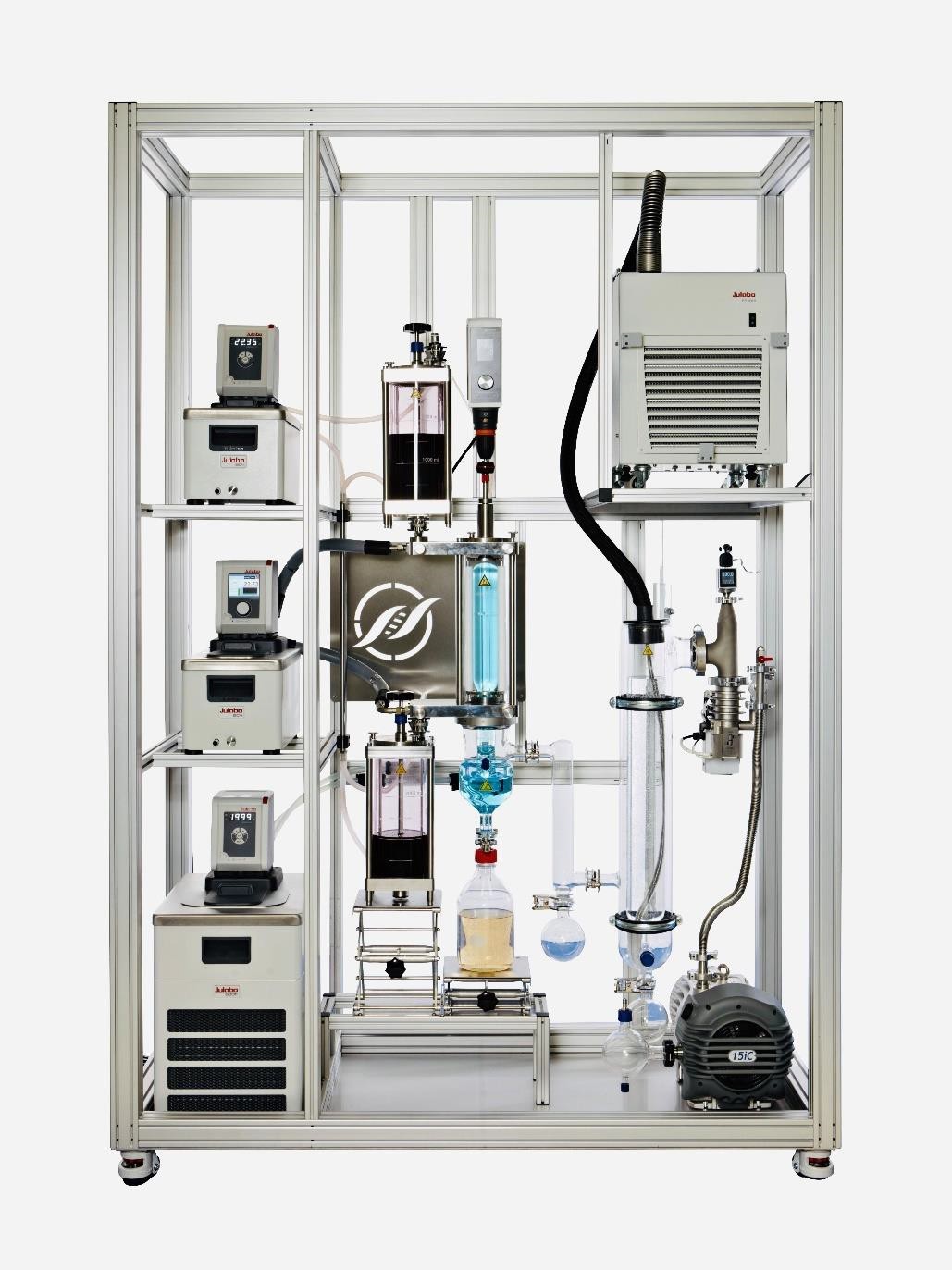

The PRESCOTT 1000 LITE is offered as a complete turnkey system including complete vacuum accessories and three high capacity thermostats to temper feed-vessel, inlet line, evaporator and the condenser including outlet line. The residue outlet is also tempered to prevent solidification of very heavy, waxy residues.
The PRESCOTT 1000 LITE is a system for batch operation and the economical budget friendly alternative for to our fully continuous flagship PRESCOTT 1000, which includes a sophisticated control cabinet including vacuum control system and tempered gear pumps for automatic operation without vacuum interruption.
One of the unique features of the PRESCOTT 1000 LITE are the interchangeable vessels of feed and residue: The residue vessel can be used as feed vessel, which allows to run the second path without any refilling. This eliminates material losses and saves minimum down time compared to all other systems available.
BASE SYSTEM COMPONENTS
Mobile Mounting Frame
Includes necessary holders and fastenings to accommodate all components, mounted on 4 wheels
Graduated Feed Vessel
Glass, volume 3000 ml, heated by circulation thermostat liquid flow, with complete heated inlet line, interchangeable with
residue receiver
Thin Film Short-Path Evaporator
Made of glass, ~1000cm2, with heated inlet and outlet lines
and double mantle for thermal oil heating with safety cover in polycarbonate
Wiper Driver Motor
Includes driving shaft with flexible coupling and vacuum- tight lead through
Wiper Basket
Stainless steel AISI 316 Ti with PTFE rollers
Sensor for High Vacuum Application
Includes integrated LCD-display; allows for application down to 10-5 torr (operating vacuum highly variable)
Set of Sealings
/Gaskets/Lines
Viton components
Optimized Vacuum System
Includes diffusion pump and 15m3/h scroll pump, as well as big vacuum cold trap with 2 additional condensate receivers
Thermostat for Circulation Cooling/Heating
Temperature range -20…+100°C to temper the condenser
cooling finger inside the evaporator with 600W cooling capacity and 2kw heating power
Thermostat for Short-Path Evaporator Operation
Heating capacity of 2 kW, operation temp. max. 200°C, with high performance circulation pump, isolated tubes, PID control
and color display.
Thermostat for Heating of Feed Vessel and Inlet Lines
4l bath capacity, operating range +20°C… +150°C, heating capacity 2kW
ADDITIONAL COMPONENTS
Additional heated vessel with dosing valve
Double mantled vessel, 3000ml, graduated, precise dosing valve, to be used as feed vessel or residue vessel, including quick-connectors for fluid tempering.
Full Protective Sheathing
Front and side panels made of transparent polycarbonate material
Immersion Cooler
Automatic cooling of the vacuum cold trap, closed process system, temperature range down to -90°C
Conversion Kit
Converts power supplies between 190V – 600V at sites other than 230V (3 phase)
Pricing Breakdown
P1000 Lite System
$ 99,550
Immersion Cooler
$ 12,195
Protective Sheathing
$ 3,895
Additional Heated Vessel with Dosing Valve
$ 6,595
Conversion Kit
$ 4,995
Packing/Shipping (US & Canada)
$ 2,500
Installation/Training – 1 day
$ 5,000
TOTAL
$ 134,670
*Additional support available for $ 5,000 / day
SYSTEM HIGHLIGHTS
PATENT PENDING HYBRID EVAPORATOR
Combines all the positive characteristics of glass and stainless steel
Full visibility of the process
Reliable and precise
Lowest tolerances in the market (no welding, no forming)
Easy cleaning
lowest maintenance & repair costs due to changeable glass-cylinders
complete heated inlet and outlet lines
Lowest hold up due to extreme compact design
Included protective shield as additional safety feature
 HIGH CAPACITY GLASS CONDENSER
Reliable and strong design
Easily removable for cleaning
Full visibility
Completely tempered
Maximized surface area with minimized distance to the evaporator
OPTIMIZED VACUUM SYSTEM
Dry scroll pump optimized to work with volatile compounds
Double condensate receiver system to separate light ends
High capacity diffusion pump (65L/s → 234m³/h) with oil level indicator
Supersized vacuum cold-trap for outstanding vacuum performance
Cold-Trap with drain nozzle for easy maintenance
Optional electrical immersion cooler down to -90°C
CONDITIONS
Packing:
Wooden crate, suitable for airfreight
Delivery Time:
Approx. 2-4 weeks after full payment
Country of Origin:
Federal Republic of Germany
Customs Tariff No.:
841940 000
Warranty:
Warranty provided for complete system for up to 12 months from installation– restricted to those defects which do not result from natural wear and tear or inappropriate treatment
Documentation:
CE (Declaration of Conformity)
Spare Parts:
Available within shortest time from our stock
Specification: Prescott P 1000 LITE
Model
P1000 LITE
Final Pressure
down to 10-5 torr
Evaporator Surface
approximately 1000 cm2, short path
Evaporator
borosilicate glass and AISI 316 Ti stainless steel
Feed Vessel
3000 ml, graduated, heated, interchangeable
Product Receivers
3000 ml, graduated, heated, interchangeable
Mains Supply
6x 220V, 3 phase, 60 Hz (plug is end user defined)
