Seamlessly integrated design, constructed of both stainless steel and borosilicate glass to provide a semi-automated wiped film distillation solution for continuous material separation. Wiped film distillation is utilized to separate thermally sensitive products under vacuum and offers higher throughputs than traditional bench top short path systems.
The evaporation surface combines the benefits of 316 Ti AISI stainless steel with vertical concentric glass cylinders. These materials form the double mantled molecular still and are heated with circulating thermal fluid. The incoming crude product is spread to a thin film on the inner surface of the evaporator by means of rotating PTFE roller elements. The condenser is vertically arranged in the center of the glass evaporator, also tempered by liquid flow, to reduce the distance vapors must travel and prevent any pressure losses from a large transfer space.
The system includes a dry scroll vacuum pump with additional high-capacity diffusion, vacuum control and 2 vacuum sensors, 3 high capacity thermostats to temper feed vessel, inlet line, evaporator and the condenser, as well as outlet lines. A deep immersion cooler and enlarged cold trap provide enhanced vacuum performance throughout operation. The units are constructed with only the highest quality components available, and fully integrated electrical control cabinets.
Maintenance time on the system is minimized from a virtually tool-less construction and quick release fasteners. Moreover, transfer loss is virtually eliminated with our vertical platform and proprietary hybrid evaporator design. Prescott is focused on the ease of operation and minimizing of material losses while simultaneously attaining the highest available throughputs and potencies.
We combine years of operational expertise with decades of German manufacturing precision to deliver the highest quality systems with the shortest lead times in the industry.
BASE SYSTEM COMPONENTS
Mobile Mounting Frame
Includes necessary holders and fastenings to accommodate all components, mounted on 4 wheels
Graduated Feed Vessel
Glass & AISI 316L, 5000 ml; Heated by circulation thermostat liquid flow, with complete heated inlet line, refillable during vacuum operation for continuous working
mode
Thin Film Short-Path Evaporator
Glass & AISI 316L, 1000 cm2; double mantle for thermal oil; heated with fully tempered inlet and outlet lines
Protective Shield
Polycarbonate barrier to protect vital glass components
Wiper Driver Motor
Adjustable speed up to 2000 rpm; includes driving shaft with flexible coupling and vacuum-tight lead through
Wiper Basket
Stainless steel AISI 316 Ti with PTFE rollers
Sensor for High Vacuum Application
Includes integrated LCD-display; allows for application down to 10-5 torr (operating vacuum highly variable)
Sensor for Precise Vacuum Control
Allows for tight control of vacuum levels to provide consistency between batches
Feed Dosing Pump
Complete tempered high vacuum tight pump; Allows for transfer of sample from atmospheric conditions into vacuum pressure
Distillate Discharge Pump
Complete tempered, high vacuum tight pump; Allows for continuous removal without limitation of receiver size
Residue Discharge Pump
Complete tempered, high vacuum tight pump; Allows for continuous removal without limitation of receiver size
Set of Sealings
/Gaskets/Lines
Viton components
Optimized Vacuum System
Includes diffusion pump and 15m3/h scroll pump, as well as big vacuum cold trap with 2 additional condensate receivers
Thermostat for Circulation Cooling/Heating
Allows for tempering of condenser cooling finger inside the
evaporator with 600W cooling capacity, 2kW heating power, and temperature range of -20 to 100°C.
Thermostat for Short-Path Evaporator Operation
Includes high performance circulation pump, isolated tubes, PID control, and color display; Allows for use with 2kW
heating capacity and max operating temperature of 200°C
Thermostat for Heating of Feed Vessel and Inlet Lines
Allows for circulating heating, 2kW heating capacity, and operating range of 20 to 150°C
Electrical Control Cabinet
Includes full integration operating elements, vacuum
controller, variable frequency drives for dosing pumps and power distribution on all connected equipment
ADDITIONAL COMPONENTS
Conversion Kit
Converts power supplies between 190V – 600V at sites other than 230V (3 phase)
Full Protective Sheathing
Side panels made of transparent polycarbonate material
Immersion Cooler
Automatic cooling of the vacuum cold trap, closed process system, temperature range down to -90°C
Additional Options:
GMP Compliance Package
$ 29,500
**Additional support available for $ 5,000 / day
SYSTEM HIGHLIGHTS
PATENT PENDING HYBRID EVAPORATOR
Combines stability of steel and full visibility of process with borosilicate glass
Low maintenance & repair costs
Lowest tolerances in the market (no welding, forming)
Minimized clean-up & hold up from extreme compact design
HIGH CAPACITY GLASS CONDENSER
Maximized surface & minimized evaporator distance
Complete tempered & easily removed for cleaning
PRECISE VACUUM CONTROLS
High reproducibility in first pass
Prevent incondensable vapors with high capacity, oil free scroll vacuum pump
Double sensor system
Automatic safety circuit for diffusion pump control
Double condensate receiver system to separate light ends
High capacity diffusion pump (65L/s) with oil level indicator
Supersized vacuum cold-trap for outstanding vacuum performance
Cold-Trap with drain nozzle for easy maintenance
Optional electrical immersion cooler down to -90°C eliminating the need for dry ice
VERTICAL DESIGN
Optimized product flow without hold-up in idle pumping lines
FULLY CONTINUOUS OPERATION
High vacuum tight and tempered gear pumps
COMPLETE TEMPERED DISCHARGE SYSTEM
No solidification of resultant materials
STREAMLINED CONTROL CABINET
Simple unit handling with universally certified cabinet and power transformer
OPTIMIZED HEAT TRANSFER
Maximized diameter and minimized length of heating/cooling circuit
SUPPORT
We offer support and training that is unparalleled and strive for long-term relationships
LEAD TIMES
We offer much shorter lead times than the competition (delivery typically within 4 weeks of full payment)
CONDITIONS
Packing:
Wooden crate, suitable for airfreight
Delivery Time:
Approx. 2-4 weeks after full payment
Country of Origin:
Federal Republic of Germany
Customs Tariff No.:
841940 000
Warranty:
Warranty provided for complete system for up to 12 months from installation– restricted to those defects which do not result from natural wear and tear or inappropriate treatment
Documentation:
CE and UL/C-UL and operating instructions
Spare Parts:
Available within shortest time from our stock

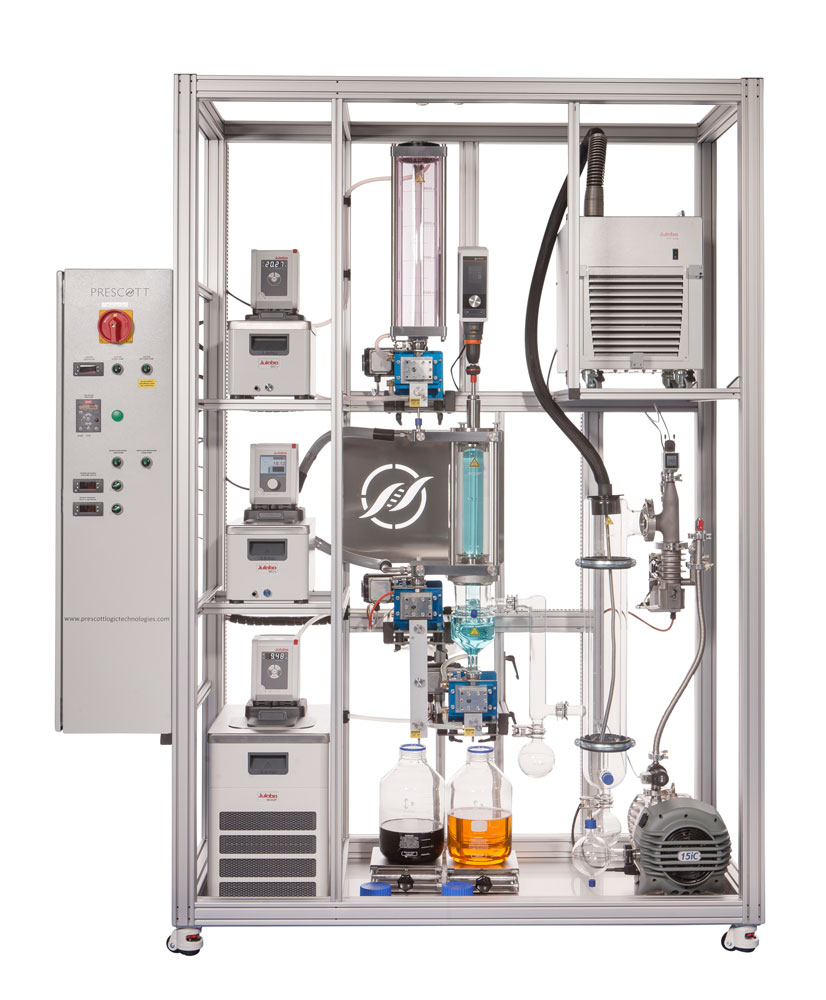

Specification: Prescott P 1000 Pro
Model
P1000
Final Pressure
vacuum sensor to 10-5 torr (theoretical 10-8torr)
Evaporator Surface
approximately 1000 cm2, short path
Evaporator
borosilicate glass and AISI 316 Ti stainless steel
Feed Vessel
5000 ml, graduated, refillable during operation
Product Receivers
5000 ml vessels provided, interchangeable during operation
