RECERTIFIED USA Lab -40°C 50L Recirculating Chiller UC-50/40 30L/Min
| Model: | REC-UC-5040 |
| Brand: | USA Lab |
| Warranty: | 30 Days |
$6,500.00 – $7,000.00
RE-CERTIFIED ITEM DOES NOT INCLUDE TUBING ONLY VALVES!!
All grading is based off external conditions.
All chillers have been Tested and Recertified with new or fixed internal parts.
***30 Day Warranty for all Recertified Items***
|

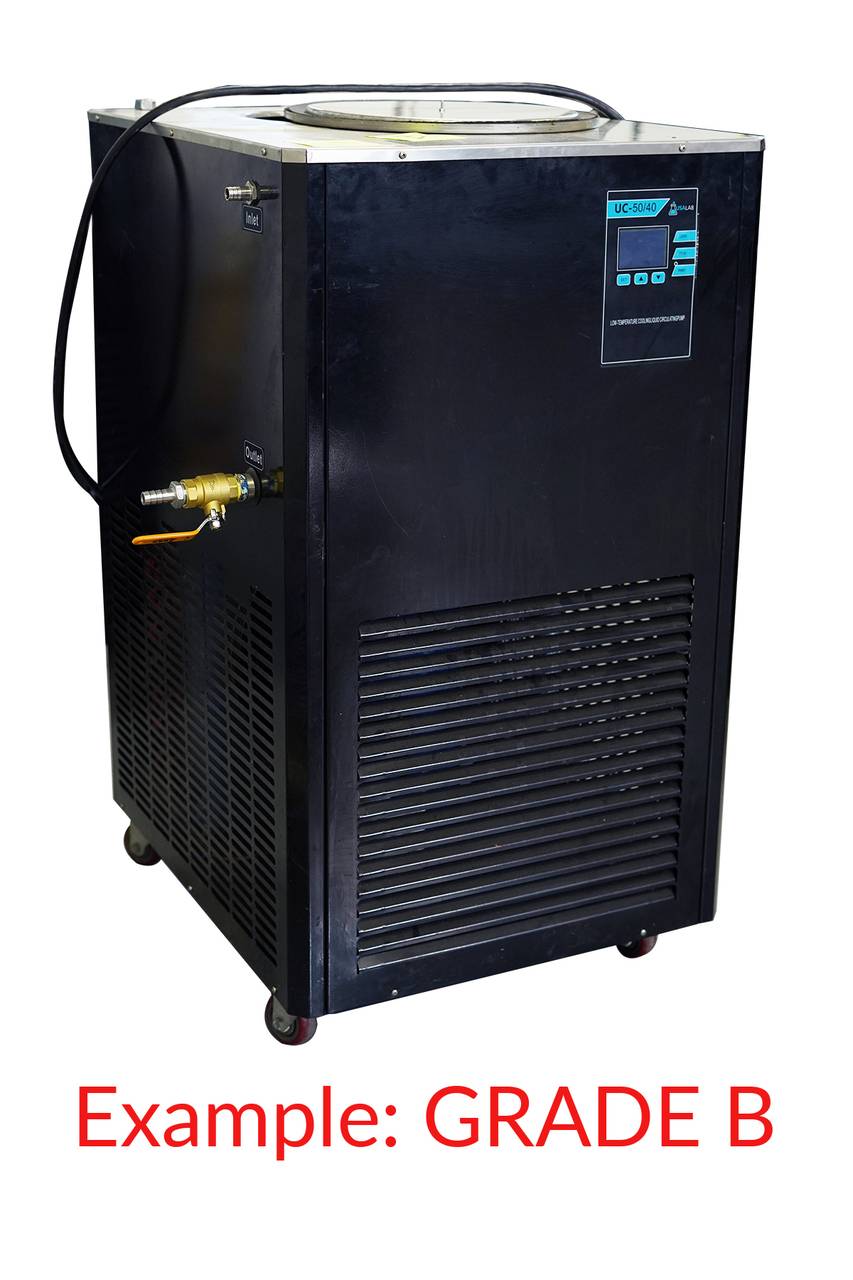

Grading Scale |
|
A – Like new |
|
B – Minor / Minimal Cosmetic Damage |
|
C – Moderate Exterior / Cosmetic Damage |
|
D – Multiple Damaged Areas |

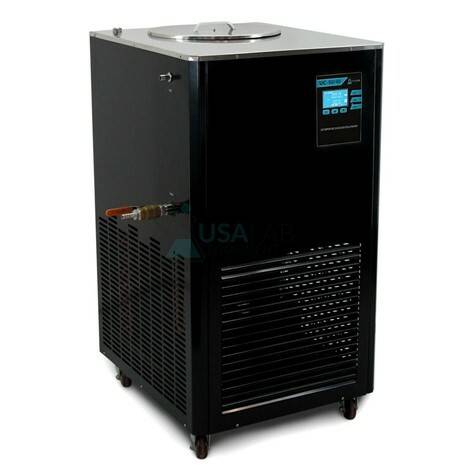

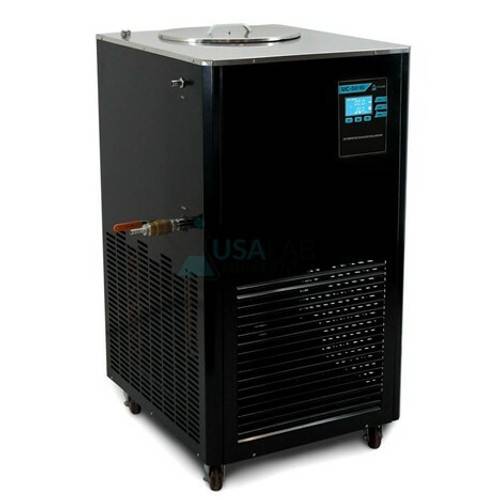

The USA Lab UC-50/40 is a powerful -40°C Chiller with a 50L Reservoir. This chiller is a true lab chiller than is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments.
The USA Lab UC-50/30 chillers offer unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.
|
UC-50/40 SPECIFICATIONS |
|
|
Reservoir Capacity |
50L |
|
Reservoir Dimensions |
17.8″ x 13.7″ |
|
Temperature Range |
Room Temperature to -40°C / -40°F |
|
Power Requirements |
220-240V 60Hz 30A 6kW Single Phase |
|
Refrigerating BTUs |
37,500BTU @ 20C | 4,050BTU @ -40C |
|
Circulating Pump Wattage |
100W |
|
Temperature Accuracy |
+/- 0.5°C |
|
Pump Flow |
30L/Min |
|
Pump Pressure (lift/height) |
2.2bar (4m/12ft) |
|
Barb Size |
5/8″ |
|
Refrigerant |
R404 |
|
Dimensions |
27″ x 24″ x 46″ |
|
Weight |
341lbs |
|
UC-5040 Packing List |
|
|
USA Lab UC-5040 Chiller |
1 PC |
|
5/8″ Insulated Tubing |
11 ft |
|
5/8″ Barbed Valve |
1 PC |
|
PTFE Sealing Tape |
1 PC |
-40°C Temperatures are tested under empty load.
