Rosin Plate Kit 4″x3″ SS316
$475.00
Details

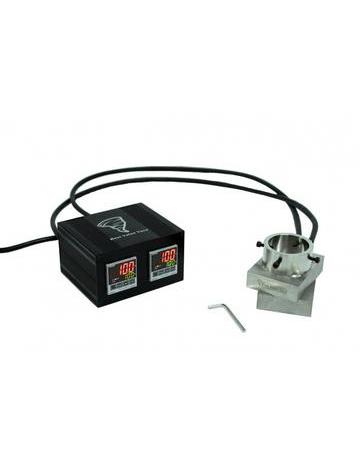

This is the Best Value Vacs 4″ x 3″ Rosin Plate Kit. Attach the plates to your own shop press using the hardware provided and convert your shop press into a commercial-grade rosin press! Custom rosin platens are essential for both the commercial producer and serious enthusiast alike. There’s simply no better alternative- attach these high-quality, stainless-steel heating plates to a press to give yourself complete control over every element and variable in your process. We use dual heating rods, SS316, and the latest in thermodynamics technology to ensure a stable and uniform temperature across the entire plate’s surface.
Â
 |
Fig.1: Infrared Heating Characteristics
Â
Specifications:
| Item | Value |
| Dimensions | 3″ x 4″ x 1″h (plates) 2.75″OD x 2.25″ID x 1″h (mounting collar) 6″ x 5″ x 3.25″ (controller) |
| Electrical Requirements | 120 V / 60 Hz / 4a |
| Heating Power | 400W, 200W per plate |
| Temperature Range | Ambient – 300F (150C) |
| Plate Material | SS316 |
| Fits Mandrel Size | 0.78″ – 2.25″ (20mm – 57mm) |
| Maximum Force | 30 Tons (27,000 kg) |
| Heater Cable Length | 1m (3.28 ft) |
| Requirements | Shop Press Not Included |
| Included | Heating Plates, Controller, Power Cable, Mounting Screws, Allen Key, User Manual |
