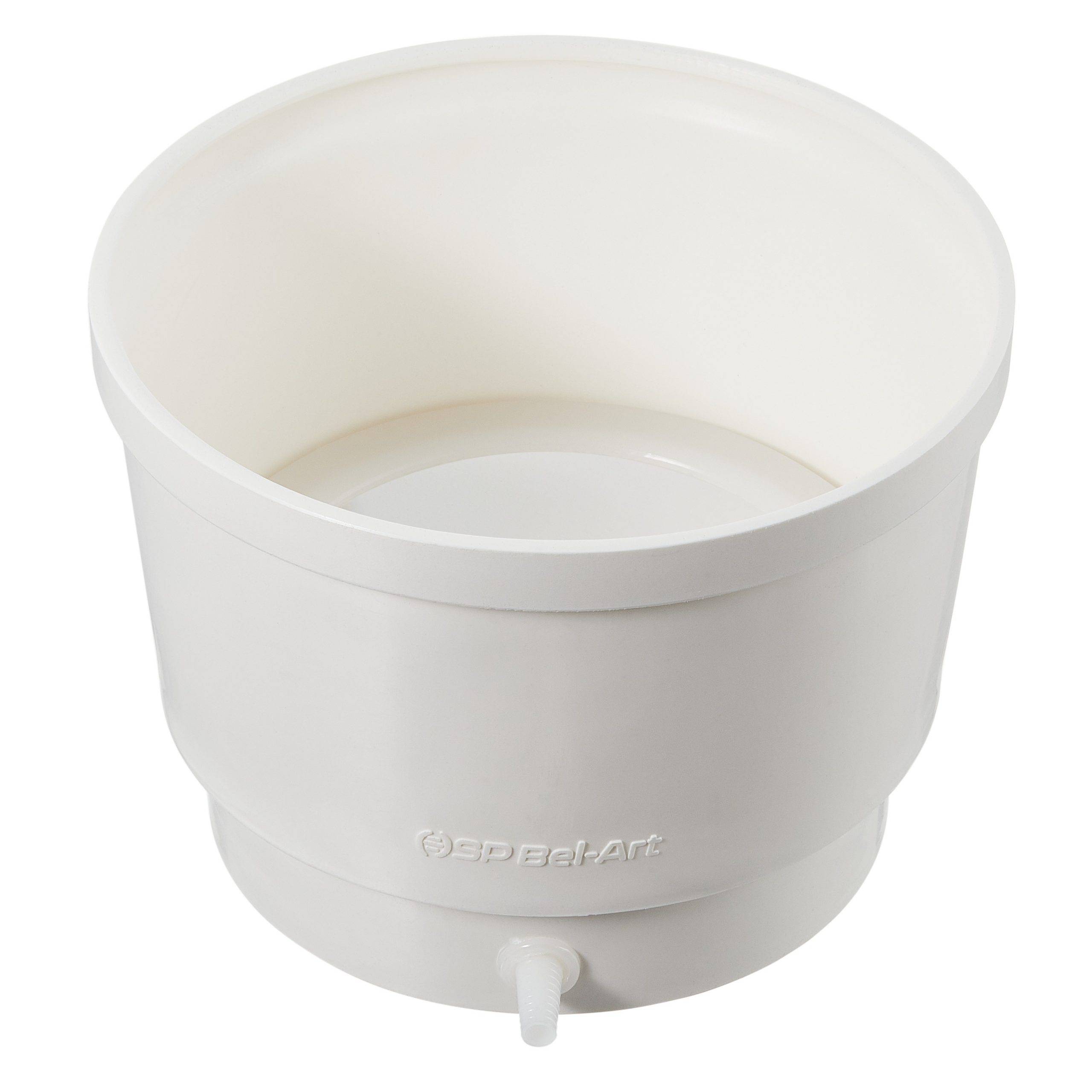

SP BEL-ART POLYETHYLENE BUCHNER TABLE-TOP FUNNEL 10.25″ (26CM)

Filter large volumes quickly with a polyethylene plastic Table-Top Buchner Funnel using your choice of Fritware® or Perforated filter plate.

• Removable hose barbed connector accepts 12.7mm (½”) I.D. tube and threads into ¾” NPT bung on the funnel
• Fixed or removable Fritware® Porous Filter Plates supported by a multiple ring grid; HDPE, 6.4mm (¼”) thick, with a non-porous ring at the periphery of the plate which seals filter paper when used
  • Fritware® Porous Filter Plates available in two porosities (medium and coarse); medium is 45-90 microns while the coarse is 90-130 microns; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF)
• Fixed or removable Perforated Filter Plates are made of 4.8mm (³/₁₆”) thick HDPE with 4.8mm (³/₁₆”) perforations on 11mm (⁷/₁₆”) centers
  • Perforated Filter Plates available in two versions (fixed or removable); fixed for coarse filtration or use with a cloth or paper filter; removable for use in precious metals recovery; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF)
• Use the F36820-0118 Funnel Trowel to quickly and efficiently smooth fissures appearing during the filtration process

Funnel with Coarse Porosity Fixed Plate (10.25″)

Funnel with Coarse Porosity Removable Plate (10.25″)

Funnel with Medium Porosity Fixed Plate (10.25″)

Replacement Medium Porous Plate (10.25″)

Funnel with Perforated Fixed Plate (10.25″)

Funnel with Perforated Removable Plate (10.25″)
