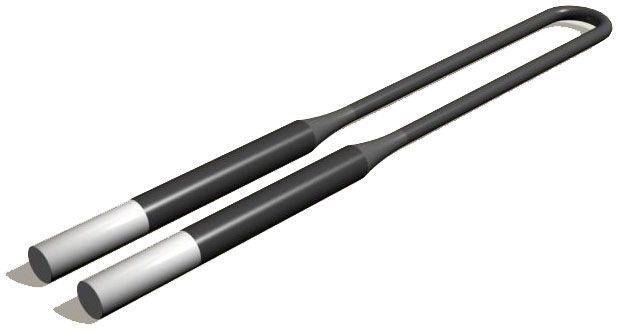

Super 1750-1800 MoSi2 Heating Elements for High Temp Furnaces
$179.00 – $379.00

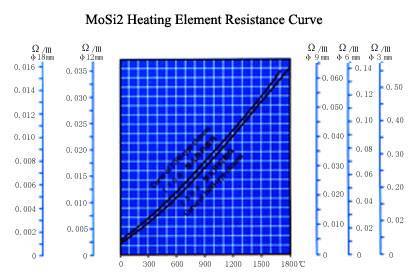

Resistivity of MoSi2 (Molybdenum Disilicide) heating element rises dramatically when temperature rises. Power output is less than 35% of the max. output at 300C. Resistance of a MoSi2heating element does not change under normal use, and you can mix new and old elements together.
Generally a separator should be placed in between two shanks of heating element when installing the heating elements in the furnace. Please make sure the width of the separator matches the space of the heating element. If the separator is too big it may break the heating element during installation.
Â
Comparison
|
Furnace
|
Element
|
Heating Element Dimensions
(D1xLeXLuXA)
|
Updated Item No.
|
| CF1700.6.6.6 / GCF1700.6.6.6 | HEMo1750 7x30x350 | 7x140x210x30 | HEMo1750.7.30.350 |
| CF1700.12.8.8/ GCF1700.12.8.8 | HEMo1750 30×400 | 7x190x210x30 | HEMo1750.30.400 |
| CF1700.16.12.12 / GCF1700.16.12.12 | HEMo1750 40×550 | 7x290x260x40 | HEMo1750.40.550 |
| CF1800.7.6.6 / TF1800.80 | HEMo1750 6x30x350 | 6×140×210×30 | HEMo1750.6.30.350 |
| TF1700.60.1000/ TFM2.1700.60 / TFM2.1700.80 / TFM3.1700.60 / TFM3.1700.80 / | HEMo1800 30×330 | 7×120×210×30 | HEMo1800.30.330 |
| TF1700.100 / TFM2.1700.100 | HEMo1800 30×350 | 7×170×210×30 | HEMo1800.30.350 |
