USA Lab -80°C 100L Closed Loop Recirculating Chiller CLC-100/80 235L/Min

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Tank Capacity: 32L
Temperature Range: RT to -80°C / -112°F
Power Requirements: 200-240V 60Hz 41A Three Phase – Hardwired Only
Refrigeration BTUs / Wattage: 150,000BTU – 1,250BTU / 44100-735W
Total power: Nominal: 17kW / 41A
Compressor Type: 10HP Danfoss x 2pcs (UL Listed)
Circulating Pump Wattage: 1500W (UL Listed)
Inlet / Outlet Size: 2″ FNPT with 2″ tri-clamp adapters
External Dimensions: 58.6″ x 31.4″ x 56.7″
Weight: 860lbs
Warranty: 1 Year

$31,999.00

SKU: CLC-10080-PLC Category: Brand:

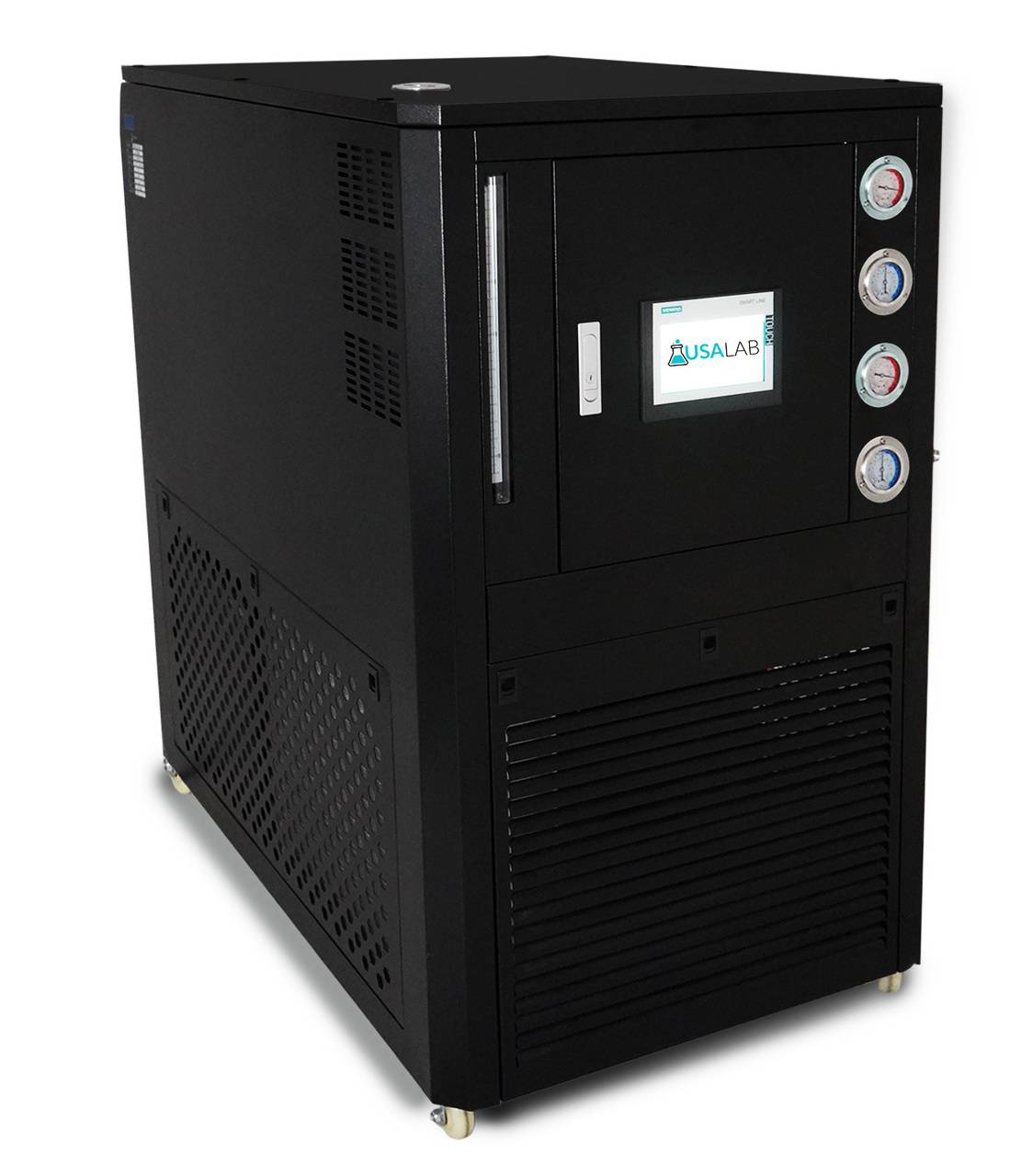

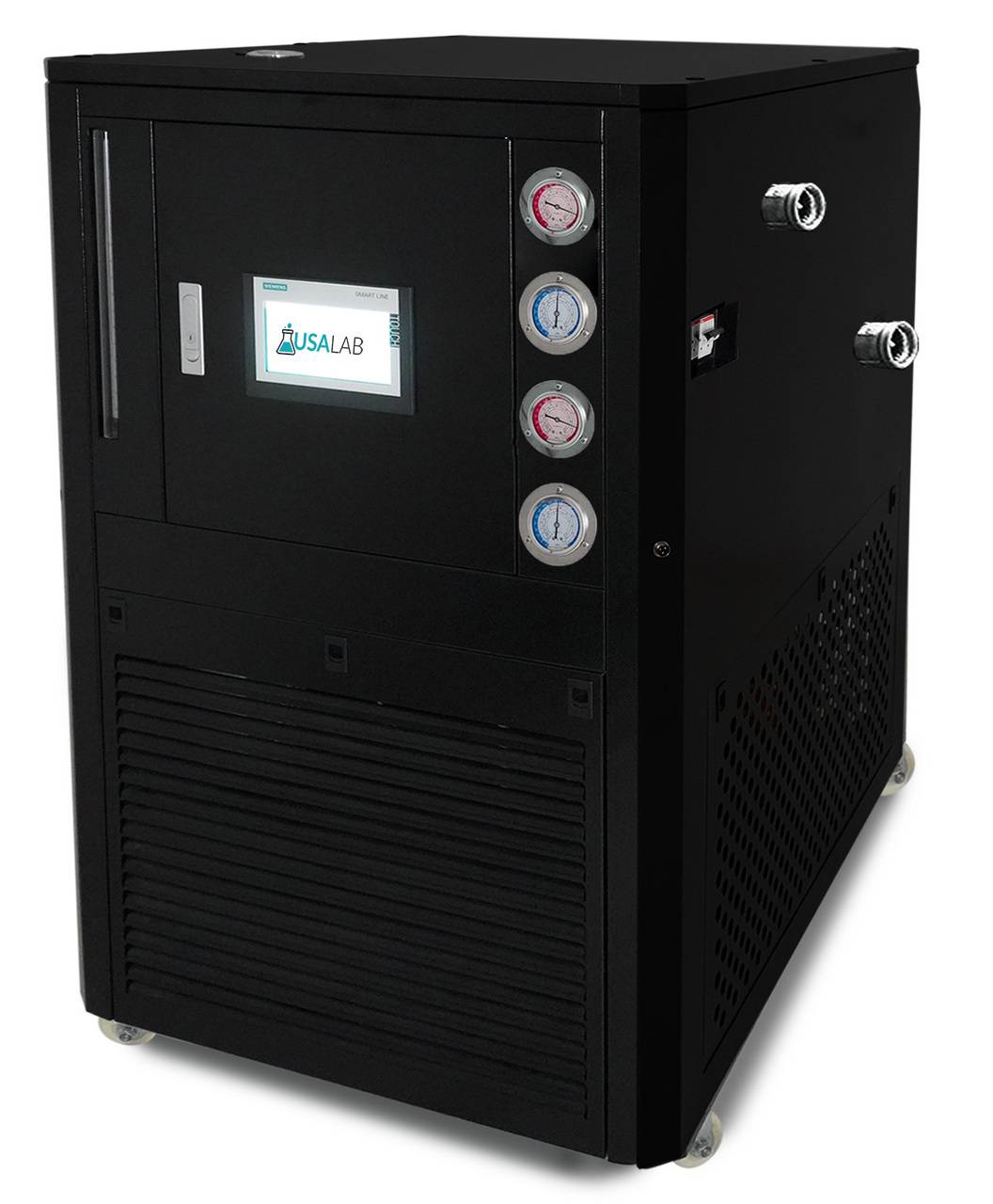

The USA Lab CLC-100/80 is a powerful -80°C Chiller with a 32L Expansion Tank. This is a true lab chiller unit that is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments. This system is great for large 100L reactors and other large vessel.

The USA Lab CLC-100/80 chiller offers unbeatable performance, ease of use and high reliability. This lab chiller unit keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.

This lab chiller unit includes a Programmable Logic Controller (PLC Device).

A PLC will control whether the unit will cool depending on the programmed steps and cycles over time. The PLC Device also has an option for a static control to operate like a standard chiller

 Not For Consistent Heat Loads e.g. Falling Film, Butane Recovery.

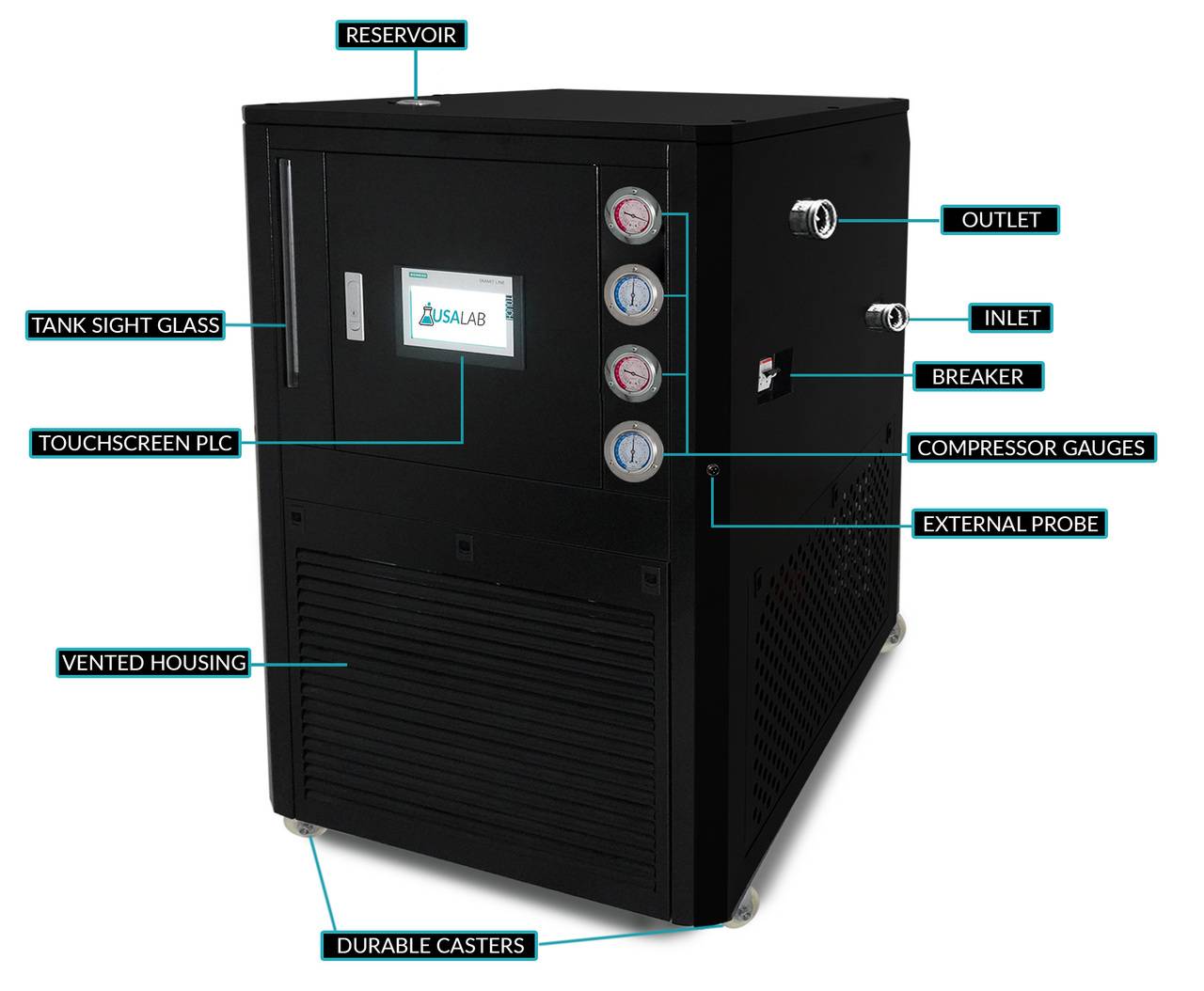

CLC-100/80 FEATURES

• Powerful chilling capacities and high BTU range.

• High quality UL Listed compressor.

• Touchscreen Siemens HMI display.

• R404 refrigerant.

• 12ft of tubing included with Tri-Clamp connections.

• 1 Year warranty with US based parts and support.

• Closed loop for higher thermal transfer performance.

• Versatile Siemens PLC device controller with external probe.

SPECIFICATIONS

Model

CLC-100/80

Expansion Tank Capacity

32L

Tank Dimensions

15.74″ x 7.87″ x 15.74″

Temperature Range

RT to -80°C  / -112°F

Power Requirements

200-240V 60Hz 41A Three Phase – Hardwired Only

Control Type

SIEMENS PLC S7-200 controller with external probe

Refrigeration BTUs / Wattage

150,000BTU – 1,250BTU / 44100-735W

Total Power

Nominal: 17kW / 41A

Plate Type Heating Area

Heating exchanger surface area 2.50m2 x2

Compressor Type

10HP Danfoss x 2pcs  (UL Listed)

Circulating Pump Wattage

1500W (UL Listed)

Fan Wattage

280W x 3pcs

Temperature Accuracy

+/- 0.5°C (PT100)

Pump Flow

62 gpm (235L/Min)

Lift

78 ft (24 m)

Pump Pressure

34.8 psi (2.4 bar)

Inlet / Outlet Size

2″ FNPT with 2″ tri-clamp adapters

Refrigerant

R404 High Stage | R23 Low Stage

External Dimensions

58.7″ x 31.5″ x 56.7″

Weight

860lbs

Warranty

1 Year

PACKING LIST

Model

Quantity

USA Lab CLC-100/80 Chiller

1

Tri-Clamp Tubing

12ft Total (2x 6ft)

 Manual

1

Pump Curve:
