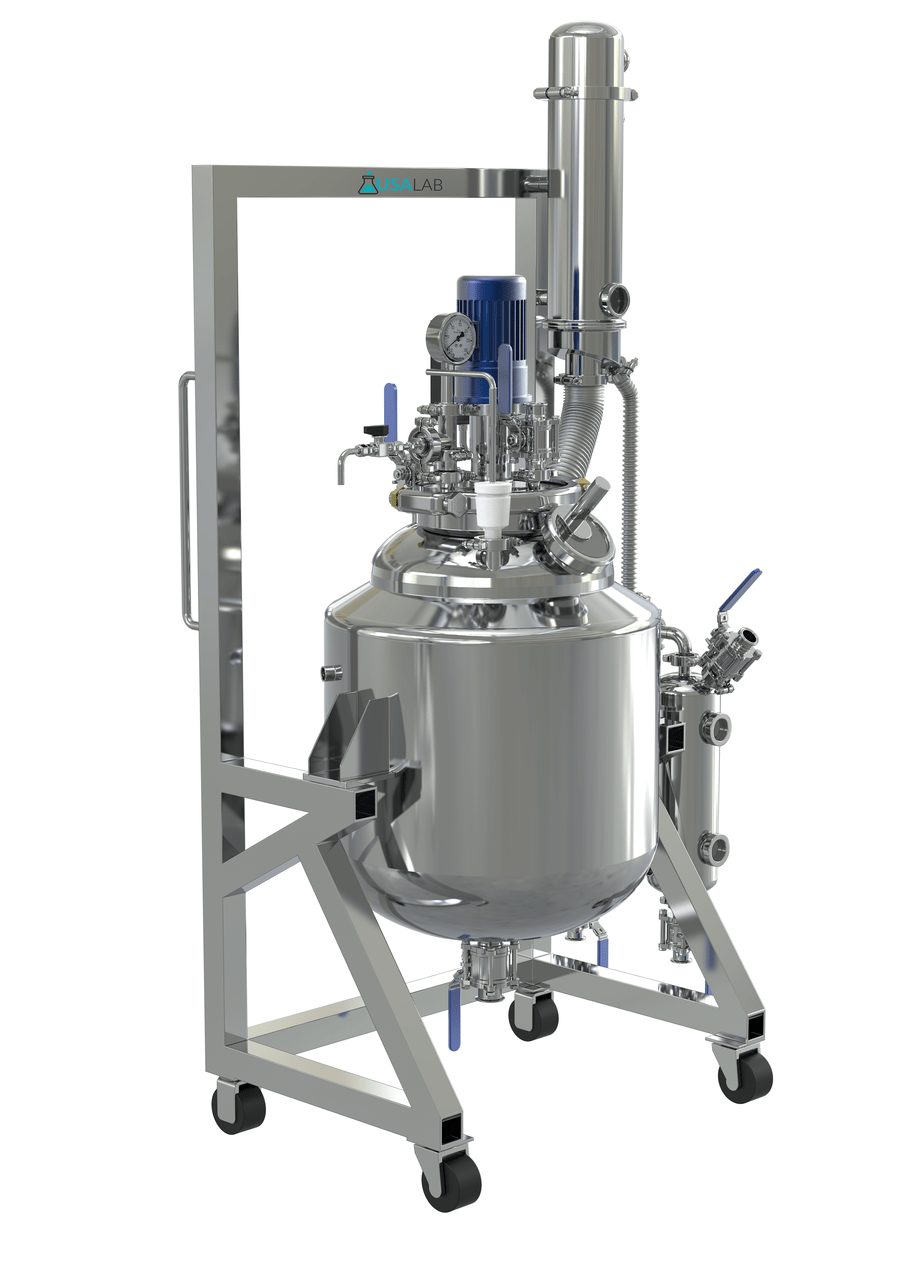

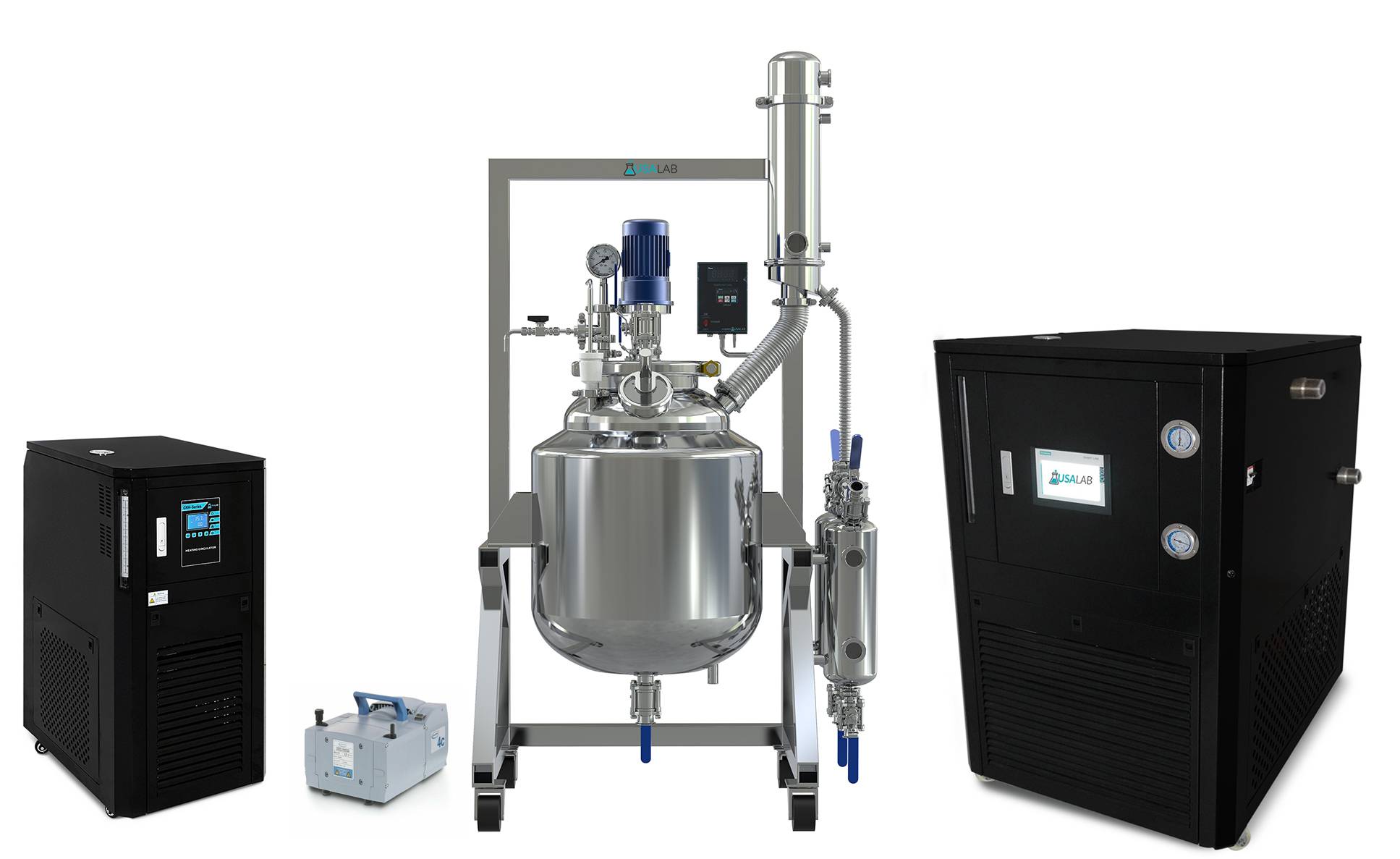

USA Lab Dual-Jacketed 100L 316L-Grade Stainless Steel Reactor Turnkey
Brand: | USA Lab |
Material: | 316L SS / 304 SS |
Motor: | ETL Certified |
Power Requirements: | 220V 3 Phase |
$42,999.00
100L Specifications |
|
Motor Power |
220V| 50/60Hz|Single Phase|200 watts |
Motor |
ETL Certified |
Rotation Speed |
0-450 rpm max. |
Lid Connections |
12″ TC| Center port 3″ TC | 2x 1.5″ TCÂ |
Top Connections |
2x 1.5′ TC | 1x 3″ TC | 4″ Sight glass with flash light |
Bottom Connections |
6″ TC | 6″ to 2″ Reducer | 2″ TC Ball Valve |
Accessories |
Pressure Gauge | Thermometer Probe| Vapor Release Valve |
Reactor Volume |
100 Liters |
Material |
316L Grade Stainless Steel \ Interior Electro Polished |
Agitator |
2x 3 Blade Propeller| 20″ Shaft |
Agitator Material |
316L Grade Stainless Steel |
Inner Jacket Connection |
1″ NPTÂ |
Inner Jacket Volume |
22 Liters |
Inner Jacket Rating |
15 PSI |
Outer Jacket |
Sealed |
Jacket Material |
304 Stainless Steel |
Pressure Rating |
Ultimate Vacuum |
Temperature Range |
55°C to +250°C (-67°F to +482°F) |
Gasket Material |
Silicone / Buna-N |
Weight |
300 LB |
Frame Material |
304 Stainless Steel |
Dimensions |
40″ x 28″ x 80″ (in) (WxDxH) |
Tube-In-Shell Specifications |
|
Material |
316L Grade Stainless Steel |
Number of Tubes |
70 |
Condensing Area |
0.9 m2 |
Connections |
2x 1/2″FNPT | 2x 1.5″ TC | 1x 3″ TC | 2x 2″ Sight Glasses |
Collection Specifications |
|
Material |
316L Grade Stainless Steel |
Volume |
10 Liters |
Number of Collections |
2 |
Connections |
6x 1.5″ TC | 4x 1.5″ TC Ball Valves | Manifold Included |
Sight Glass |
4x Sight Glasses |
This product is mechanically cooled by a high-performance scroll compressor. The CLC Series differs by offering a faster way to transfer the thermal load. Instead of cooling passively. Our CLCs use heat exchangers to cool the fluid in line. Allowing for less loss and more ease of use.
Â
Similarly to the UC Series, our CLC Series are compatible with all of your most demanding equipment. Contact us to today if you have more questions about our newest line of high-performance chillers.
Â
*This product is tested before we ship it out. Please allow for a lead time of 1-3 business days.*

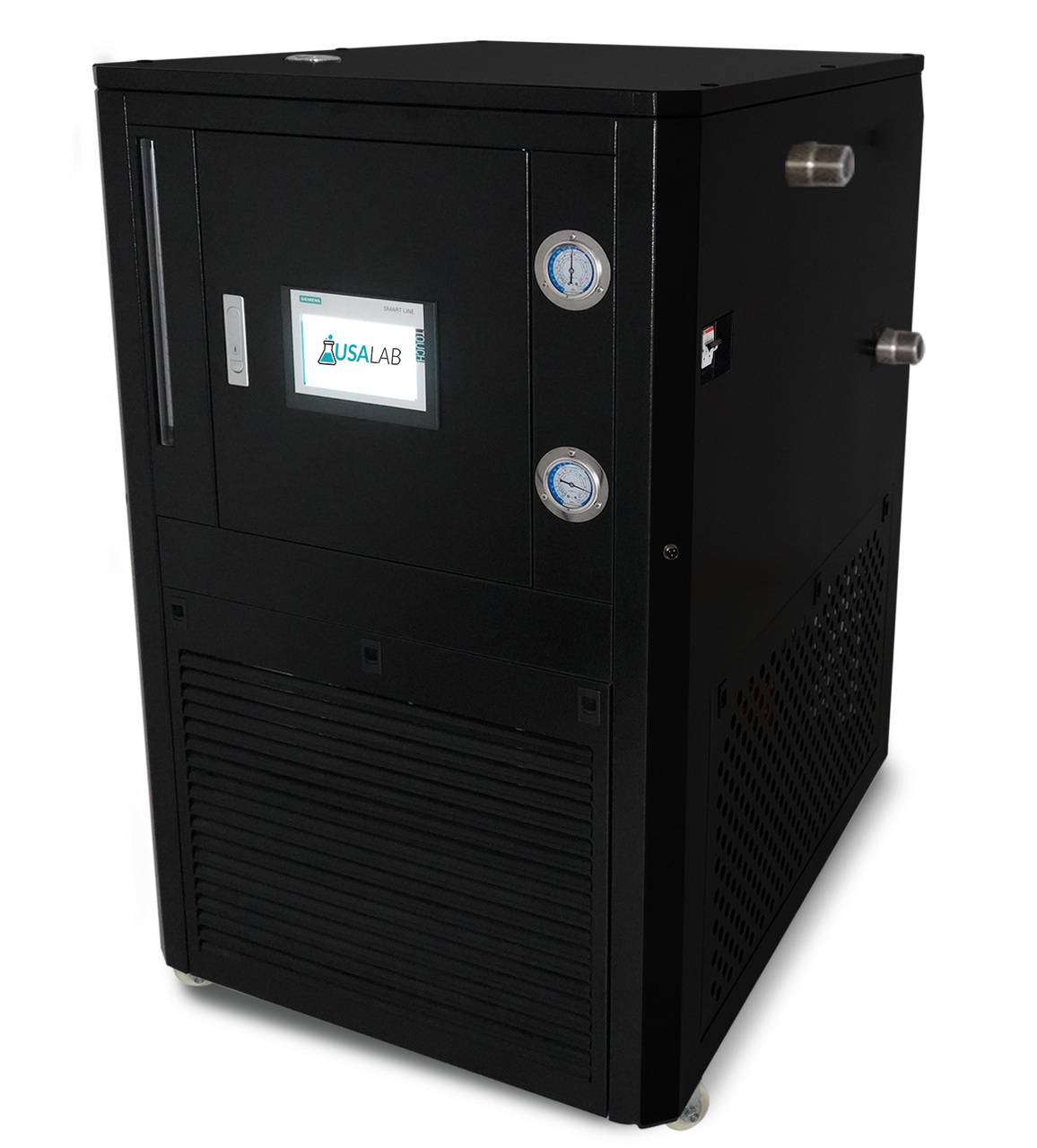

The USA Lab CLC-100/40-PLC is a powerful -40°C Chiller with a 32L Expansion Tank. This unit is a true lab chiller that is ideal for applications involving vacuum systems,
jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments. This system is great for large 100L reactors and other large vessel.
The USA Lab CLC-100/40-PLC chiller offers unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for
constant flow rates to match the needs of demanding applications.
This unit includes a Programmable Logic Controller (PLC).
A PLC will control whether the unit will cool or heat depending on the programmed steps and cycles overtime. The PLC also has an option for a static control to operate like a standard chiller. Â
Â
CLC-100/40-PLC FEATURES |
||
• Powerful chilling and high BTU range. |
||
• High quality UL Listed compressor. |
||
• Touchscreen Siemens HMI display. |
||
• R404 refrigerant. |
||
• 12ft of tubing included with Tri-Clamp connections. |
||
• 1 Year warranty with US based parts and support. |
||
• Closed loop for higher thermal transfer performance. |
||
• Versatile Siemens PLC controller with external probe. |
||
SPECIFICATIONS |
||
Model |
CLC-100/40 |
|
Expansion Tank Capacity |
32L |
|
Tank Dimensions |
15.74″ x 7.87″ x 15.74″ |
|
Temperature Range |
RT to -40°C / -40°F |
|
Power Requirements |
200-240V 60Hz 20.4A Three Phase – Hardwired Only |
|
Control Type |
SIEMENS PLC S7-200 controller with external probe |
|
Refrigeration BTUs / Wattage |
75,000BTU – 1,250BTU / 22050-368W |
|
Total Power |
8460 W / 20.4A |
|
Plate Type Heating Area |
Heating exchange area 2.50m2 |
|
Compressor Type |
10HP Danfoss (UL Listed) |
|
Circulating Pump Wattage |
750 W (UL Listed) |
|
Fan Wattage |
280W x 2pcs |
|
Temperature Accuracy |
+/- 0.5°C |
|
Pump Flow |
35.7gpm (135L/Min) |
|
Lift |
82ft (25m) |
|
Pump Pressure |
36.3psi (2.5bar) |
|
Inlet / Outlet Size |
1.5″ FNPT |
|
Refrigerant |
R404 |
|
External Dimensions |
43.3″ x 31.4″ x 51.2″ |
|
Weight |
430lbs |
|
Warranty |
1 Year |
|
PACKING LIST |
||
Model |
Quantity |
|
USA Lab CLC-100/40-PLC Chiller |
1 |
|
Tri-Clamp Tubing |
12ft Total (2x 6ft) |
|
 Manual |
1 |
Â

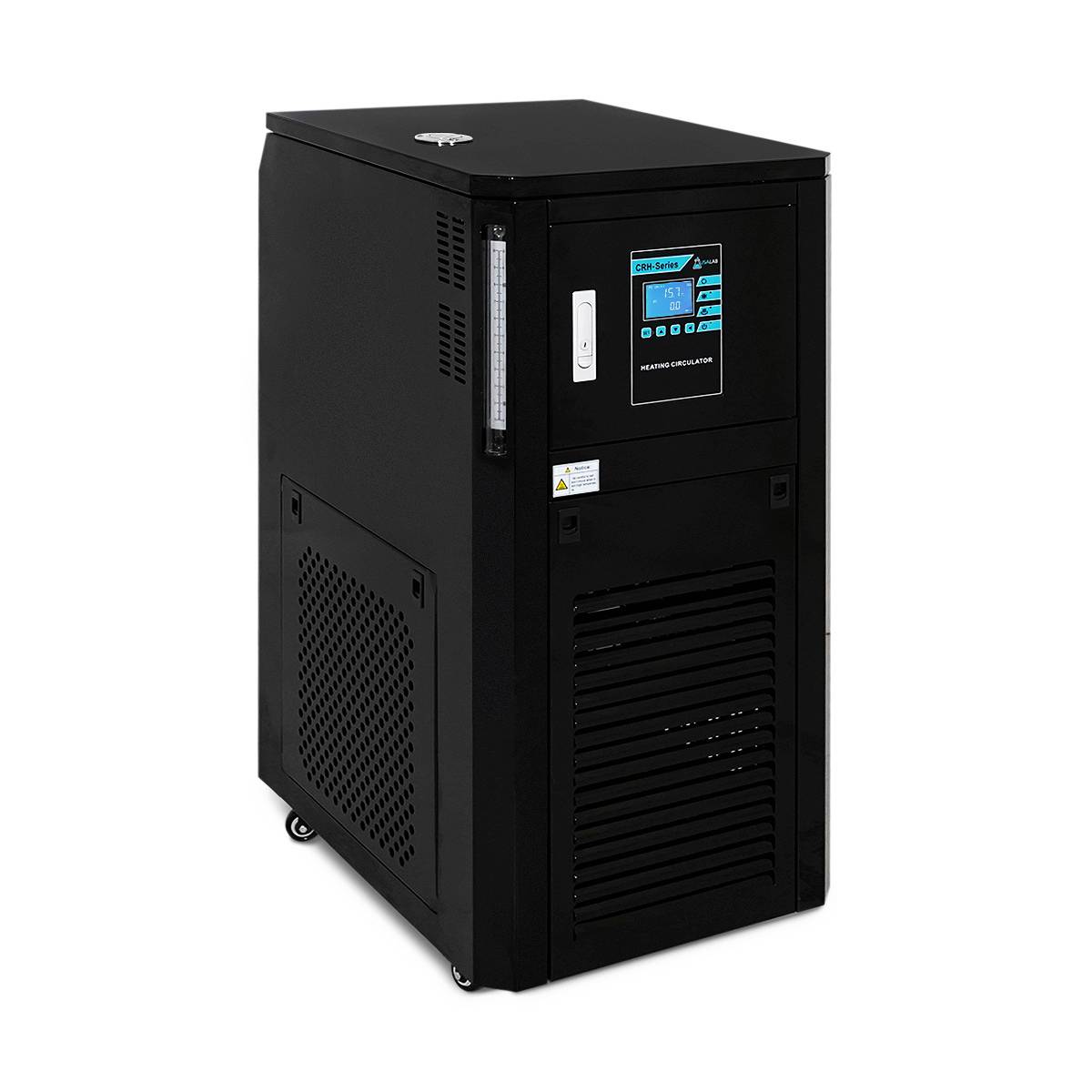

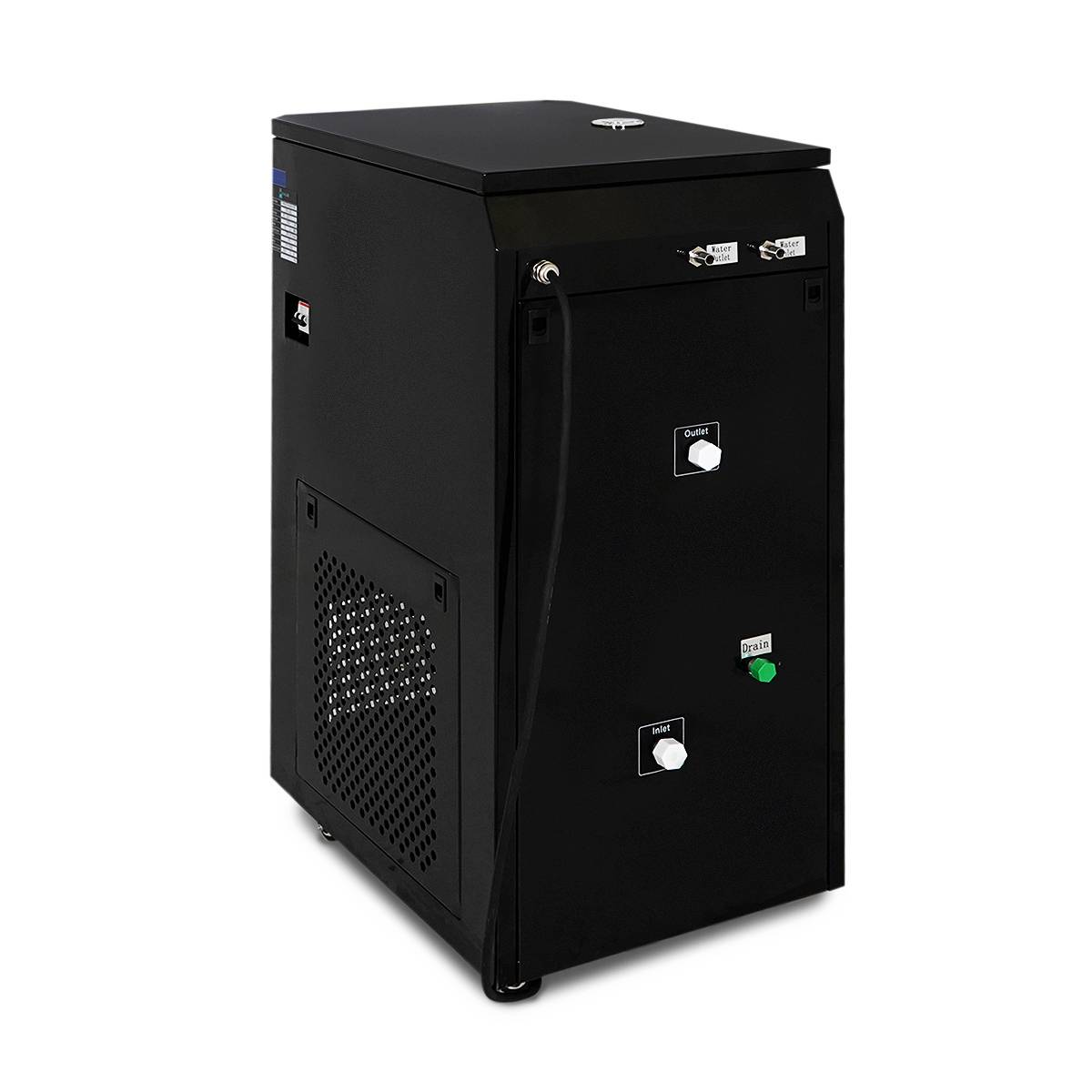

The USA Lab CRH heater is a powerful 200°C heater with a 20L expansion tank. Our CRH heater comes with a high powered stainless steel heater, and a strong pump for constant flow and high performance. The closed loop system allows for higher thermal transfer performance than open loop heaters, and provides superior heating capabilities. This unit is a true lab heater that is ideal for applications involving vacuum systems, jacketed reactors, columns, solvent tanks, and even analytical instruments. This system is great for larger columns, tanks, and high heat applications.
The USA Lab CRH heater offers unbeatable performance, ease of use and high reliability. These closed loop heaters are the best on the market for demanding applications and precision heating.

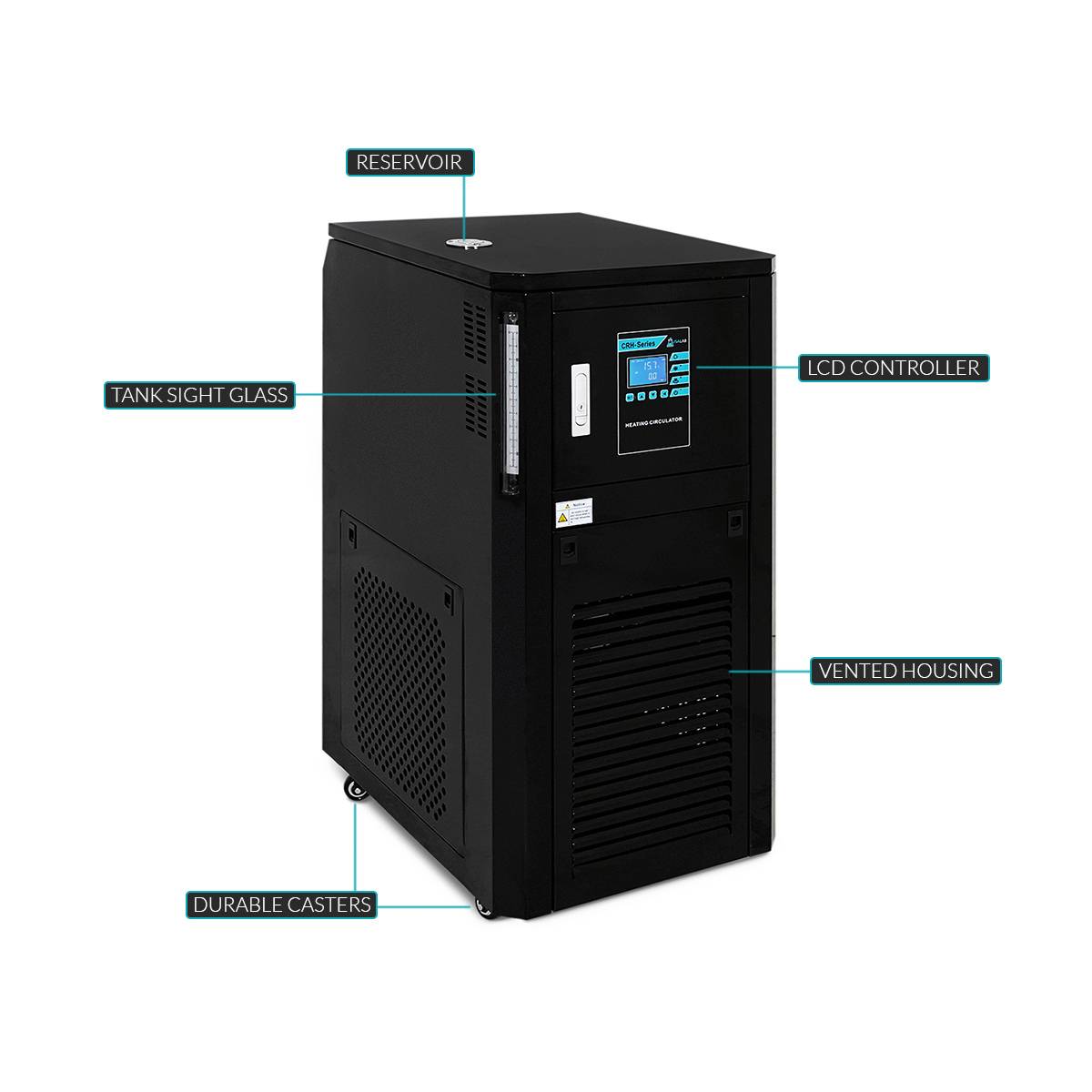

CRH-30 FEATURES |
||
• Powerful high wattage heating up to 200°C. |
||
• Easy to read LCD digital display. |
||
• Stainless steel heating elements. |
||
• Strong oil pump. |
||
• 12ft of insulated tubing included. |
||
• 1 Year warranty with US based parts and support. |
||
• Closed loop for higher thermal transfer performance. |
||
 |
 |
 |
SPECIFICATIONS |
||
Model |
CRH-30 3KW |
CRH-30 6KW |
Oil Tank Capacity |
20L |
|
Oil Tank Dimensions |
390 x 280 x 180mm |
|
Temperature Range |
RT to 200°C |
|
Power Requirements |
220-240V 50-60hz 15A Single Phase 6-20P Plug |
220-240V 50-60hz 28A Single Phase L6-30 Plug |
Control Type |
LCD Digital Display |
|
 Heating BTUs / Wattage |
10236 BTU / 3000W |
20472 BTU / 6000W |
Total Power |
3250W / 15A |
6250W / 28A |
Circulating Pump Wattage |
250W |
|
Temperature Accuracy |
+/- 1°C |
|
Pump Flow |
15L/Min |
|
Lift |
20m |
|
Inlet / Outlet Size |
1/2″ MNPT |
|
External Dimensions |
25.6″ x 18.1″ x 36.8″ |
|
Weight |
116lbs |
|
Warranty |
1 Year |
|
 |
 |
 |
PACKING LIST |
||
Model |
Quantity |
|
USA Lab CRH-30 Heater |
1 |
|
1/2″ FNPT Insulating Tubing – 6ft |
2 |
|
 Manual |
1 |
Â
MD 4C NT
Three-Stage Chemistry-Design Diaphragm Pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet even challenging requirements. The three-stage design provides the advantageous combination of high pumping speed and very low ultimate vacuum. All parts of the MD 4C NT in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. Due to the gas ballast valve and its very good ultimate vacuum (even with gas ballast) the MD 4C NT is also suitable for pumping condensable vapors of high-boiling solvents. The NT-series features further improved performance data, easy service and superior vapor tolerance.
Performance Features
- Outstanding chemical resistance and superior vapor tolerance
- Exceptionally high performance even at low vacuum
- Excellent ultimate vacuum even with gas ballast
- Whisper quiet and very low vibration
- Long diaphragm life, maintenance-free drive system
- Technical Data
Technical data |
MD 4C NT |
Number Of Heads / Stages |
4 / 3 |
Max. Pumping Speed At 50/60 Hz |
3.4 / 3.8 m3/h |
Max. Pumping Speed At 50/60 Hz |
2.0 / 2.2 cfm |
Ultimate Vacuum (Abs.) |
1.5 / 1.1 mbar/torr |
Ultim. Vac. (Abs.) With Gas Ballast |
3 / 2.2 mbar/torr |
Ambient Temperature Range (Operation) |
(10°C) – (40°C) |
Ambient Temperature Range (Storage) |
(-10°C) – (60°C) |
Max. Back Pressure (Abs.) |
1.1 bar |
Inlet Connection |
Hose nozzle DN 8-10 mm |
Outlet Connection |
Hose nozzle DN 8-10 mm |
Rated Motor Power |
0.25 kW |
Rated Motor Speed At 50/60 Hz |
1500/1800 min-1 |
Degree Of Protection |
IP 40 |
Dimensions (L X W X H) |
325 x 243 x 198 mm |
Weight |
14.3kg |
Noise Level At 50 Hz, Typ. |
45 Dba |
NRTL Certification |
Canada and the USA |
Atex Conformity (Only 230V) |
II 3/- G IIC T3 X Internal Atm. only |
Items Supplied |
Pump completely mounted, ready for use, with manual |
Accessories |
Rubber Vacuum Tubing DN 8 mm (20686001) |
-
Â
-
MD 4C NT – Pumping Speed Graph at 60 Hz
-
MD 4C NT – Pump Down Graph at 60 Hz (10L volume)
-
 -Technical data are subject to change without notice-
MD 4C NT – Dimension Sheet
 |
Â
-
Â
For Technical Support, Questions, or Other Issues Please Email or Call Us!
