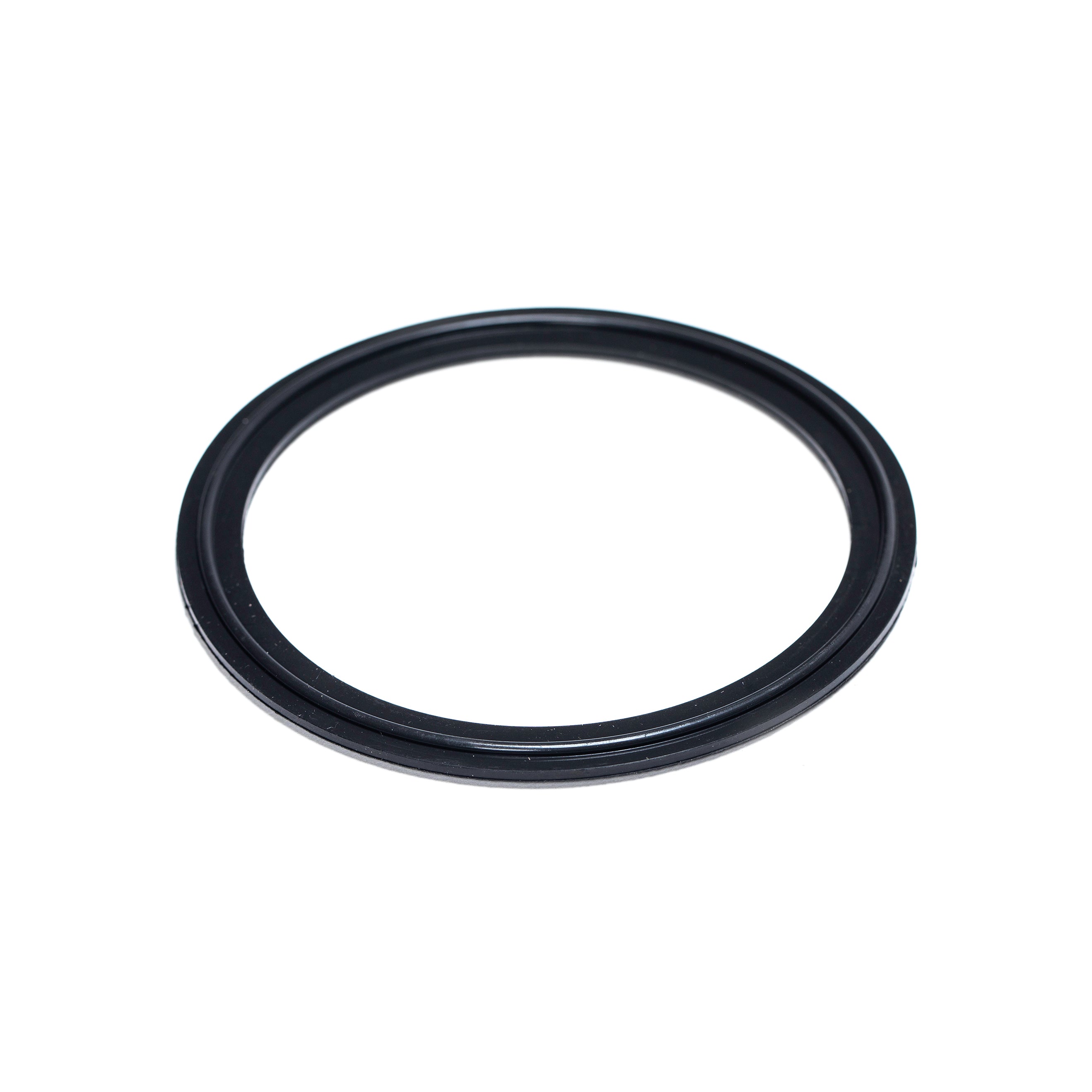

Open Source Steel Viton Tri-Clamp Gasket
$1.10 – $23.79
Viton Tri-Clamp Gasket
| Temp. Rating: | -30°F to 400°F |
Tri-Clamp® Gasket Sizing |
|||
| Size | Inside Diameter | Outer Diameter | Bead Diameter |
|---|---|---|---|
| 1/2″ | 0.40″ (10.2mm) |
0.87″ (22mm) |
n/a |
| 3/4″ | 0.64″ (16.2mm) |
0.87″ (22mm) |
n/a |
| 1″ | 0.90″ (22.9mm) |
2.00″ (50.5mm) |
1.71″ (43.5mm) |
| 1-1/2″ | 1.39″ (35.3mm) |
2.00″ (50.5mm) |
1.71″ (43.5mm) |
| 2″ | 1.88″ (47.8mm) |
2.52″ (64mm) |
2.22″ (56.5mm) |
| 2-1/2″ | 2.39″ (60.5mm) |
3.05″ (77.5mm) |
2.78″ (70.5mm) |
| 3″ | 2.88″ (73.1mm) |
3.58″ (91mm) |
3.29″ (83.5mm) |
| 4″ | 3.85″ (97.7mm) |
4.67″ (119mm) |
4.33″ (110mm) |
| 5″ | 4.86″ (123.5mm) |
5.68″ (144.2mm) |
5.29″ (134.3mm) |
| 6″ | 5.80″ (147.2mm) |
6.57″ (167mm) |
6.16″ (156.5mm) |
| 8″ | 7.80″ (198mm) |
8.56″ (217.4mm) |
8.15″ (207mm) |
| 10″ | 9.74″ (247.4mm) |
10.55″ (268mm) |
10.12″ (257mm) |
|
12″ Flanged |
11.74″ (298.2mm) |
12.66″ (321.6mm) |
12.17″ (309mm) |
